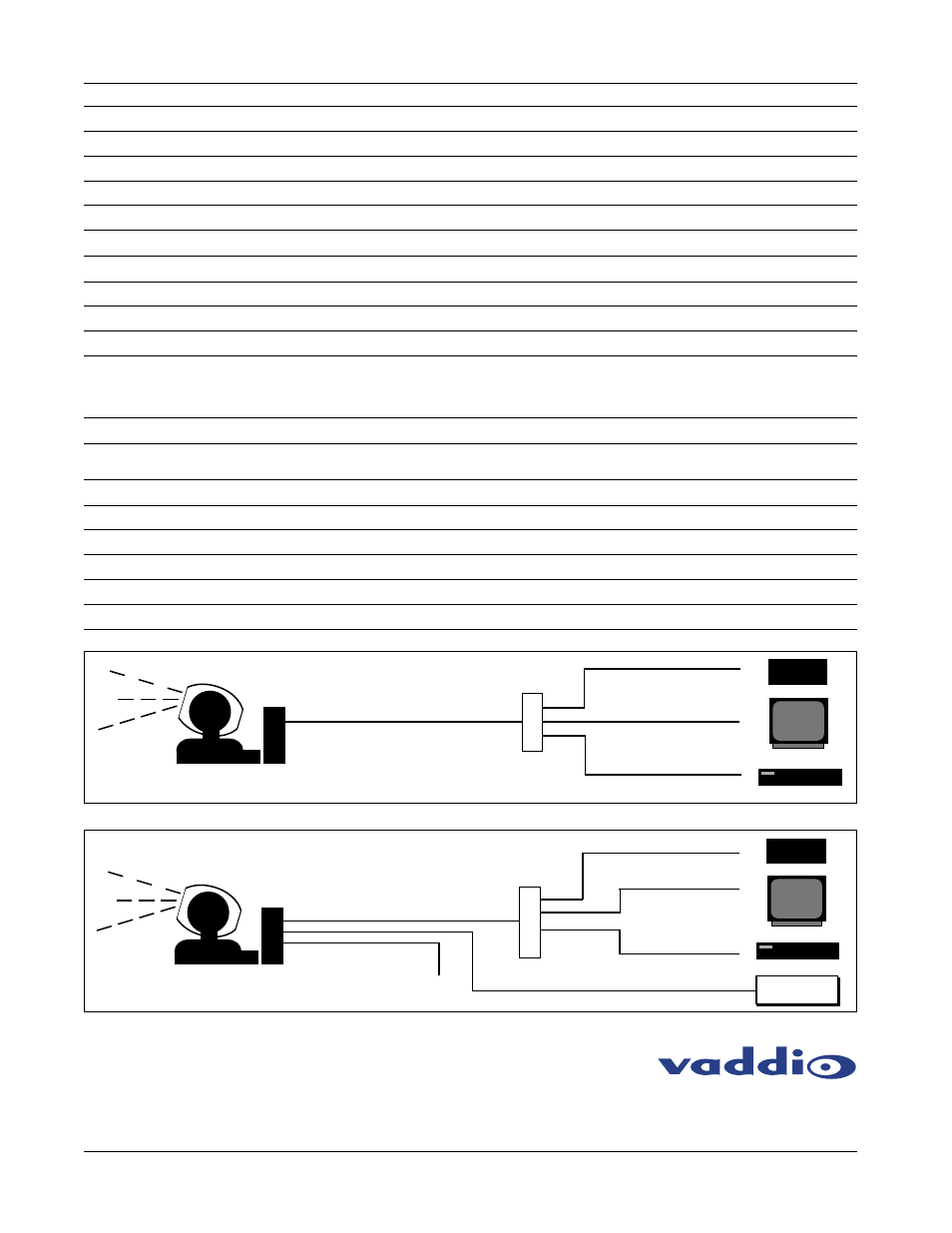

Figure 1 – EZCamera cable system with a quick-connect box.

Figure 2 – EZCamera cable system with a quick-connect box

and RS-232 Control.

Technical Specifications

Image Sensor

1/4 Type Super HAD CCD

Effective Pixels

768(H) x 494(V)

Signaling System

NTSC and PAL

Horizontal Resolution

470 TV Lines (wide end)

Lens

10X Optical Zoom; 40X with Digital Zoom (f=3.1 to 31; F= 1.8 to 2.9)

Horizontal Angle of View

6.6 to 65 Degrees

Minimum Object Distance

100mm (wide end); 600mm (tele end)

Minimum Illumination

3.5 lx (F1.8)

Auto Exposure

Auto/Manual/Priority AE; Exposure Compensation; Back Light Compensation

Shutter Speed

1/4 to 1/10,000 s

White Balance

Auto, ATW, Manual, One-Push, 3200K, 5800K

Effects

Mirror Image, Still Image on Field Memory, Pastel Image, Negative/Positive Reversal, Sepia Image,
Monochrome Image, Enhanced Contrast, Mosaic Image, Vertical Stretch, Horizontal Stretch,
Motion Image on Still Image, Continuous Still Image, Motion Images on Binaried Still Image, After-
Image Lag of Moving Object

S/N Ratio

>50dB

Pan/Tilt

Horizontal +/- 100 Degrees (Max Speed 300 Degrees/s), Vertical +/- 25 Degrees (Max Speed 125
Degrees/s), in 0.07 Degrees Increments

Video Output

Composite and Y/C

Power Supply1

8 VDC PowerRite

Power Supply (optional)

24 VDC PowerRite (available as an accessory - some restrictions apply)

Operating Temperature

32 to 40˚ F (0 to 40˚ C)

Dimensions

Depth: 5 1/4”/132mm; Width: 4 1/2”/113mm; Height:4 3/4”/120mm

Weight

1lb14oz/860g

▲

▲▲

POWER

COMPOSITE VIDEO

S-VIDEO

Monitor

QUICK-CONNECT

BOX

Codec

PowerRite

Power Supply

CAMERA SHOE
INTERFACE

EVI-D100

CAT. 5 CABLE

RS-232

COMPOSITE VIDEO

CAT. 5 CABLE TO SECOND CAMERA

QUICK-CONNECT

BOX

CAMERA

SHOE

INTERFACE
