Ridge Tool Company/Elyria, Ohio, U.S.A.
16
Drain Cleaning Machine K-40
Ref. Catalog
No. No. Description
— 67962 A-39PF AUTOFEED ®
1 68937 Pan Head Screw #10-24 (4)
2 32107 Pivot Pin
3 67992 Flat Thrust Washer (3)
4 67997 Roller Bearing (3)
5 39830 Socket Head Cap Screw (3)
6 67967 AUTOFEED ® Body
Ref. Catalog
No. No. Description
7† 54007 Roll Pin 1 /
4
″ x 3 /
8
″
8 68017 Top Roller Holder
9 68012 Return Spring
10 68007 Top Adjustment Screw
11 68002 Feed Actuator Lever
12 76597 Top Roller Holder Assembly
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.

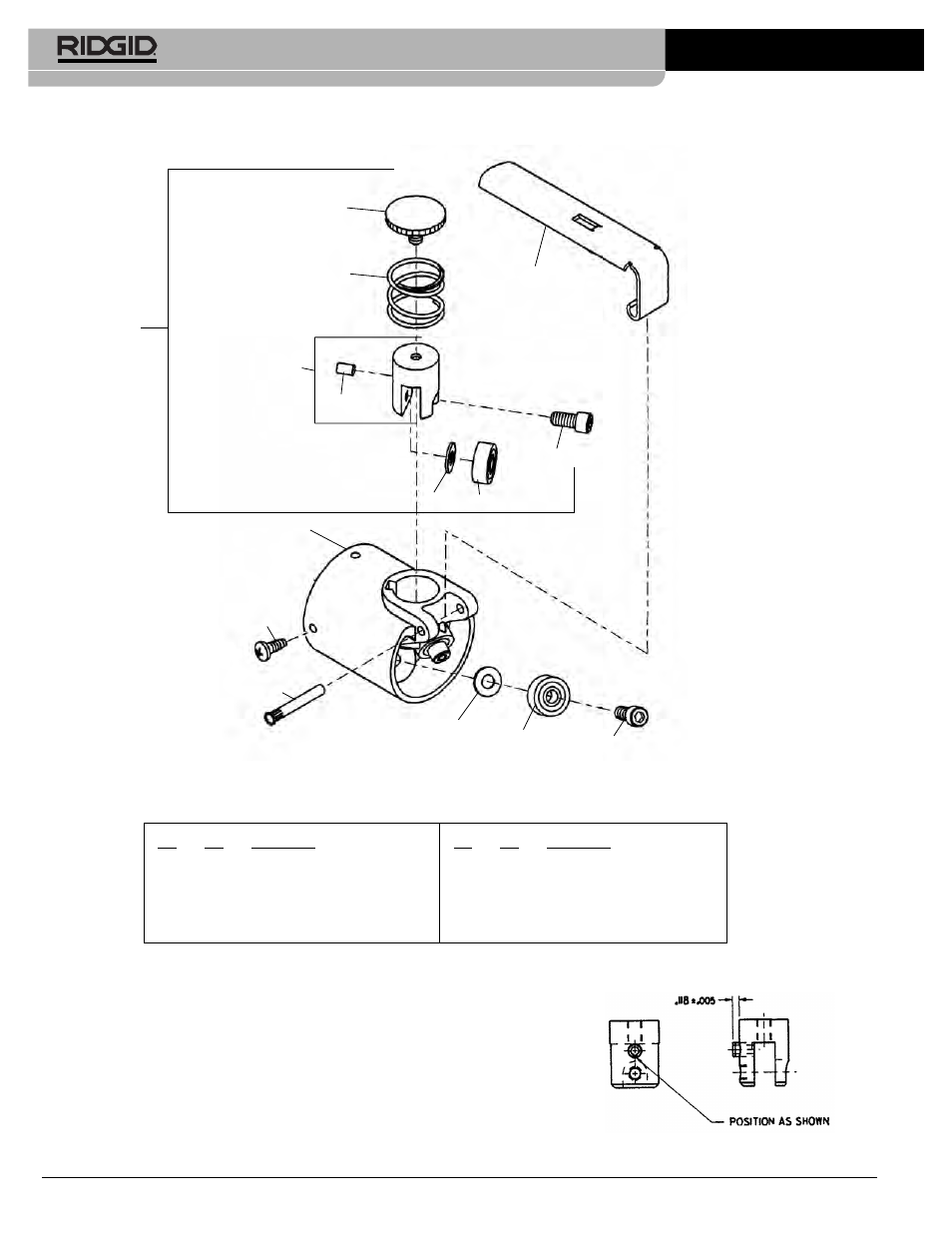

AUTOFEED ® Assembly
2
4 5
8
7†
6
3
5
3
4
11
10
9
1
† – See Service Notes
Service Notes:
1) Apply Texclad #2 grease to the following areas:
A) Top surface and threads of item #15 (Top Adjustment Screw)
B) Outside Dia. of item #13 (Top Roller Holder)
2) Locate slot in Roll Pin item #12 at six-o’clock position and press
to dimension shown
12
