Ridge Tool Company/Elyria, Ohio, U.S.A.
25
Drain Cleaning Machine K-60SP
Ref. Catalog
No. No. Description
1 65727 Steel Insert
2† 65722 Sleeve Bearing
3 65712 Shaft w/Rack
4 65717 Extension Spring (2)
5 65707 Spring Plate
6 65702 Pulley Assembly
7 66897 Drive Cone
Ref. Catalog
No. No. Description
8 65697 Baffle
9 61110 10 - 32 x 3 /
8
″ Screw (2)
10 65692 Jawset Cover
11 65687 Clutch Jaw
12 65682 Idler Cone
13† 65677 Bearing (2)
14 65672 Adjustment Cap
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
† – Apply Loctite ® #642 to O.D of Sleeve Bearing (Ref. #2).
† – Apply Loctite ® #642 to I.D. of Bearing (Ref. #13) prior to assembly into Shaft w/Rack (Ref. #3) and Idler Cone
(Ref. #12).
1
2†
3
4
5
6
13†
14
12
11
10
9
8

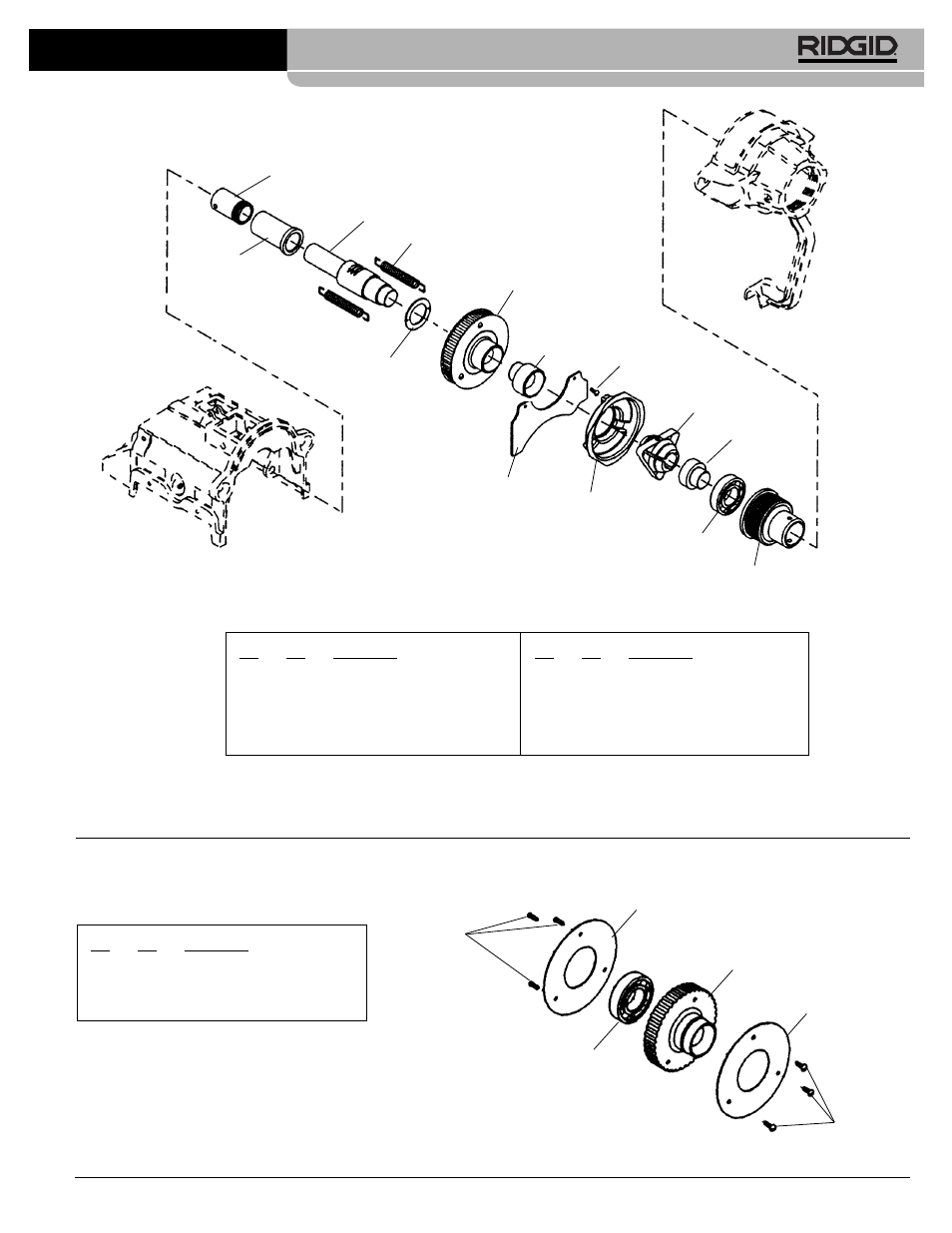

Main Drive Components
7
Ref. Catalog
No. No. Description
— 65702 Pulley Assembly
1 61110 10 - 32 x 3 /
8
″ Screw (6)
2 66877 Pulley Flange (2)
3† 65677 Bearing (2)
4 66902 Pulley
Pulley Assembly
1
2
3†
4
2
1
† – Apply Loctite ® #642 to I.D. of Bearing (Ref. #3) prior to assembly
into Shaft w/Rack (Ref. #3) and Idler Cone (Ref. #12).
