RIDGID K-50 Sectional Cable Machine - Manual (Page 2)

Ridge Tool Company/Elyria, Ohio, U.S.A.
23

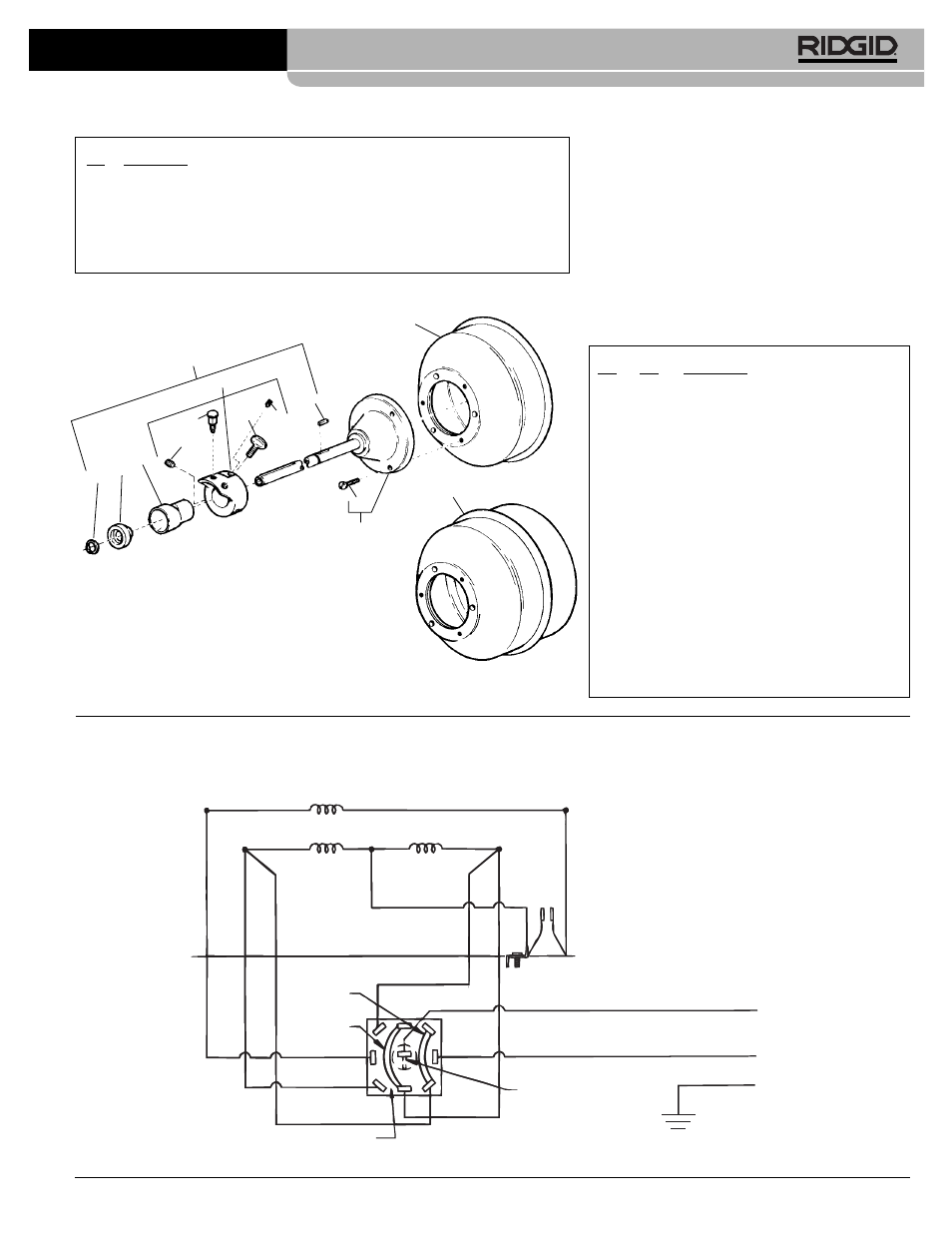

Drain Cleaning Machine K-50
Cable Adapters
Cable
No. Description
59250 A-17-A Cable Adapter (Includes C-1 Cable - 5 /
16
″ x 25′ long with Bulb Auger)
59245 A-17-A Cable Adapter - Less Cable
59255 A-17-B Cable Adapter (Includes C-5 Cable - 3 /
8
″ x 35′ long with Bulb Auger)
59260 A-17-B Cable Adapter - Less Cable
59265 A-17-C Cable Adapter (Includes C-6 Cable - 3 /
8
″ x 35′ long with Male Coupling)
59260 A-17-C Cable Adapter - Less Cable
92095 A-17-D Cable Adapter (Includes C-21 Cable - 5 /
16
″ x 50′ long with Bulb Auger)
92100 A-17-E Cable Adapter (Includes C-22 Cable - 5 /
16
″ x 50′ long with Drop Head Auger)
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
11
Ref. Catalog
No. No. Description
1 61540 Screw (3)
2 61550 Screw
3 61555 Retaining Ring
4 79935 Thumb Screw (2)
5 61565 Key
6 61735 Brake Cone (Male)
7 59510 Plunger Pin
8 59630 Brake Cone (Female)
9 59760 Adapter Bracket
(Incl. Ref. Nos. 7, 4, 2 and 11)
10 59790 Adapter Bracket Assembly
(Incl. Ref. Nos. 3, 5, 6, 8 and 9)
11 60025 Screw (2)
12 60325 Tube and Flange
with Screws
(
5 /
16
″ Cable Adapter)
(Incl. Ref. No. 1)
13 60335 Tube and Flange
with Screws
(
3 /
8
″ Cable Adapter)
(Incl. Ref. No. 1)
14 63255 Cable Container
(
5 /
16
″ x 25′ Cable Only)
15 63250 Cable Container
(
3 /
8
″ x 35′ and 5 /
16
″ x 50′ Cable)
K-50 Motor Wiring Diagram 120V 50/60Hz
AUX.
1/2 MAIN
WHT
4 5
RED
BLU
JUMPER
BRN
JUMPER
1/2 MAIN
GREEN/YEL
KEYWAY IN
STEM OF
TOGGLE
SWITCH
BLACK
WHITE
BLK
BLU BLU
BRN
YEL
REAR VIEW
WHT
TO MOTOR
GROUND
