10/14 Rev A 159217 9

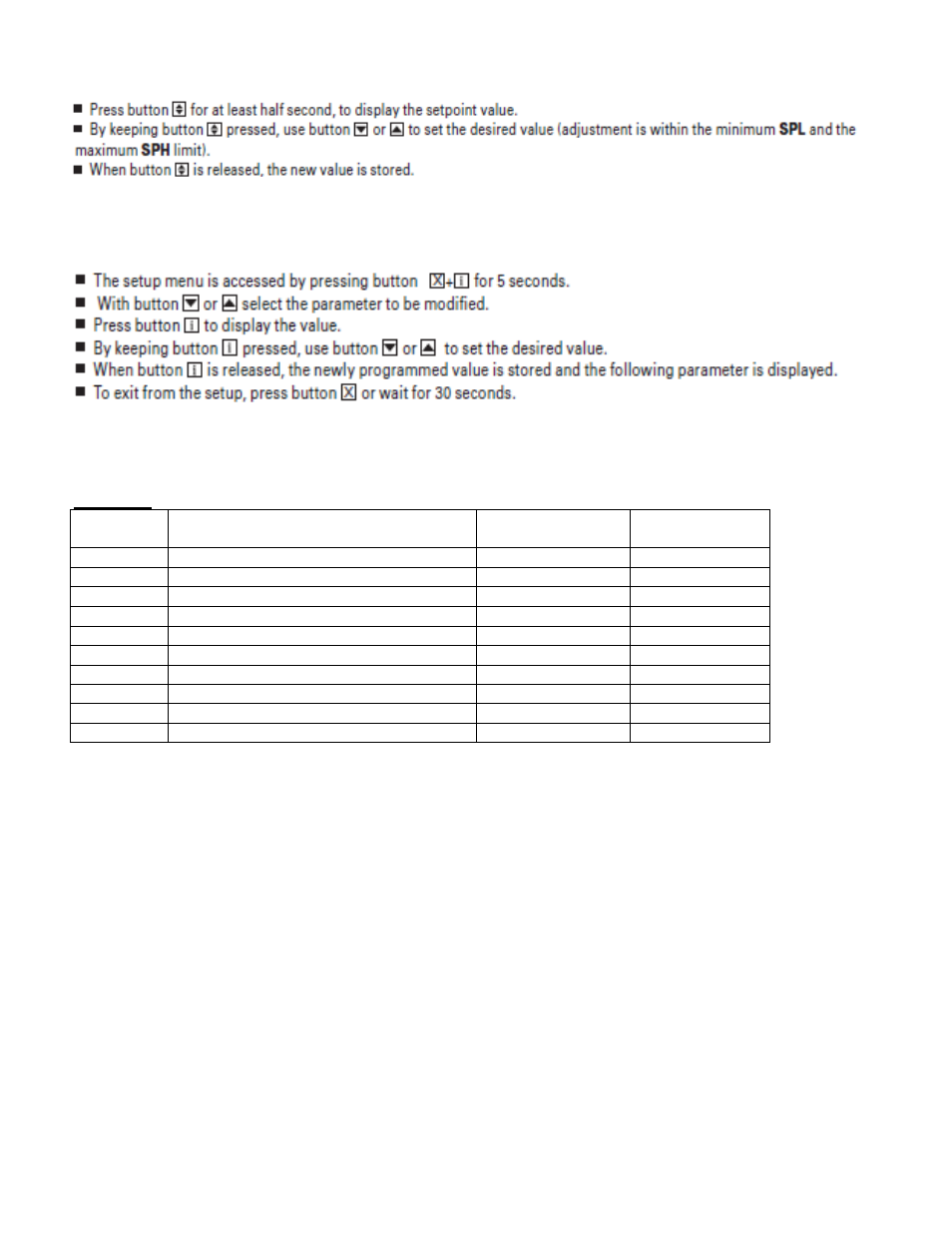

HOW TO CHANGE THE SETPOINT
HOW TO CHANGE a parameter value
LIST OF PARAMETERS
TABLE 1
Display
Symbol
Parameters
Range
Factory
Setting
SP Temperature Set Point SPL…SPH -10°F or -15°F
HYS Temperature Differential 1 to 255°F 10°
SPL Minimum Temperature limit setpoint - 50…SPH
-15°F
SPH Maximum Temperature limit setpoint SPH…120° 30°F
AHA High Temperature alarm - 50…120°
45°F
ALA Low Temperature Alarm 50…120° -30F
ATD Temperature Alarm Delay 0…120min 30min
DFR Number of Defrost Cycle per 24hr 0…24 4/day
DLI Defrost Termination Temperature - 50…120°
55°F
DTO Maximum Defrost Duration 1…120min 30min
ELECTRICAL CONNECTIONS
The controller is provided with a screw terminal block to connect cables with a cross section up to 2,5 mm
2
. Before
connecting cables make sure the power supply complies with th e control’s requirements. Separate the probe cables
from the power supply cables, and the outputs and the power connections. Do not exceed the maximum current
allowed on each relay. In case of heavier loads use a suitable external relay or contactor.
PROBE CONNECTIONS
The probes shall be mounted with the bulb upwards to prevent damage due to casual liquid infiltration. It is
recommended to place the thermostat probe away from air streams to correctly measure the average room
temperature. Place the defrost termination probe among the evaporator fins in the coldest place, where most ice is
formed, far from heaters or from the warmest place during defrost to prevent premature defrost termination.
