Service & Parts Manual original Instructions
Part Number 32Z3814 US
Issue 1
47
ELEC
TRIC
AL
CIR
CUIT
S
14
15
16
17
18
19
20
21
22
23
24
25
26
12
11
10
9
8
7
6
5
4
3
2
1
13

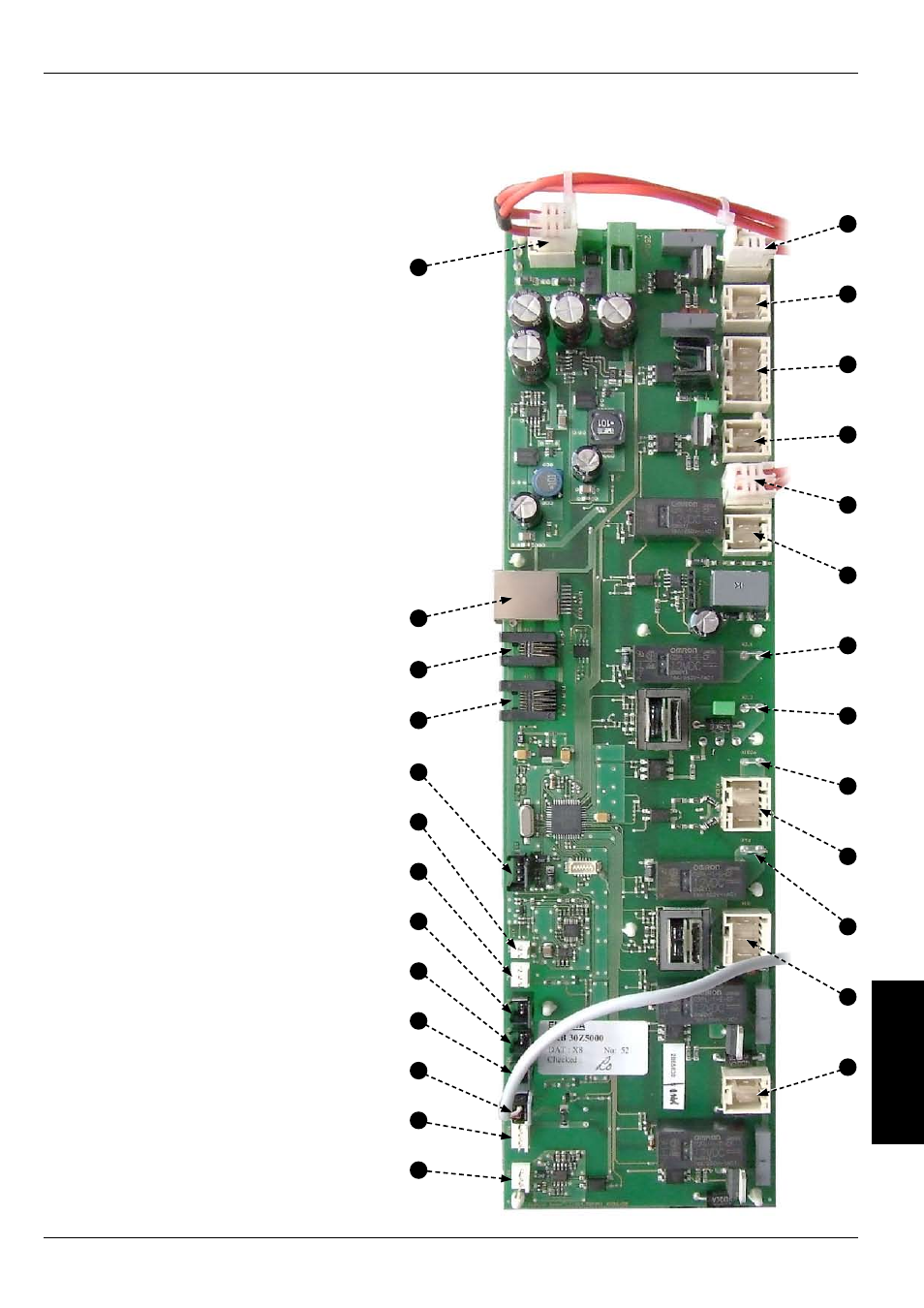

SRB Terminal Locations: 23.4
X3 - Not used. 1
X101 - Voltage Selection Relay coil feeds. 2
X18b - Air intake Filter Reed Switch. 3
X18e - Right Magnetron Overheat Thermostat. 4
X18d - Left Magnetron Overheat Thermostat. 5
X18c - Cavity Overheat Thermostat. 6
X18a - On/Off Switch. 7
X14 - Cavity Temperature Thermocouple. 8
X5 - Fan RPM Input (not used). 9
X13 - P Bus, Ethernet Port. 10
X12 - C Bus, Development PC Port. 11
X11 - P/C Bus, BTS Cable. 12
X1 - 24V supply from Low Voltage Transformer. 13
X8 - Cooling Fan. 14
X17 - Mains Output, Convection Fan. 15
X20 - Microwave Stirrer motor. 16
X9 - Not Used. 17
X103.1 - Mains Output to Low Voltage 18
Transformer.
X103 - Mains Input, Live & Neutral. 19
X2.1 - Mains Input, Live for Heaters. 20
X2.2 - Mains Output, Live to Heaters. 21
X102a - Mains Input, Neutral for Magnetron 22
Transformers & Monitor Door Switch.
X102b - Mains Output, Neutral to Magnetron 23
Transformers & Monitor Door Switch.
X4a - Door Switch signal from Secondary Door 24
Switch (Live for Magnetron Transformers).
X10 - Connector Block for door switches. 25
X4b - Live for Magnetron Transformers. 26
