Ersa solder fume extractions – silent and efficient as never before!
Ersa EASY ARM 1 and EASY ARM 2
Ersa EASY ARM 1 Ersa EASY ARM 2
Dimensions (L x W x H), incl. inlet: 255 mm x 255 mm x 470 mm 255 mm x 255 mm x 470 mm
Weight: 7.5 kg 15 kg
Volume flow (with new filter): 1 x 110 m³/h 2 x 110 m³/h
Volume flow of blower: 1 x 130 m³/h 2 x 130 m³/h
Vacuum: 1 x 1,800 Pa 2 x 1,800 Pa
Noise level: 50 dB (A) 50 dB (A)
Filter class
Prefilter (mat):
Combined filter:
F7
H13 F7
H13
Separation degree (HEPA)
Prefilter 1 – 10 µm particles:
Combined filter
< 1 µm particles:
80 % – 90 %
99.95 % 80 % – 90 %
99.95 %
Filter area combined filter: 2.2 m² 2.2 m²
Gas filter: activated carbon activated carbon
Life time combined filter:
(hand soldering) 1,500 h 1,500 h
Electrical data: 50 W, 100 – 240 V AC, 50/60 Hz 100 W, 100 – 240 V AC, 50/60 Hz
Fuse: 6.3 A 6.3 A
Connections: interface to i-CON soldering
stations or standby switch interface to i-CON soldering
stations or standby switch
Order number 0CA10-001 0CA10-002

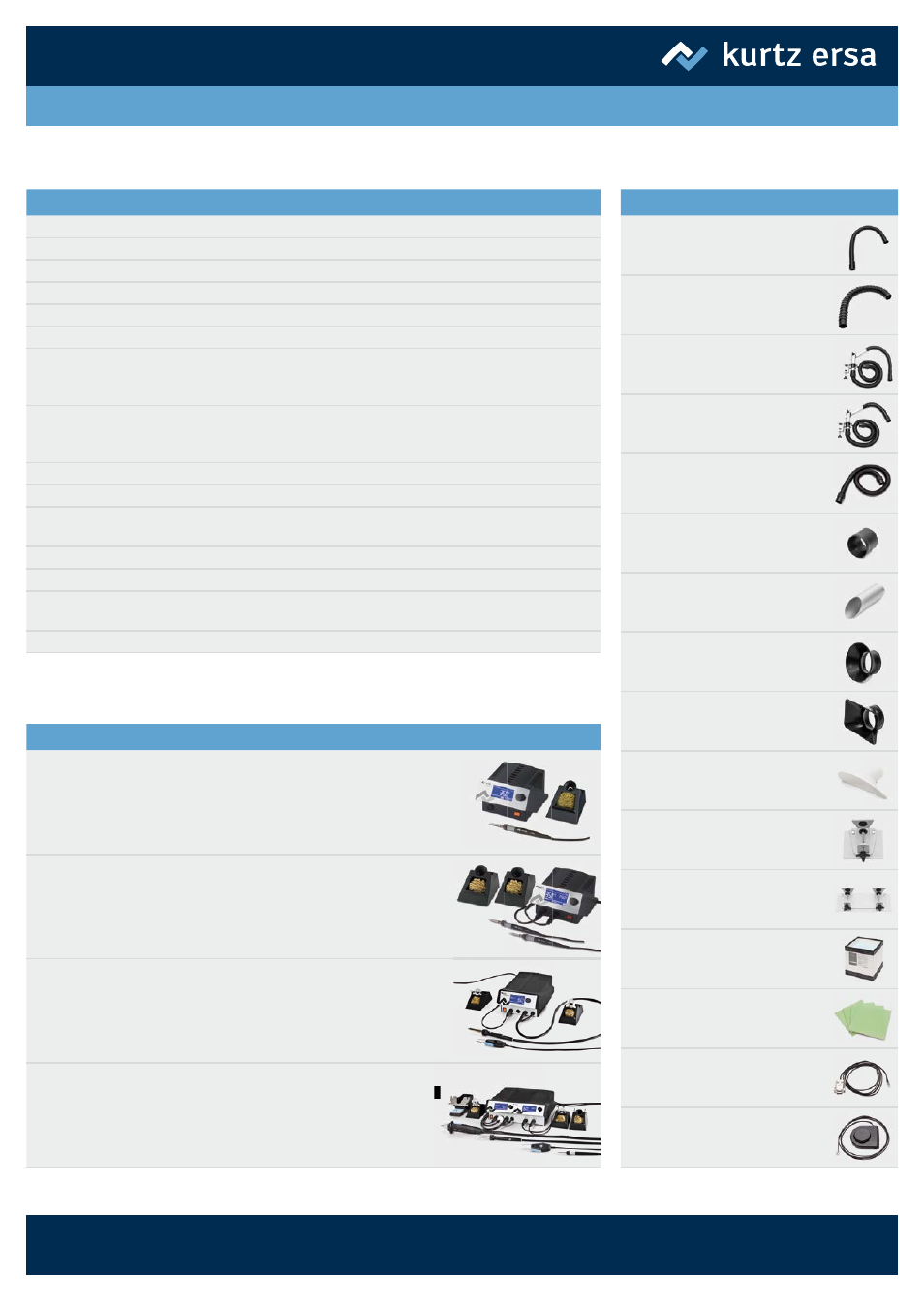

Technical data Accessories and spare parts
Ord. no. Description
0CA10-4002 extraction arm, 1,000 mm
Highflex, direct mount at
the filter unit
0CA10-4003 extraction arm, 900 mm
Omniflex, direct mount at
the filter unit
0CA10-4001 hinged extraction arm,
500 mm Highflex and table
clamp, incl. connecting hose
0CA10-4004 hinged extraction arm,
600 mm Omniflex and table
clamp, incl. connecting hose
0CA10-2002 connecting hose
length 2,000 mm
0CA10-9006 nozzle coupling Omniflex
0CA10-5001 * extraction nozzle,
ø 60 mm, metallic,
antistatic
0CA10-5002 extraction nozzle, round,
ø 118 mm, antistatic
0CA10-5003 extraction nozzle, rectan-
gular, 155 mm x 90 mm,
antistatic
0CA10-5004 * extraction nozzle Plus,
230 mm x 85 mm,
transparent
3CA10-9001 table clamp for
EASY ARM 1
3CA10-9002 table clamp for
EASY ARM 2
0CA10-1001 combined filter,
particle filter H13, gas
filter activated carbon
0CA10-
1002/04 prefilter,
particle filter F7
(4 pcs./packing unit)
3CA10-2003 interface cable to connect
i-CON1 C/2 C, i-CON VARIO
2/4 with fume extraction
3CA10-2004 standby switch
266643 - 05/2014 | subject to changes | © by Ersa GmbH
Ersa soldering stations with interface (option)
Order number Description
0IC1100A0C Ersa i-CON1 C
electronically temperature-controlled soldering station
with interface, antistatic, 230/24 V, 80 W
0IC2000A0C Ersa i-CON2 C
electronically temperature-controlled double iron soldering
station with interface, antistatic, 230/24 V, 150 W
0ICV2000A
(all versions) Ersa i-CON VARIO 2
multi-channel soldering and desoldering station with interface,
i-TOOL AIR S hot air iron and i-TOOL soldering iron for classical
soldering applications or the new CHIP TOOL VARIO desoldering
tweezers, antistatic, 230/24 V, 200 W
0ICV4000A
(all versions) Ersa i-CON VARIO 4
multi-channel soldering and desoldering station for the operation
of up to 4 tools (i-TOOL AIR S hot air iron, i-TOOL soldering iron,
CHIP TOOL VARIO desoldering tweezers and X-TOOL
desoldering iron), with interface, antistatic, 230/24 V, 500 W
* In combination with an Omniflex arm, nozzle coupling
Omniflex (0CA10-9006) is required.
(only with extraction arms Omniflex
and extraction nozzles 5001/5004)
