3'/)
‘
‘
3'/)
‘
‘
3'/)
‘
‘
0,2
0,4
Ш 4,5
Ш 5,2
26,2
9
23
&'/)
‘
&'/)/
‘
&'/)
‘
5,2
Ш
30,6
Ш 0,4
45° 9,5
6'/)
‘
ƒ
‘
$'/)
‘
$'/)
‘
:'/)
‘
Ersa GmbH
Leonhard-Karl-Str. 24
97877 Wertheim
Germany Phone +49 9342 800-0
Fax +49 9342 800-127
[email protected]
www.ersa.com France
[email protected] America
[email protected] China
[email protected] Korea
[email protected]
Visit www.ersa.com for more information!
072012 • subject to changes • © by Ersa GmbH

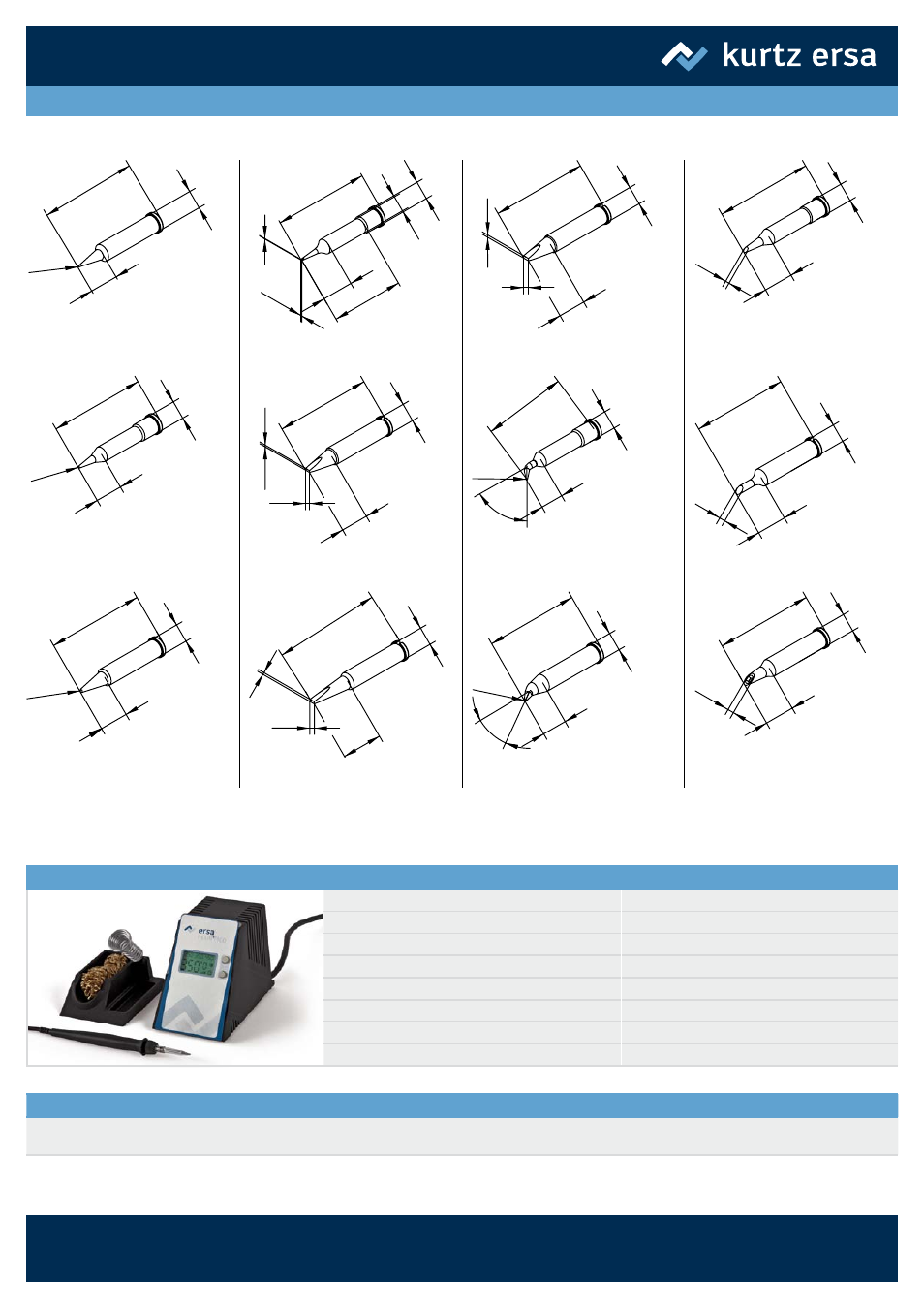

0102PDLF02
pencil point, 0.2 mm ø
0102PDLF06
pencil point, 0.6 mm ø
0102PDLF10
pencil point, 1.0 mm ø
0102CDLF04
chisel-shaped, 0.4 mm
0102CDLF16
chisel-shaped, 1.6 mm
0102CDLF18L
chisel-shaped, extended, 1.8 mm
0102CDLF20
chisel-shaped, 2.0 mm
0102SDLF04
bent, 0.4 mm ø
0102SDLF06
bent, 0.6 mm ø
0102ADLF13
angled face, 1.5 mm
0102ADLF20
angled face, 2.0 mm
0102WDLF23
PowerWell concave portion, 1.6 mm ø
Technical Data Ersa i-CON PICO Soldering Station
Dimensions (L x W x H) 145 x 80 x 103 mm
Voltage 220 – 240 VAC
Max. power 80 W
Temperature range 150 – 450 °C
Connectable tools i-TOOL PICO
Max. power i-TOOL PICO 80 W
Heating time approx. 9 s
Antistatic design no
Order Number Description
0IC1300 i-CON PICO soldering station, complete with i-TOOL PICO (0130CDK) soldering iron with chisel-shaped tip (0102CDLF16) 1.6 mm
and tool holder.
Powerful, cost-effective and small footprint of only 145 x 80 mm
Ersa i-CON PICO
