IR/PL 650 XL
177437
-0409
•
subject
to
chang
es
•
©
by
ERSA

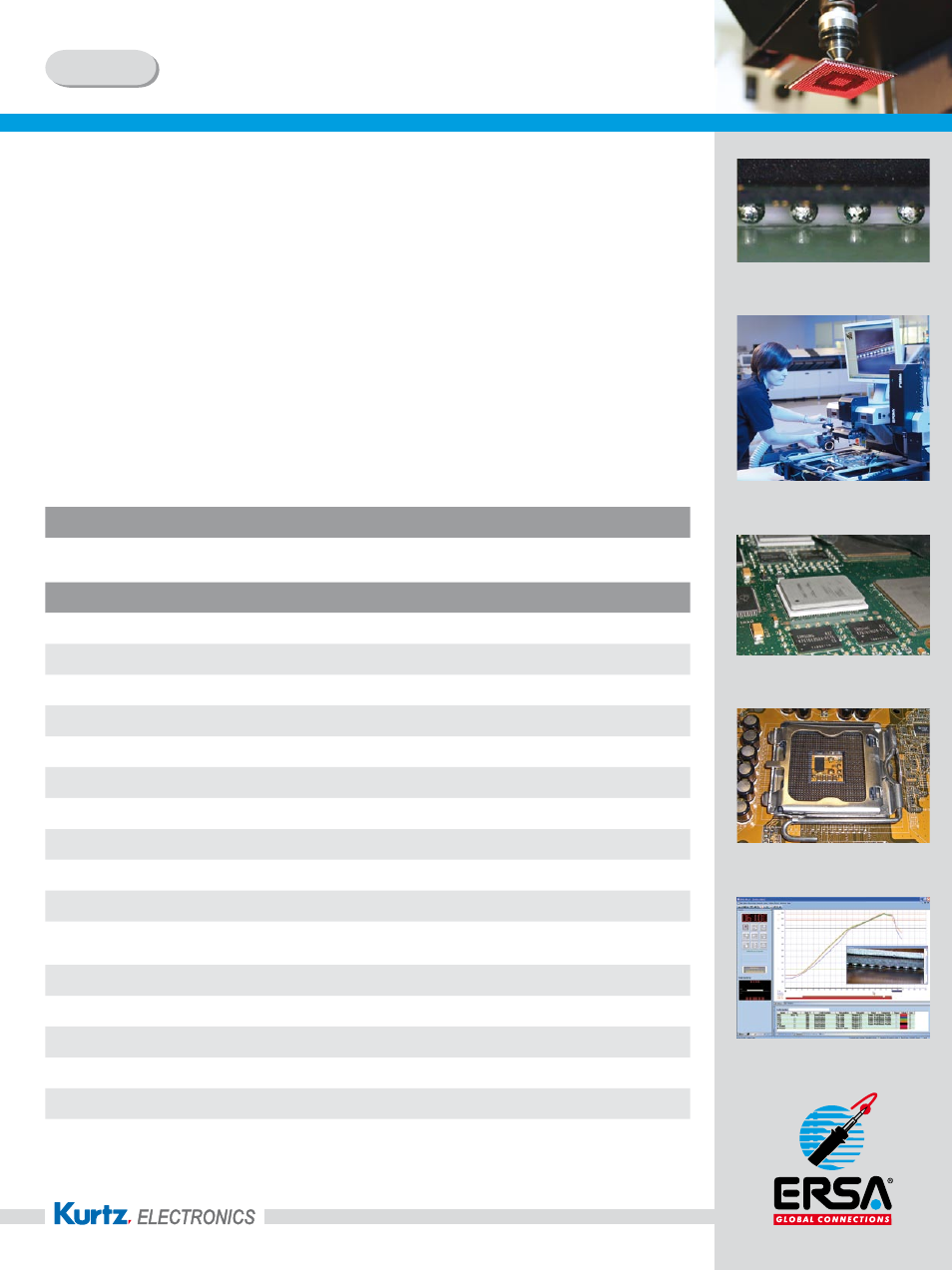

Hundreds of IR/PL 650 systems have
proven themselves as easy to operate
Heavy mass components on heavy
mass, big boards can be reworked
IRSoft software is ERSA's user-
friendly rework software platform
The RPC camera visualizes the
rework process for increased safety
Metal shields, sockets and
components are easily handled
The large PCB table design guarantees that all
shapes of boards are carried in an optimal
manner. Top- and bottom side support rails are
easy to insert and adjustable to the actual
rework task within minutes. The table includes
a 45° butterfly mechanism to lift the entire PCB
while it is inserted in the holder and thus pro-
vides easy access to the bottom side. The
operator can easily attach thermo probes on
the bottom side, position the support pins or
carry out other “down under” operations like
shielding heat sensitive components.
Finally, the IR/PL 650 XL has taken a com-
pletely new approach to cooling as the larger
PCBs require a higher cooling volume. Similar
to ERSA’s wave soldering machines, this
rework machine has a new & highly efficient
compressed air cooling system.
Using an air tube which extends the entire
length of the bottom side heater, laminar flow
cooling takes place via very fine air outlets.
The air flow rate can be adjusted for a faster or
slower cooling gradient.
The bottom line is simple: investing in large
board rework equipment specifically designed
for the toughest applications will save money
in rework scrap reduction. The ERSA IR/PL
650 XL is currently the world’s most powerful
and flexible big board rework system!
Features for the IR, PL and RPC modules are identical to the well known IR / PL 650.
Details as well as recommended accessories can be found online at
www.ersa.com.
Ordering information:
0IRPL650A-XL Semiautomatic IR Rework System
Technical Data:
Dimensions L x W x H: 1,900 x 840 x 1,490 mm (~75 x 33 x 39 inch)
Working height (PCB level): 950 mm +/- 50 mm, adjustable (~37 inch)
Working depth: 550 mm (front to pipette position) (~22 inch)
Power supply: 3 x 400 V N/PE, 50/60Hz, 16 A
Compressed air supply: 6 to 10 bar (oil free), ¼ inch quick connector
Installed heating power: 9,200 W
Top heater size: 60 x 120 mm (2.5 x 5 inch), 4 separate heating zones
Bottom heater size: 500 x 625 mm (~20 x 24 inch), 5 separate heating zones
Distance top heater to PCB: 60 mm (2.5 inch)
Distance bottom heater to PCB: 30 mm (1.2 inch)
Temperature sensor channels: 1 x infrared sensor,
4 x k-type thermocouple (potential free)
Maximum component size PL: 60 x 60 mm (2.5 x 2.5 inch)
Placement accuracy: +/- 0.025 mm
Placement force: 1.0 – 3.0 N (vacuum switching point)
Control: via PC with IRSoft, USB 2.0
Operating Systems: Windows XP ® or Windows Vista ®
