Optical inspection system for the hidden solder joints of BGAs, SMDs & THTs
ERSASCOPE 1

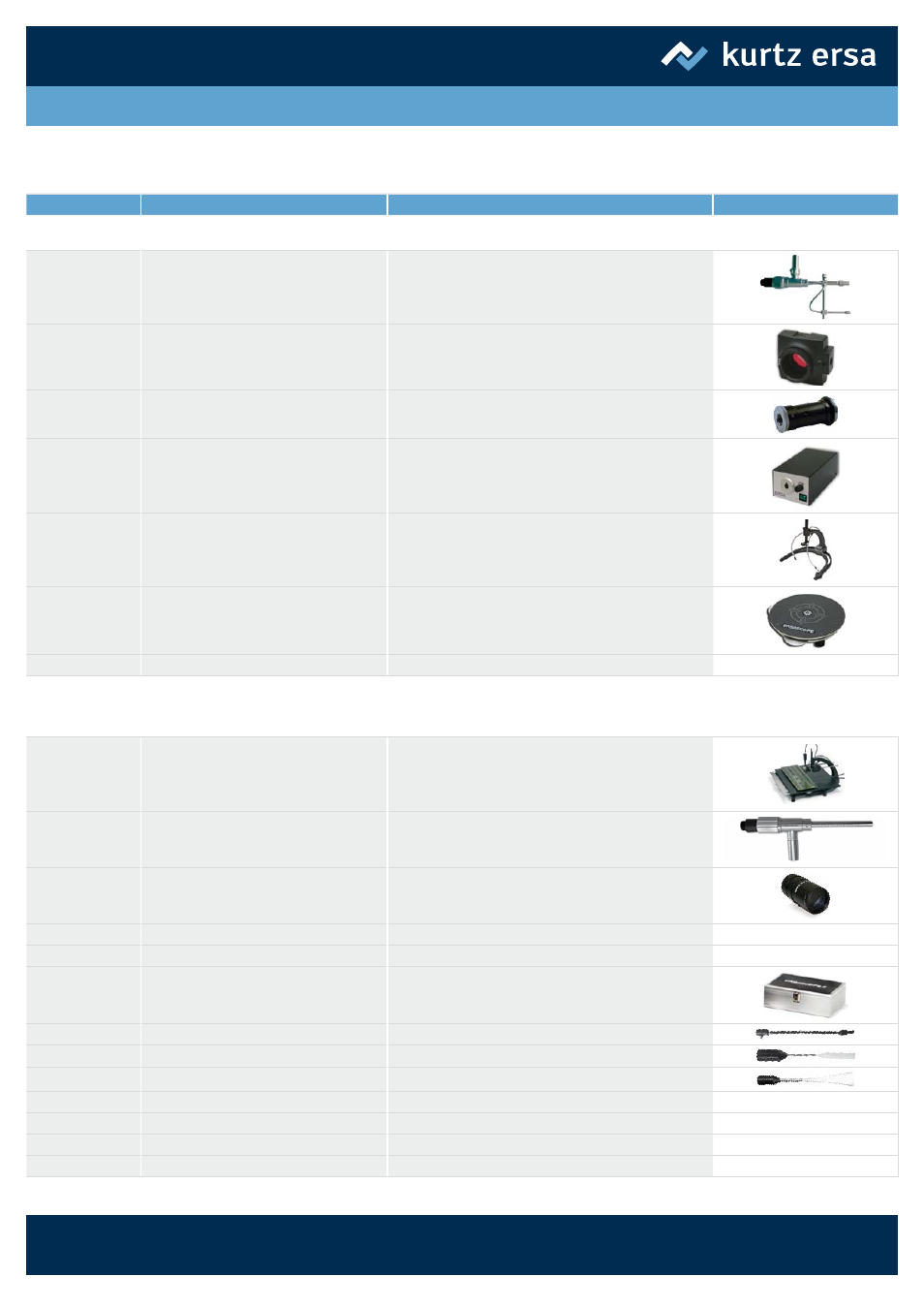

ERSASCOPE 1 ordering information and technical data
Part Number Description Technical Data Part
0VSSC070 ERSASCOPE 1 System consisting of:
0VSSE100 ERSASCOPE 1
Endoscope with integrated lens and
fibre optic system focus ring & adjustable back light
footprint 1.5 x 4.5 mm
magnification up to 400x*
typical inspection gap ~300 µm
0VSCA1225 Digital USB Camera
color inspection camera digital (USB 2.0)
manual or auto white balance
1/3” CMOS chip
0VSTV036 TV-Adapter
connects optical carrier to CCD camera 60 mm focal length
C-Mount type
0VSLS070 Halogen light source
adjustable (W x H x D): 130 x 55 x 235 mm
220 V – 240 V~, 50 Hz, 45 W or
115 V – 127 V~, 60 Hz, 45 W
weight: ~1.8 kg
0VSST210 ERSASCOPE stand
with z-axis micrometer adjustment; inte-
grated fibre optics & camera cables W x H x D: ~500 x 400 x 520 mm
total weight ~5 kg
surface: antistatic
includes 1000 mm coated fibre optic cable with gooseneck
0VSXY090 ERSASCOPE 1 table
with 4 PCB support columns X-Y movement with fine adjust wheels;
antistatic mat with grid
dimension: ø 320 mm; weight: ~3 kg
0VSID135 ImageDoc Basic 1.3 general inspection software
ERSASCOPE 1 accessories
0VSUP6XL Upgrade kit XL
upgrades the ERSASCOPE stand and table
for inspection of very large PCBs antistatic XL table (600 x 700 mm),
telescopic arm, optic holder and light cable extender
0VSMS100 MAGNISCOPE
0° static endoscope with integrated lens &
fibre optic system focus ring, magnification up to 400x*
*20” monitor, 1600 x 1200 pixel resolution, no digital zoom
0VSMZ100 MACROZOOM lens
for high magnification top view surface
inspection 70 x zoom lens
aperture adjustment: F 5.6 – 32 C
focus adjustment: 180 – 450 mm
0VSFR100 MACROZOOM ring light optical fibre ring light
0VSMZ300H MACROZOOM holder connects lens to stand
ERSASCOPE 2 Upgrade kit
upgrade the ERSASCOPE systems to
ERSASCOPE 2 for complete ordering info, contact your Ersa
representative directly
0VSLLVL200 Light fibre extension L: 200 mm
0VSLF200 Fibre light fan L: 35 mm, W: 5 mm
0VSLF300 Fibre optic light brush L: 80 mm, W: ~10 to ~35 mm
0VSRM100 Glass calibration scale 10 µm lines at 100 µm pitch
0VSLC100 Lens cleaning kit cleaning cloth, papers & liquid
0VSSH100 Dust cover antistatic textile
0VSID201 ImageDoc EXP 2.0 professional inspection software
0813 • subject to changes • © by Ersa GmbH
