Ersa Hybrid Rework System HR 600

Ersa GmbH
Leonhard-Karl-Str. 24
97877 Wertheim
Germany

Phone +49 9342 800-0
Fax +49 9342 800-127
[email protected]
www.ersa.de

France
[email protected]

America
[email protected]

China
[email protected]

Korea
[email protected]

Visit www.ersa.de for additional information!

Ordering Information:

Order Number

Description

Basic Unit:
0HR600

Ersa HR 600,
Hybrid Rework System

Options:
0HR610

Reflow Process Kamera
for HR 600, complete

0PR100

Dip & Print Station,
complete

1111 • Technical details are subject to modifications • © by Ersa GmbH 12/2011

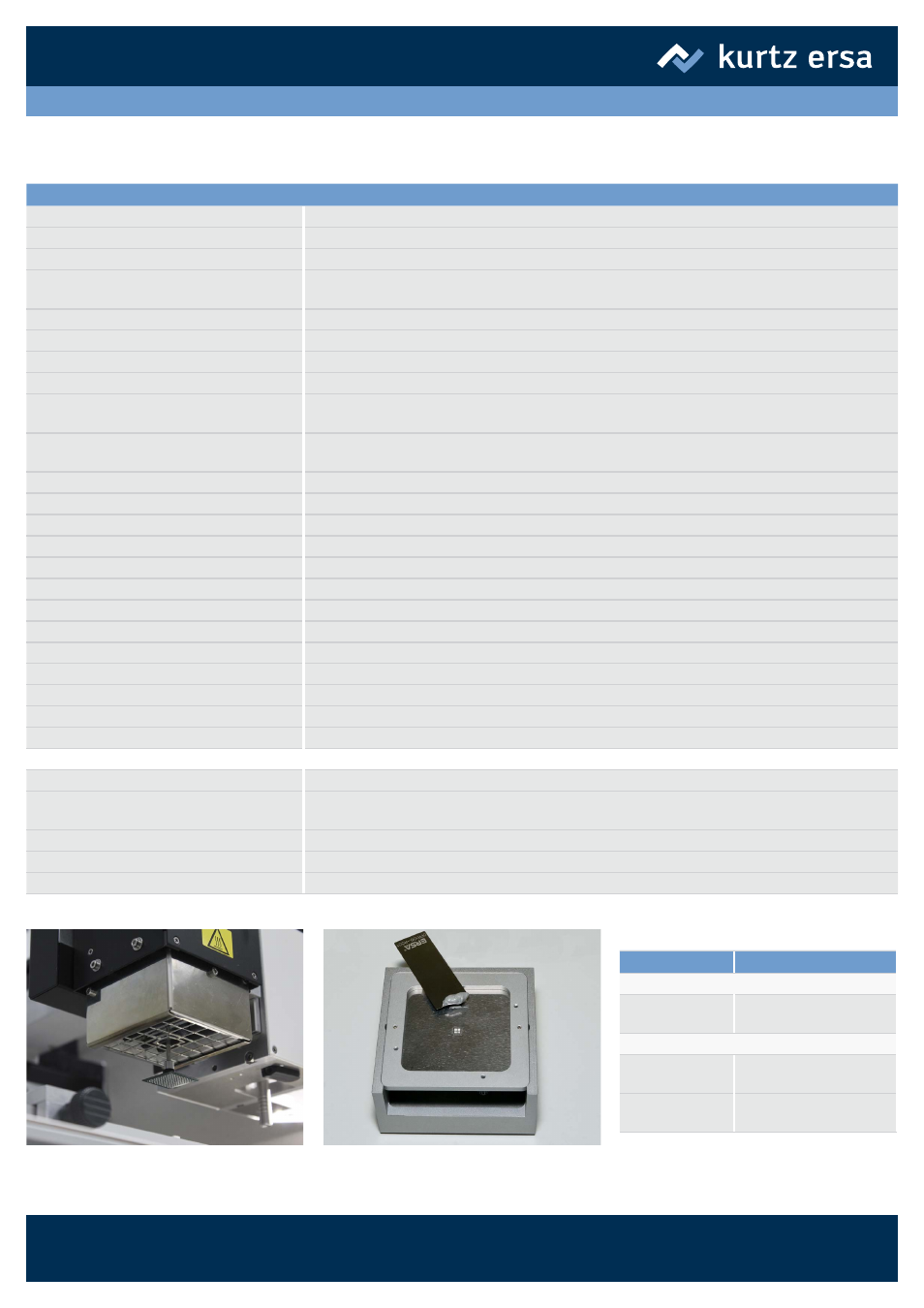

Technical Data:

Dimensions (Width x Depth x Height):

850 x 600 x 580 mm

Weight:

appr. 45 kg

Voltage:

230 V AC, single phase, 50 Hz, 16 A

Air supply:

Compressed air, 6 bar (Free of oil), ¼ Inch quick connect
(Required to generate the vacuum for the component gripper and for bottom side cooling)

Volume of air Cooling:

between 50-100 l/min (adjustable)

Bottom emitter data:

380 x 250 mm, 3 zones with each 800 W, 2400 W total

Bottom emitter technology:

medium wave, reactive, ceramic IR emitters

Upper emitter data:

60 x 60 mm, 2 zones with each 400 W, 800 W total, aperture attachment down to 10 x 10 mm

Upper emitter technology:

hybrid emitter with medium wave length IR heaters combined with convection,
motorized height adjustment, integrated motorized pipette (to hold components)

Temperature sensors:

integrated digital non-contact IR sensor (pyrometer),
two K-type thermocouple inputs, one AccuTC sensor

Board cooling:

Hybrid blower on top, compressed air pipe (400 mm) on bottom

Board dimensions:

390 x 285 (+x) mm [area exceeding (+x) is not fully preheated]

PCB thickness:

up to 6 mm

Component dimensions:

1 x 1 up to 50 x 50 mm

Usable working distance (typ.):

40 mm, adjustable

Axis system:

Precision guidance, stepper motors (X, Y, Z, Rotation)

Placement accuracy:

up to +/- 25 μm

Placement nozzles:

10 mm, 4 mm (magnetic mounting)

Placement camera, upper:

1.3 MP color camera, USB 2.0, LED illumination, dimmable

Component camera, lower:

1.3 MP black-and-white camera, USB 2.0, LED illumination, dimmable

Reflow process camera (option):

10 MP high-resolution color camera, USB 2.0, LED illumination, dimmable

Interface:

USB 2.0

Operating software:

Ersa HRSoft for Microsoft™ Windows operating system

Computer specification:

PC is not included in the scope of supply, for details, please contact ERSA.

CPU

CPU Intel Pentium 4, 3 GHz or better (recommended: Core 2 Duo)
AMD Athlon XP 64, 3000+ or better (recommended: Athlon X2)

RAM

min. 1 GB (Windows Vista™ / Windows® 7: 2 GB or more)

Graphic

ATI Radeon™ Series or NVidia® Geforce® Series, TFT screen / monitor min. 7” (better 19”)

Interface

USB 2.0 or better

Hybrid heating head with vacuum pipette

Dip & Print Station with “MLF32” stencil

Rework of Board Assemblies newly defined - Flexible, efficient, automated, reliable!
