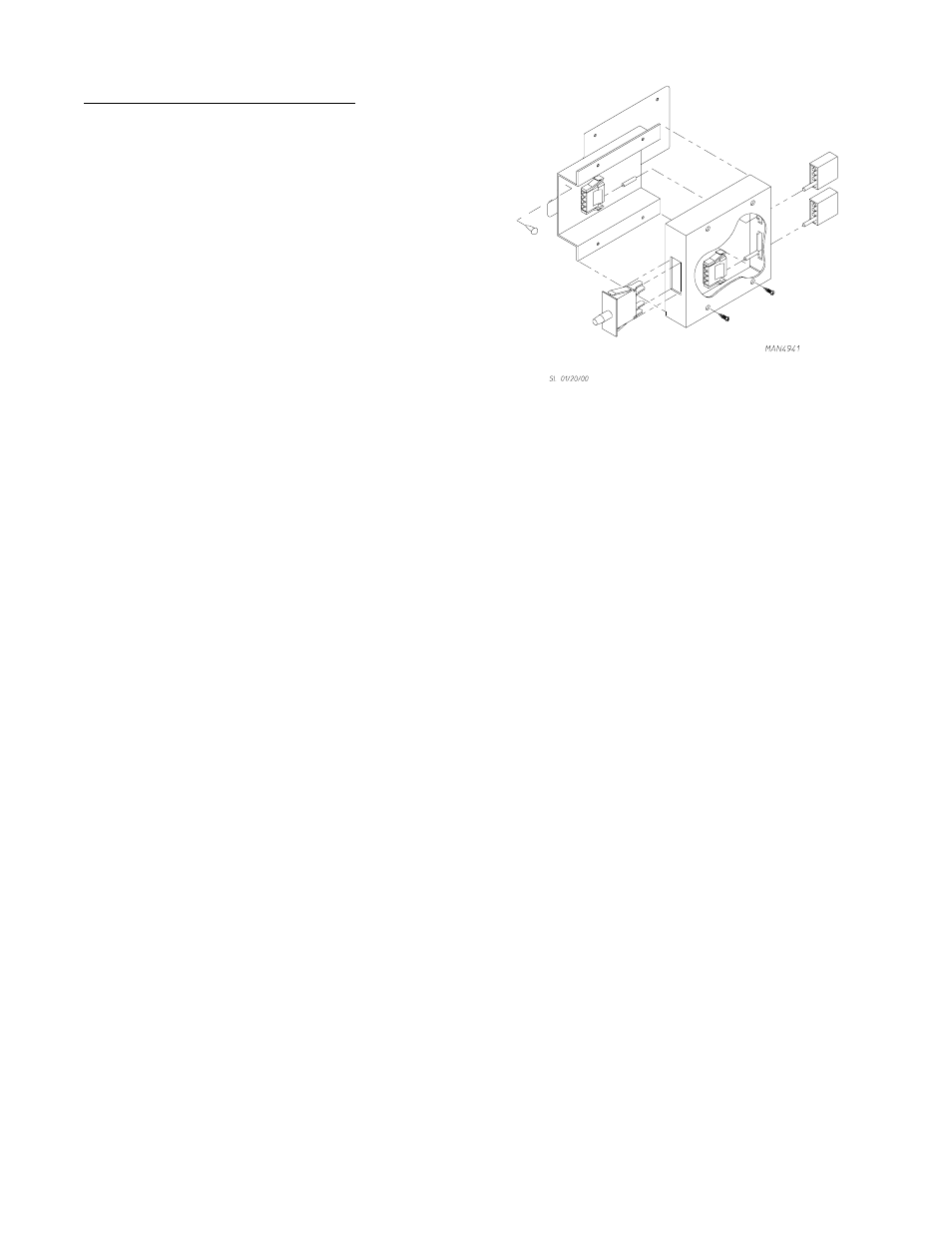

To Replace Lint Drawer Switch
1. Disconnect electrical power to the dryer.
2. Remove lint drawer and lint door.
3. Disconnect both 4-pin connectors at the rear of the
lint switch cover.
4. Remove the one (1) or two (2) screws holding the
lint switch cover on.
5. Remove lint switch cover and disconnect the two
(2) terminals of the switch.
6. Remove switch by pressing tabs together and push switch out.
7. Install new switch by reversing procedure.
