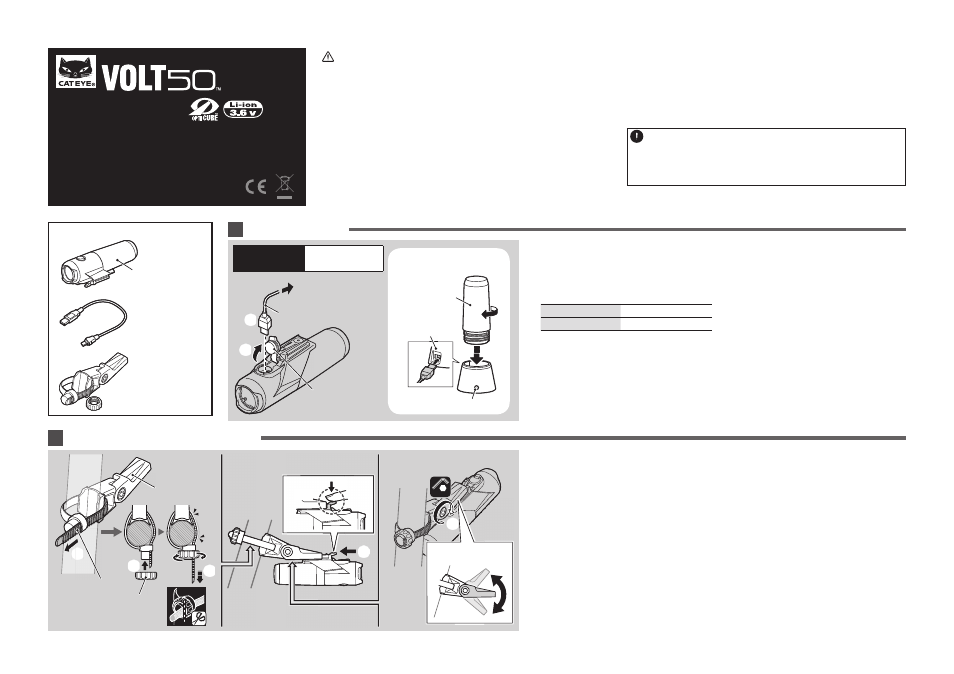

CatEye HL-EL460RC-REAR [Volt50] User Manual

CatEye Lighting

HL-EL460RC-REAR

RECHARGEABLE HEADLIGHT

1. Connect the light unit to your PC or a

commercial USB battery charger using

the USB cable. (Fig 1 1 – 2)

The switch or the indicator on the

cradle lights up, and charging starts.

Indicator light: On Charging
Indicator light: Off Charging is completed

* When your PC is in sleep state, the

unit cannot be charged.

* We recommend using 500+mA

(USB2.0) USB battery charger.

2. After charging is completed, remove

the USB cable, and install the charge

jack cover.

* Charging and lighting times are ap-

proximate values, and will vary by

environmental and user conditions.

* The cartridge battery can be fast-

charged by using the optional charging

cradle (about 3 hours of charging time).

Use a 1A or higher USB charging

adapter when charging by the cradle.

Before using the light, please read this manual and

the attached “Lithium-ion Batteries” thoroughly, and

keep them for future reference.

HOW TO CHARGE

CAUTION!

• Before your trip, please make sure the light is fi rmly mount-

ed to the bracket, it lights up, and the light is not blocked by

baggage, etc.

• Do not press the switch of the light while riding.

• Do not place it within children’s reach.

• In preparation for unexpected battery shutoff, we recom-

mend you carry a spare cartridge battery and light.

• This product is water-resistant under normal daily use and

can be used in the rain. However, do not intentionally sub-

merge it in water.

• If the light unit or parts become dirty with mud, etc., clean

with a soft cloth which is moistened with mild soap. Never

apply paint thinner, benzine or alcohol; damage will result.

• Dispose of used cartridge batteries appropriately according

to local regulations.

Before Initial Use

This unit is shipped with a small charge to check the light.

Be sure to charge it before use, according to the instructions

“HOW TO CHARGE”.

1. Mount the bracket on the seat post.

(Fig 2 1 – 3)

2. Insert the light unit into the bracket

until it clicks, and adjust the beam

angle. (4)

To remove the light from the bracket,

pull it out backward while pressing

down on the release button. (5)

3. Loosen the screw (6), adjust the

bracket to an appropriate angle, and

tighten the screw securely.

CAUTION!:

• Be sure to tighten the dial by hand.

When you tighten it too hard with

a tool, the screw thread may be

stripped.

• Check the dial and screw (6) on the

bracket periodically, and use them

without any loosening.

• Round off the cut edge of the bracket

strap to prevent injury.

HOW TO MOUNT ON A SEAT POST

Standard

charging time

Approx.

6 h

(USB 2.0)

Cradle

USB cable

Charge jack

cover

To PC or USB

battery charger

Charging on the cradle

Cartridge battery

Indicator

Design Pat. Pending

EL46RCRSP13 130905 1

Manual

ENG

Dial

Beam angle adjustment

Bracket

Strap

Tightening torque

2.0 N.m

Cartridge battery

USB cable

Light unit

FlexTight™ bracket

(SP-13)

Release

button
