Front Panel

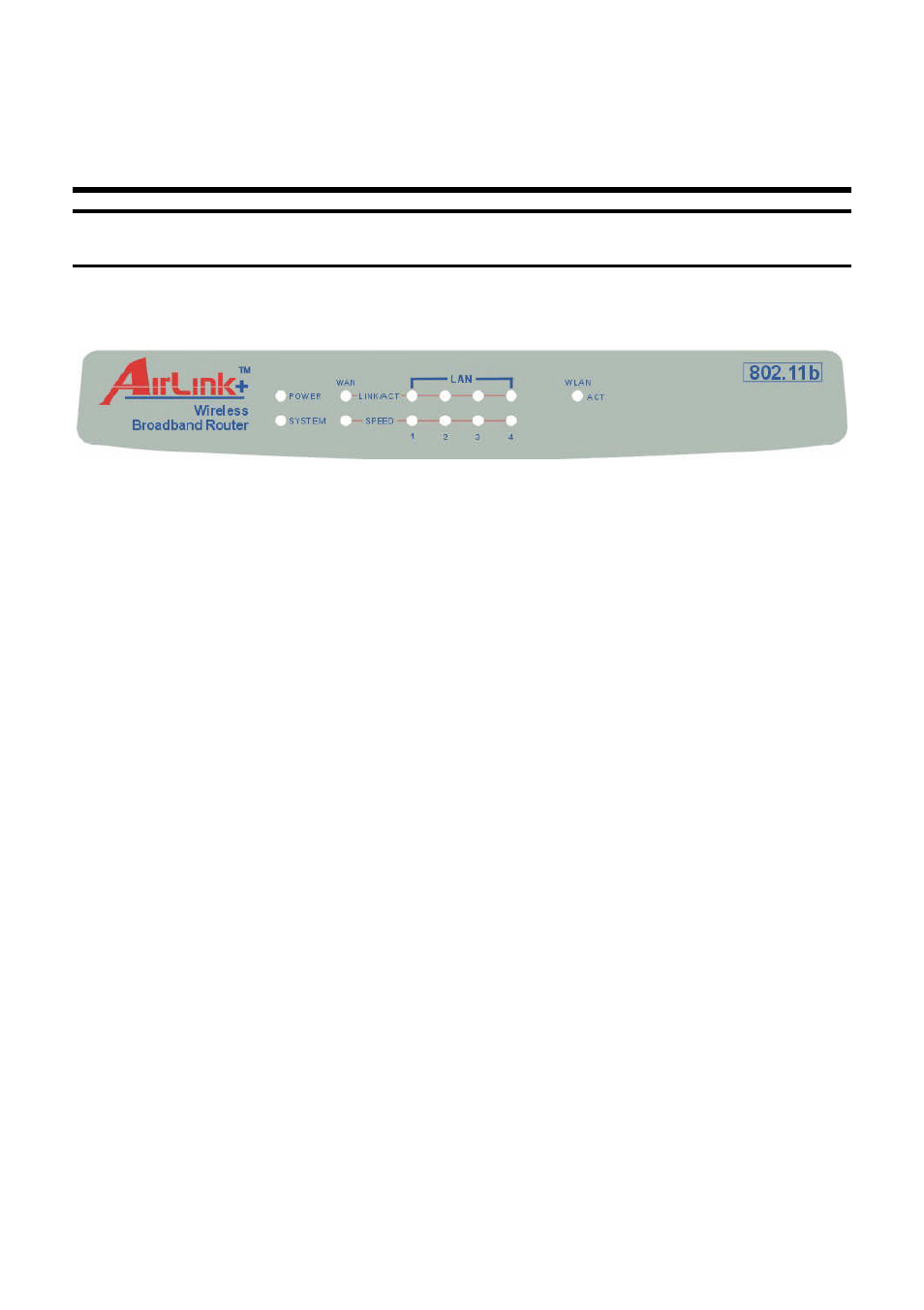

The figure below shows the front panel of the Wireless Broadband Router.
Wireless Broadband Router Front Panel
POWER
This indicator lights green when the hub receives power, otherwise it is
off.
SYSTEM
This indicator blinks green when the router is working properly, otherwise
it is off.
Link/ACT (WAN / LAN)
These indicators light green when the LAN/WAN ports are connected to
an xDSL/Cable modem successfully.
These indicators blink green while the LAN/WAN ports are transmitting
or receiving data through the xDSL/Cable modem.
Speed (WAN / LAN)
These indicators lights green when the ports are connected to
100Mbps Fast Ethernet Network, otherwise they remain off when the
ports are connected to 10Mbps Ethernet Network.
WLAN (ACT)
This indicator lights green when there are wireless devices connecting and
transmitting data through the Wireless Router.
