Attwood 6126 - Manual

Potable Water Pump
6126
Mounting Instructions
SAVE THESE INSTRUCTIONS
Form Number 69239 Rev. B
03-11
FEATURES:
The Potable Water Pump is a rugged, small sized fresh water
pump used to deliver water to a faucet. Ideal for use with the
Attwood 6142 Faucet/Hand Pump. It is made of ABS non-corro-
sive FDA approved plastic. Meets U.S. Coast Guard Safety
Standards Sections 33 CFR 183.410 and 183.425. Listed by the
International Association of Plumbing and Mechanical Officials
(IAPMO).
CAUTION:
The Potable Water Pump is designed to pump fresh,
potable water only. It must not be used to pump gasoline
or other flammable liquids.
TOOLS AND MATERIALS REQUIRED:
1. Drill and suitable drill bits.
2. Screwdriver.
3. Wire strippers.
4. Four (4) wire connectors or equivalent.
5. One (1) in-line fuse holder with 2 amp fuse.
6. Two (2) #10 panhead screws (length must not protrude
through deck).
7. Suitable length of 3/8" I.D. hose for pump to tank and pump
to faucet.
8. Four (4) stainless steel screw-adjustable hose clamps.
9. Additional wire, if needed, in 16 or 18 gauge size.
INSTALLATION INSTRUCTIONS:
1. Select a suitable location for this pump, keeping in mind that
it must be a dry area.
The pump has intake and outlet fittings to fit 3/8" I.D. soft
plastic tubing or 1/4" female pipe thread (cut off hose barb if
necessary). Teflon
® plumbers tape must be used for all
threaded connections and hose clamps for all tubing con-
nections.
NOTE: This product is designed to be used with the Attwood
6142 3-Way Electric Faucet which includes an integral ON/OFF
switch. However, it may also be used with any 12 volt DC water
system with an ON/OFF switch rated for 2 amps (or more) serv-
ice providing that the recommended 2 amp fuse is also used.
Attwood marine hardware, navigation lighting, interior lighting, bilge
pumps, and other marine accessories are specified more than any
other brand by America’s best-known boat manufacturers as original
equipment. Look to Attwood for quality replacement parts and add-on
marine accessories.
© 2003 Attwood Corporation
1016 N. Monroe Street, Lowell, MI 49331-0260
www.attwoodmarine.com
2. After installing the pump, connect the pump’s black lead wire
directly to the 12 volt battery negative (-) connector. Connect
the pump’s brown wire lead to one wire of an in-line fuse
holder and connect the other fuse holder wire to one lead
wire from the Electric Faucet. Connect the other Electric
Faucet lead wire directly to the 12 volt battery positive (+)
connector. (See Figure 1). Added wire must be 18 gauge or
larger.
An optional power ON/OFF switch, such as Attwood 7589 or
7563, may be installed as a master switch as shown in Figure 2.
The pump may be threaded directly into the tank. However,
this is a centrifugal pump and must be positioned lower than
the source of water to operate. Do not install on a surface
higher than the bottom of your fresh water supply tank.
NOTE: When installing, outlet nozzle should always be higher
than inlet nozzle. (See Figure 3)
CAUTION:
This product is not water resistant and must be installed
in a dry location.
Do not use synthetic rubber sealant (Silicone, RTV, etc.) or
any sealant which smells like vinegar to seal the pump or
its fittings. Use of these materials may cause the pump to
crack. It is best to use plumbers Teflon
® tape where
required.
CAUTION:
ALWAYS protect the pump and the wiring with a 2 amp
fuse. For 12 volt DC use only.
ATTWOOD LIMITED WARRANTY
BILGE PUMPS
ATTWOOD CORPORATION, 1016 North Monroe, Lowell, Michigan
49331, (“Attwood”) warrants to the original consumer purchaser that
this Attwood Potable Water Pump will be free from defects in materials
and workmanship under normal use and service for a period of one (1)
year from the date of original consumer purchase. This warranty does
not extend to any batteries or fuses used with the pump. This limited
warranty is not applicable if the pump has been damaged by accident,
improper installation, unreasonable use, lack of proper maintenance,
unauthorized repairs or modifications, or other causes not arising out of
defects in materials and workmanship.
Attwood’s obligations under this warranty are limited to repair of the
product at Attwood’s plant or replacement of the product at Attwood’s
option and at Attwood’s expense. Any expenses involved in the removal,
reinstallation, or transportation of the product are not covered by this
warranty. The product must be returned to Attwood’s plant at the address
indicated above, postage prepaid, with proof of original purchase,
including date. If Attwood is unable to replace the product and repair is not
commercially practicable or cannot be timely made, or if the original
consumer purchaser is willing to accept a refund in lieu of repair of
replacement, Attwood may refund the purchase price, less an amount for
depreciation. The acceptance by Attwood of any product returned or any
refund provided by Attwood shall not be deemed an admission that the
product is defective or in violation of any warranty.
This warranty is Attwood’s only express warranty of this product. No
implied warranty shall extend beyond one (1) year from the date of
original consumer purchase. Attwood shall not be liable for any damages
for loss of use of this product, nor for any other incidental or consequen-
tial damages, costs or expenses.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so
the above limitations and exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which
vary from state to state.

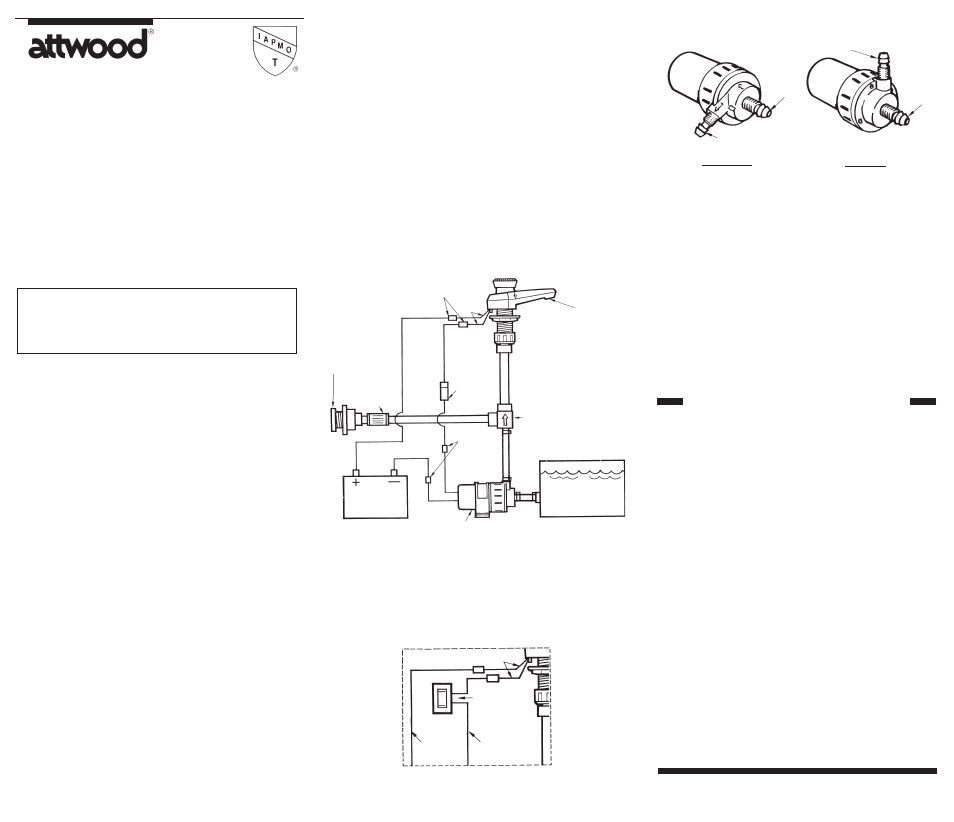

FIGURE 1
