15

Mounting

The hob unit can be mounted in any
type of kitchen with a table surface
whose thickness is between 28 mm and
40 mm.

Fixing

Unscrew the fixing brackets just enough
so they may be turmed. Fasten the
brackets to the worktop with a screw
driver.

Cut-out measurements

One rectangular hole is sawn out for the
hob combination chosen.
The depth of the cut-out for any unit is:
490 mm
Length of hole = sum of all units`
externally measured lenght, less 20 mm.

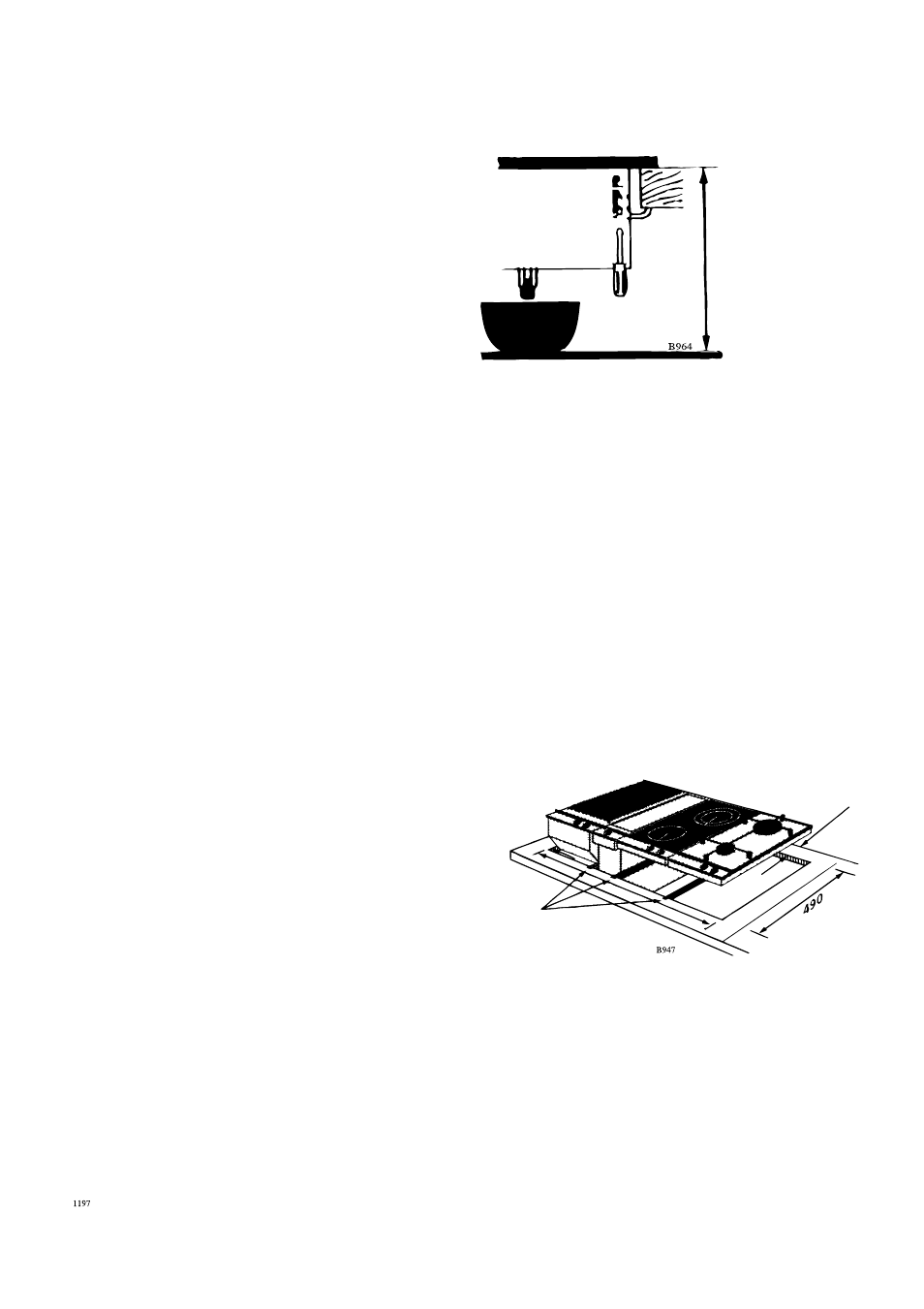

Mounting of Reinforcement
Beams

A reinforcement Beam, with supporting
flanges at each end, is included with
each two-burner unit. For unit
combinations, a reinforcement beam
must be used between each unit. It is not
necessary to attach the reinforcement
beam to the table surface, as it is held in
place by a specially designed moulding,
which is incorporated in the hob unit´s
flanges.

Minimum distance

to wall:

150 mm

Minimum distance

to wall (non-

flammable material):

150 mm

Reinforcement

beams

Minmum distance to

any shelf underneath

shall be 245 mm +

room enough for a

bowl that can take at

least 4 litres.
