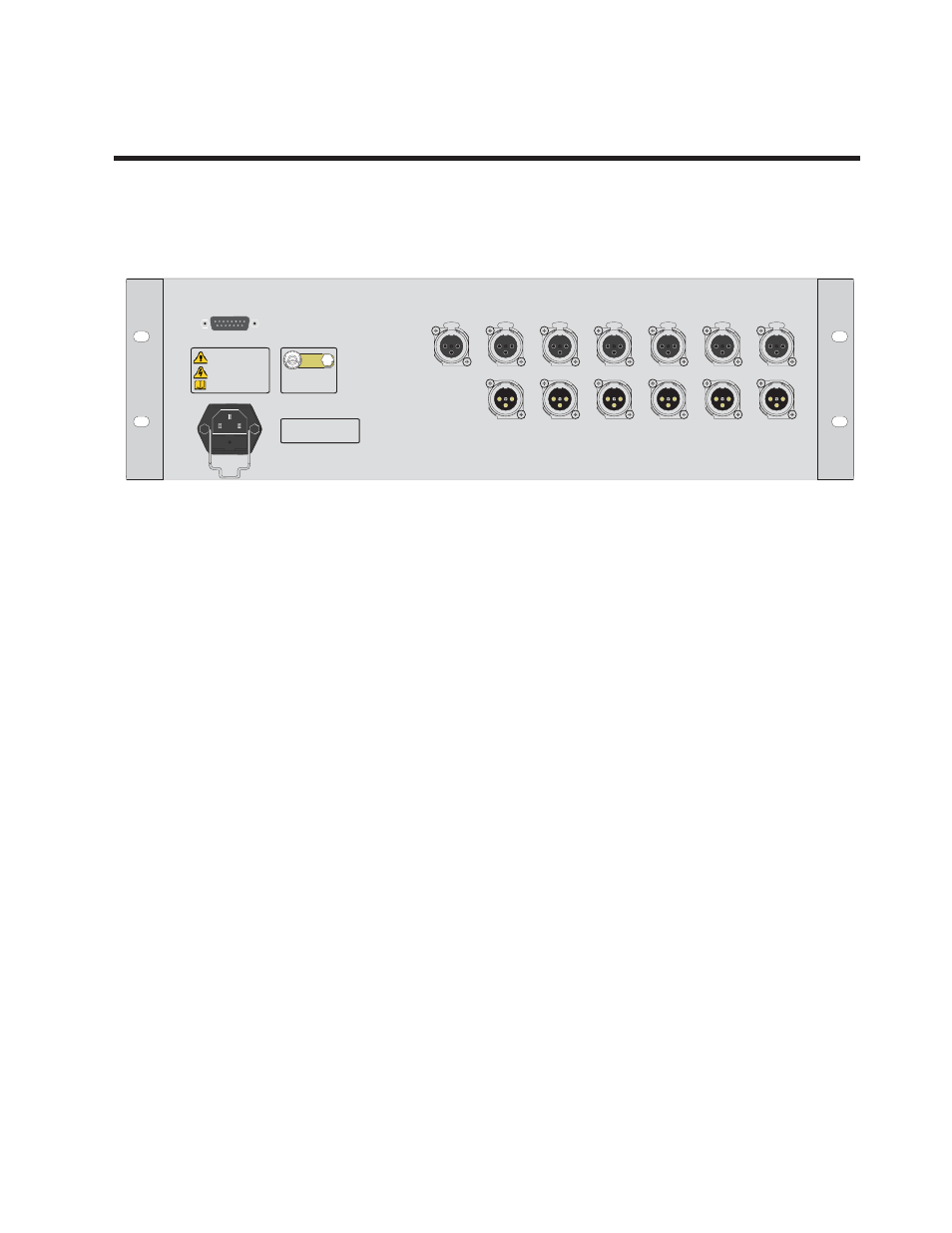

Rear Panel Connectors
-
Mating connectors are not supplied with these units.
CONTROL VOLTAGE I/O - 15 Pin D-Type
KEY INPUT - XLR Socket
INPUT 1-6 - XLR Socket
OUTPUT 1-6 - XLR Plug
-
These connectors apply to both the Standard and Mastering Compressor (AM4851 &
AM5292).
-
For I/O wiring on 88R(S) console mounted compressors (AM5052 & AM5265) see page 15 .
8051 5.1 Compressor User Guide
Issue 2 Page 3
PUSH PUSH PUSH PUSH PUSH PUSH PUSH
INPUT 1
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6
INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 KEY INPUT
CONTROL
VOLTAGE I/O
PLEASE SEE
MANUAL
CHASSIS INTERNAL
0V
FUSE 1.6A A/S CERAMIC
INPUT VOLTAGE 100-250V AC
INPUT FREQUENCY 47-63Hz
WARNING
DISCONNECT MAINS LEAD
TO ISOLATE UNIT.
NO USER SERVICEABLE
PARTS INSIDE
HAZARDOUS VOLTAGES INSIDE
REFER TO MANUALS
