- 12 -

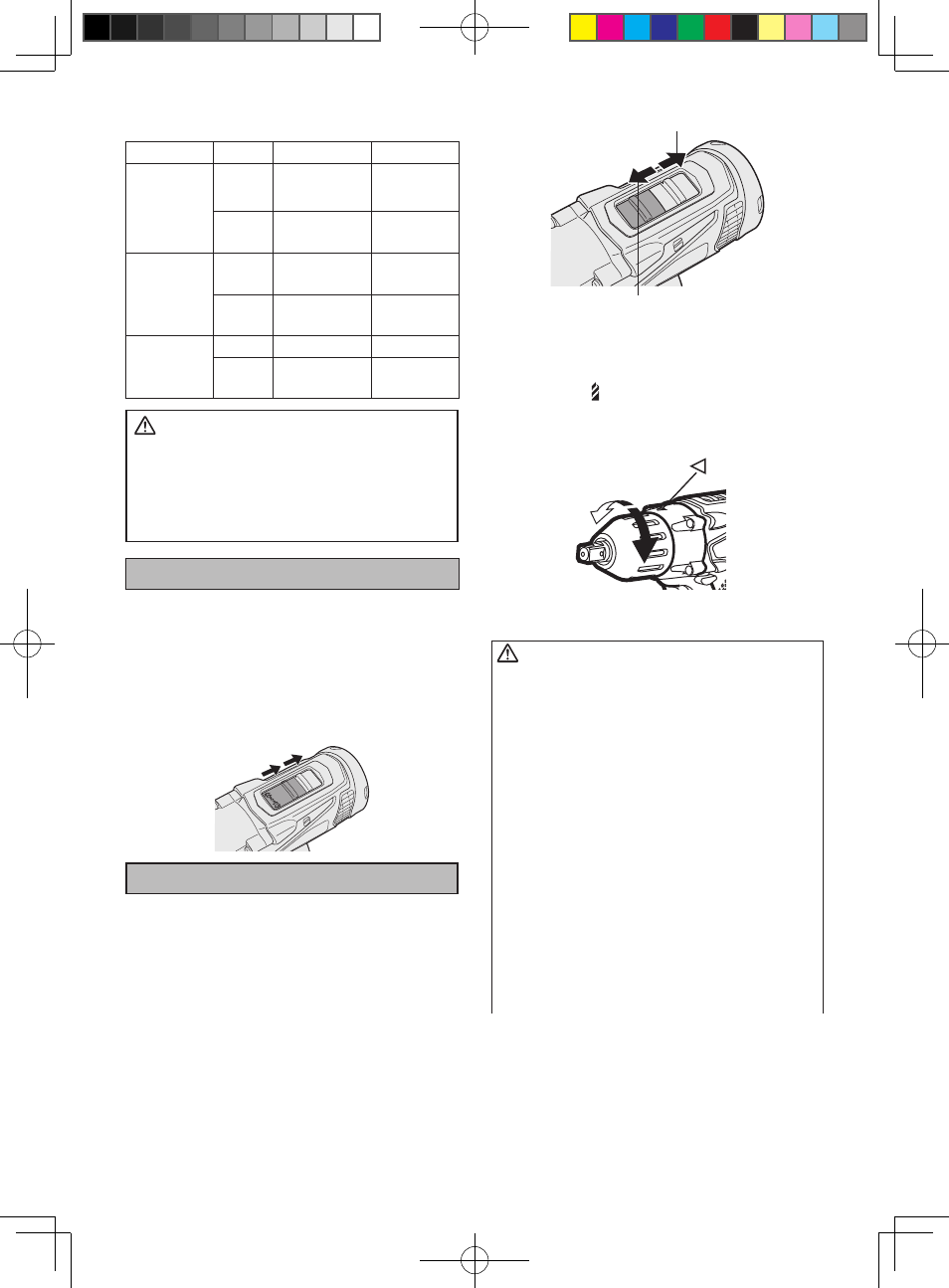

Selecting Mode
Select mode Intended use Work material Maximum size
Impact
Fastening Bolt
Nut
High tensil: M12
Standard: M14
Driving Wood screw
Self-drilling screw
9 mm (3/8”)
6 mm (1/4”)
Drill driver
High mode Driving Wood screw
Self-drilling screw
4.2 mm (1/8”)
6 mm (1/4”)
Drilling Wood
Metal
21 mm (7/8”)
10 mm (3/8”)
Drill driver
Low mode Driving Wood screw 6.8 mm (1/4”)
Drilling Wood
Metal
35 mm (1-3/8”)
13 mm (1/2”)
WARNING!
This tool must not be used as a drill in
“Impact Driver mode”. During drilling in
steel, the drill bit may break in case of
blocking and this may cause dangerous
cut wounds.
Impact Driver Operation
Select Impact with the mode select
switch.
• Switch to the Impact or Drill driver
High/Low position only when the tool
has completely stopped rotating.
Damage may be caused if the tool is
rotating.
Drill Driver Operation
Select Drill driver High or Low mode
with the mode select switch.
• Switch to the Impact or Drill driver
High/Low position only when the tool
has completely stopped rotating.
Damage may be caused if the tool is
rotating.
Drill driver Low mode
Drill driver High mode
Clutch Torque Setting
Adjust the torque to one of the 21 clutch
set tings or “ ” position.
CAUTION
:
Test the setting before actual opera tion.
Set the scale at this mark ( ).
How to Use the Belt Hook
WARNING!
• Be sure to attach the belt hook securely
to the main unit with the screw firmly
fastened. When the belt hook is not firm-
ly attached to the main unit, the hook
may disconnect and the main unit may
fall.
This may result in an accident or injury.
• Periodically check screw for tightness. If
found to be loose, tighten firmly.
• Be sure to attach the belt hook firmly and
securely onto a waist belt or other belt.
Pay attention that the unit does not slip off
the belt. This may result in an accident or
injury.
• When the main unit is held by the belt
hook, avoid jumping or running with it.
Doing so may cause the hook to slip
and the main unit may fall.
This may result in an accident or injury.
