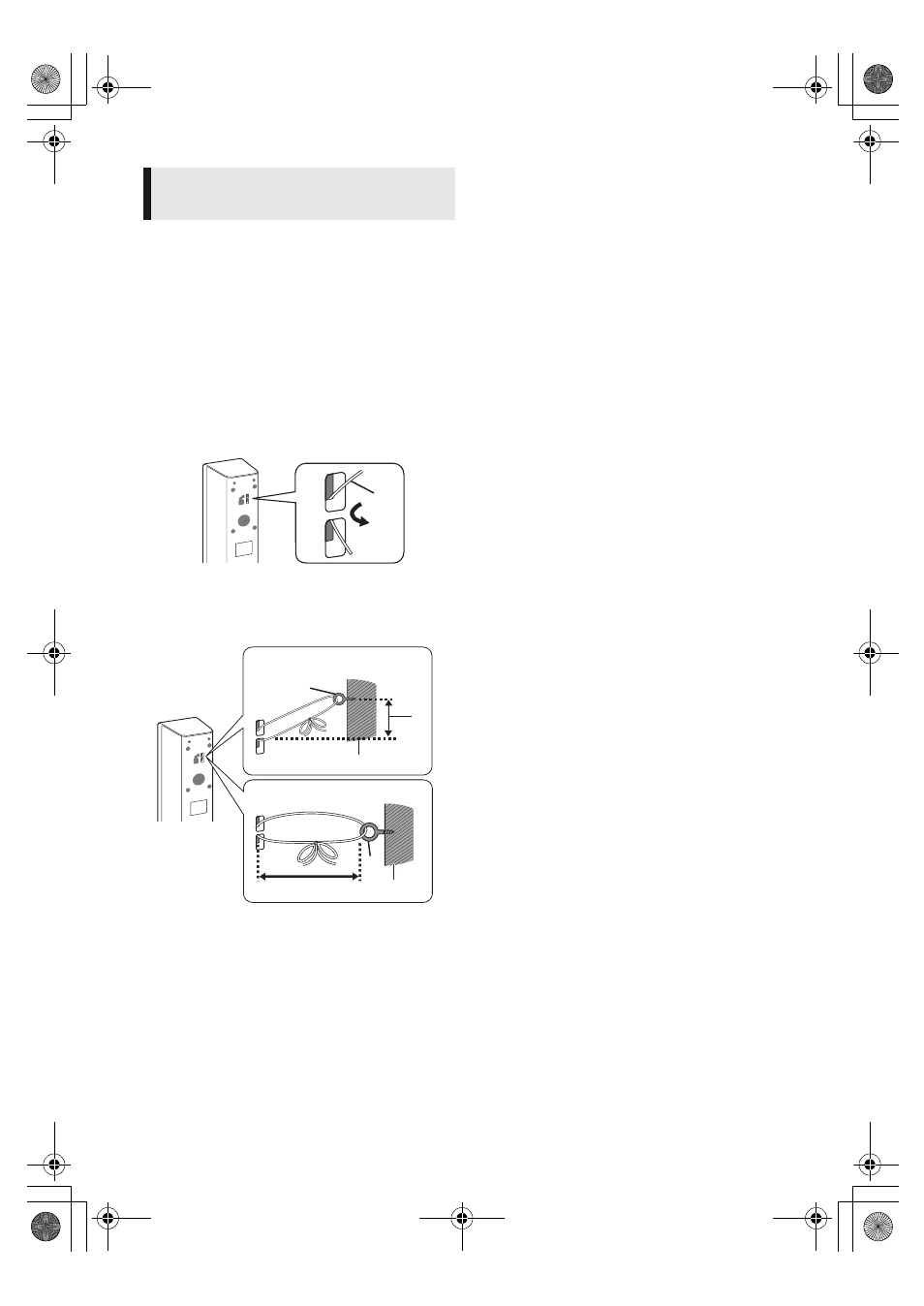

Secure the speaker.
Using the tie down area on the rear of the speaker
and a cord (not supplied), secure the speaker to a
wall anchor (not supplied) permanently attached
to the wall.
1
Thread a cord to the speaker.
≥ Use a cord of less than ‰ 2.0 mm (
3 /
32
q),
which is capable of supporting over 10 kg
(22 lbs).
e.g., [BTT466] [BTT465] Front speaker
A Cord (not supplied)
2
Thread a cord from the wall to the speaker
and tie tightly.
B Wall anchor (not supplied)
C Wall or pillar
D Approx.150 mm (6
q)
E Approx.100 mm (4 q)
To prevent tipping/falling of
the speakers




 

When mounted on a wall
When placed on the floor
