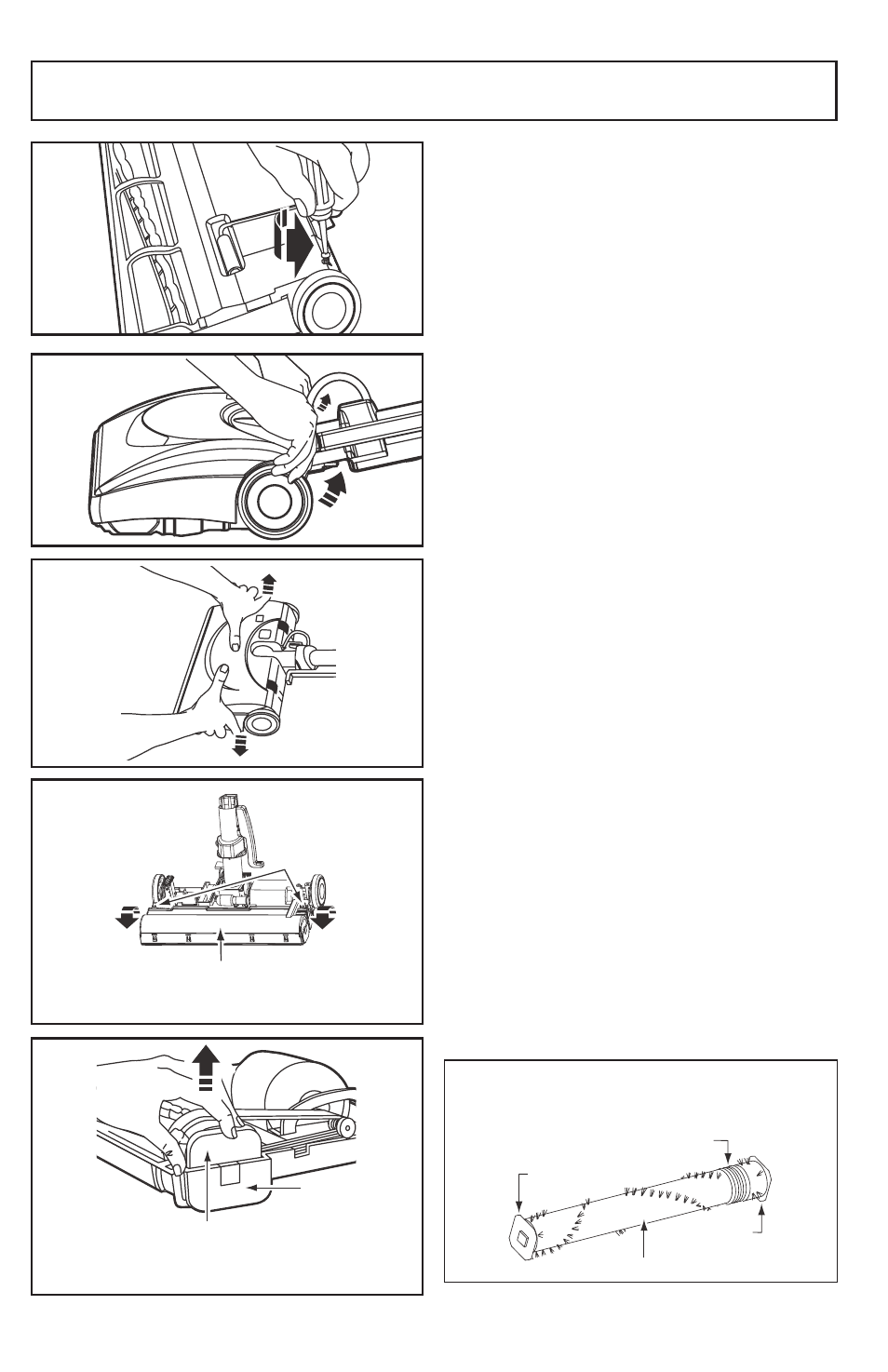

Removing Belt
Tabs
Languettes
Pestaña
Agitator Cover
Couvercle de l’agitateur
Cubierta del agitador
➢ Disconnect vacuum cleaner from
electrical outlet.
➢ Check and remove hair, string and
lint build-up frequently in the POWER
NOZZLE brush and brush support
areas.
➢ If build-up becomes excessive,
disconnect POWER NOZZLE from
wand and follow the steps below.
➢ Turn POWER NOZZLE over.
➢ Unscrew the two (2) POWER
NOZZLE cover screws.
➢ Turn POWER NOZZLE right side up.
➢ Press handle release pedal and
lower the swivel.
➢ To remove cover, grasp the sides and
pull out.
➢ Tilt cover forward from back until
front snaps free.
➢ Depress tabs on rear of agitator
cover and rotate forward to release
from the POWER NOZZLE base.
➢ Lift agitator assembly out .
➢ Remove worn belt.
End Cap
End
Cap
Belt Pulley
Brush Unit
Agitator Assembly
Base
Base
Base
Agitator Support
Support de l’agitateur
Soportes del agitador
