Installation

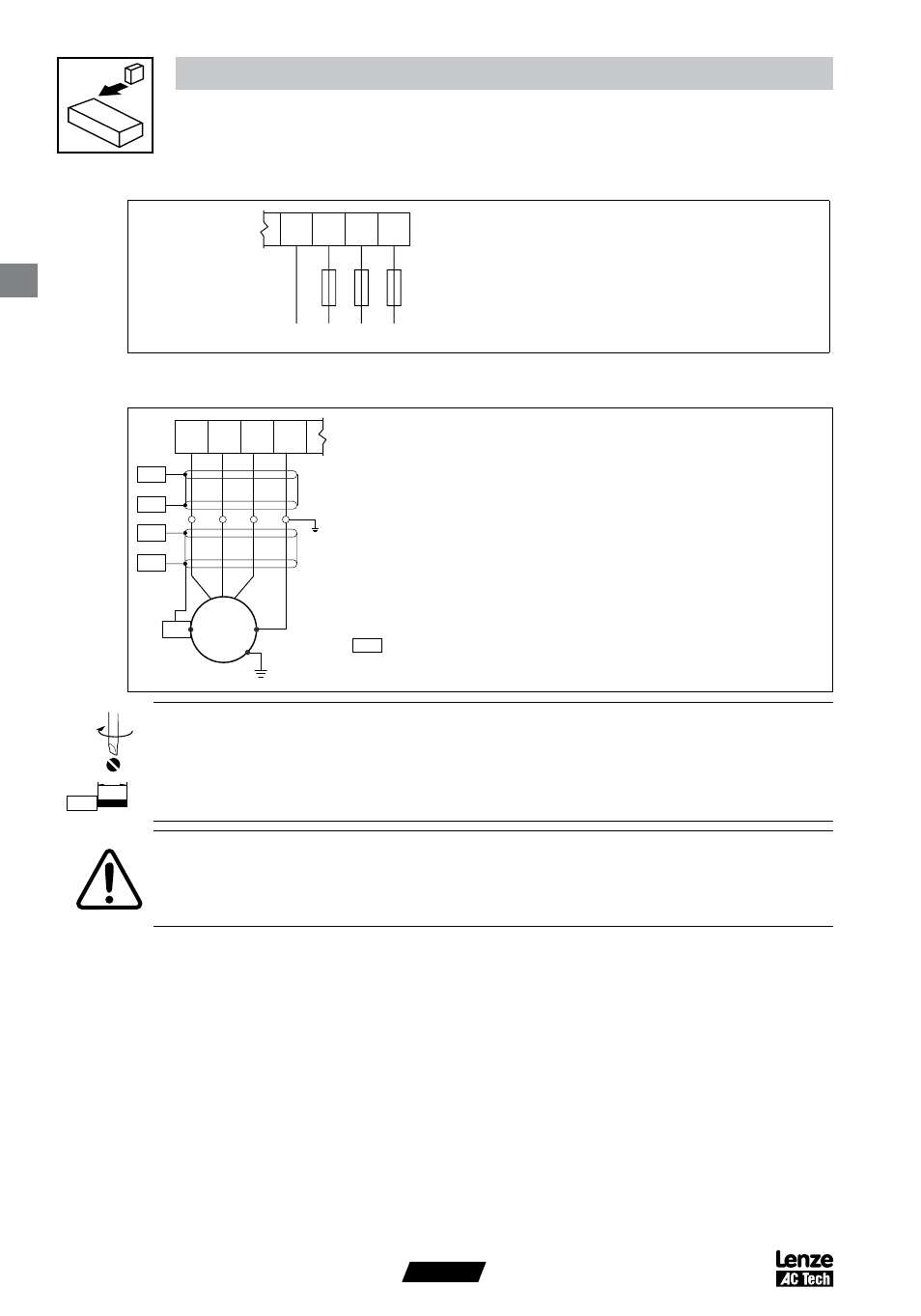

3.2.1.3 Mains connection to Three-Phase Supply
PE L1 L2 L3
PE L1 L2 L3
3.2.1.4 Motor Connection
U
/ T1
V
/ T2
W
/ T3
PE
PES
PES
M
3~
PE
PES
PES
PES
PE
PES = Protective Earth Shielding
Mains and Motor Terminations
2 lb-in (. Nm)
0.25 in (mm)
WARNING!
Leakage current may exceed .5 mA AC. Minimum size of the protective earth
conductor shall comply with local safety regulations for high leakage current equipment.
