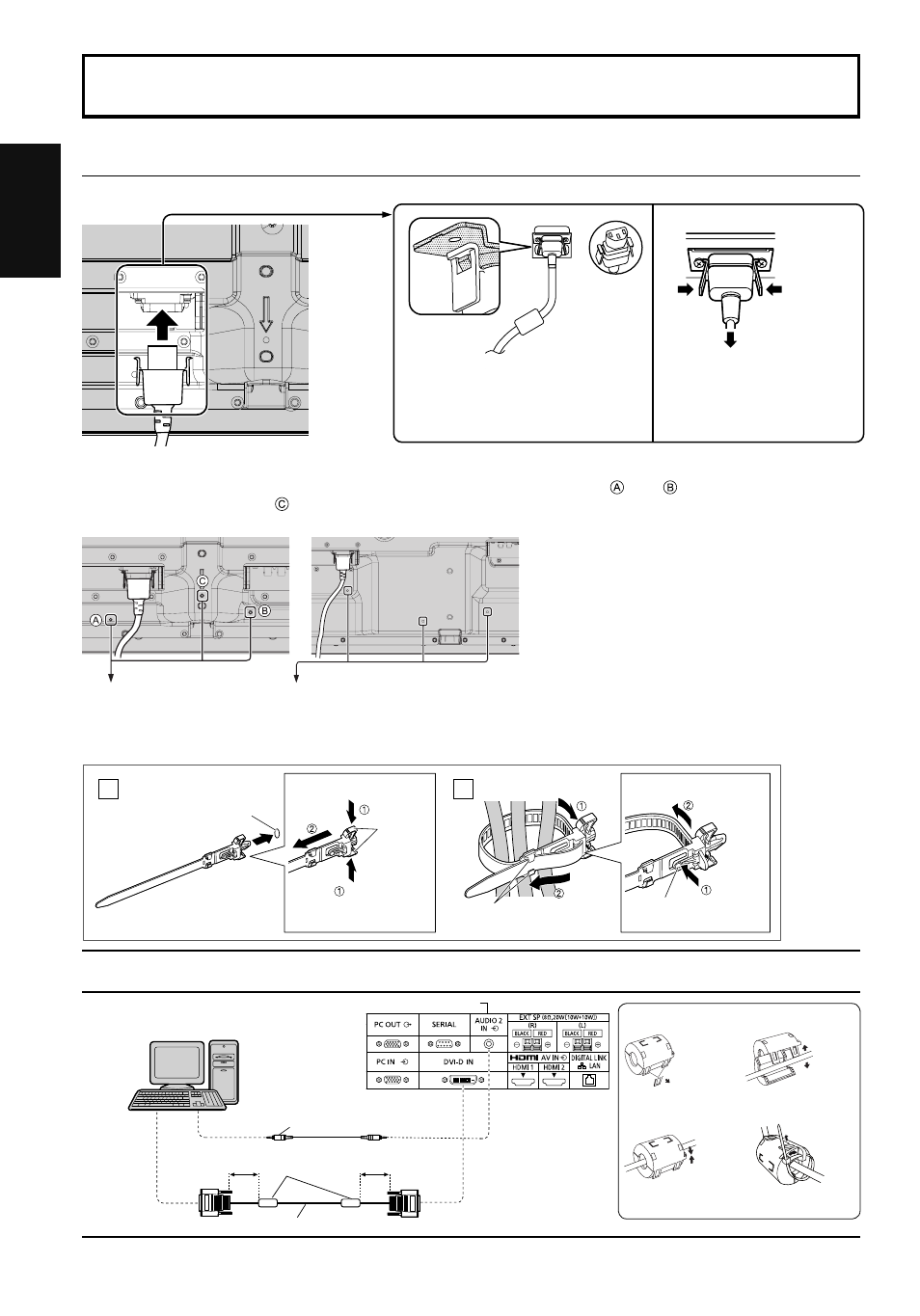

Connections
Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
AC cord fi xing
Unplug the AC cord
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet fi rst.
1 2 Attach the clamper To remove from the unit:
Keep pushing
both side
snaps
hole
Bundle the cables
snaps
hooks
Set the
tip in the
hooks
To loosen:
Keep
pushing
the knob
knob
Insert the clamper
in a hole.
AC cord connection and fi xing, cable fi xing
When using the Wall-hanging bracket (vertical) (for 50 inch model)
Note:
When using the Wall-hanging bracket (vertical)(TY-WK42PV20), use the holes and to secure the cables. If the
clamper is used on the hole , the cables may be caught by the wall-hanging bracket.
50 inch model 65 inch model
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
If you need more clampers, purchase them from your dealer. (Available from the customer service)
How to use the Ferrite core
Installing the Ferrite core
Pull back the tabs
(in two places)
1 .
Open the
Ferrite core
2.
Route the cable
through and close
3.
Fix the Ferrite core
with the cable tie
4.
Stereo mini plug (M3)
PC with DVI-D
video out
Shared with PC IN.
Less than
5 cm
Less than
5 cm
Ferrite core
(supplied)
DVI-video cable (Within 5 m)
