Select input signal from AV1, AV2, S-Video or PC.
- 7 -

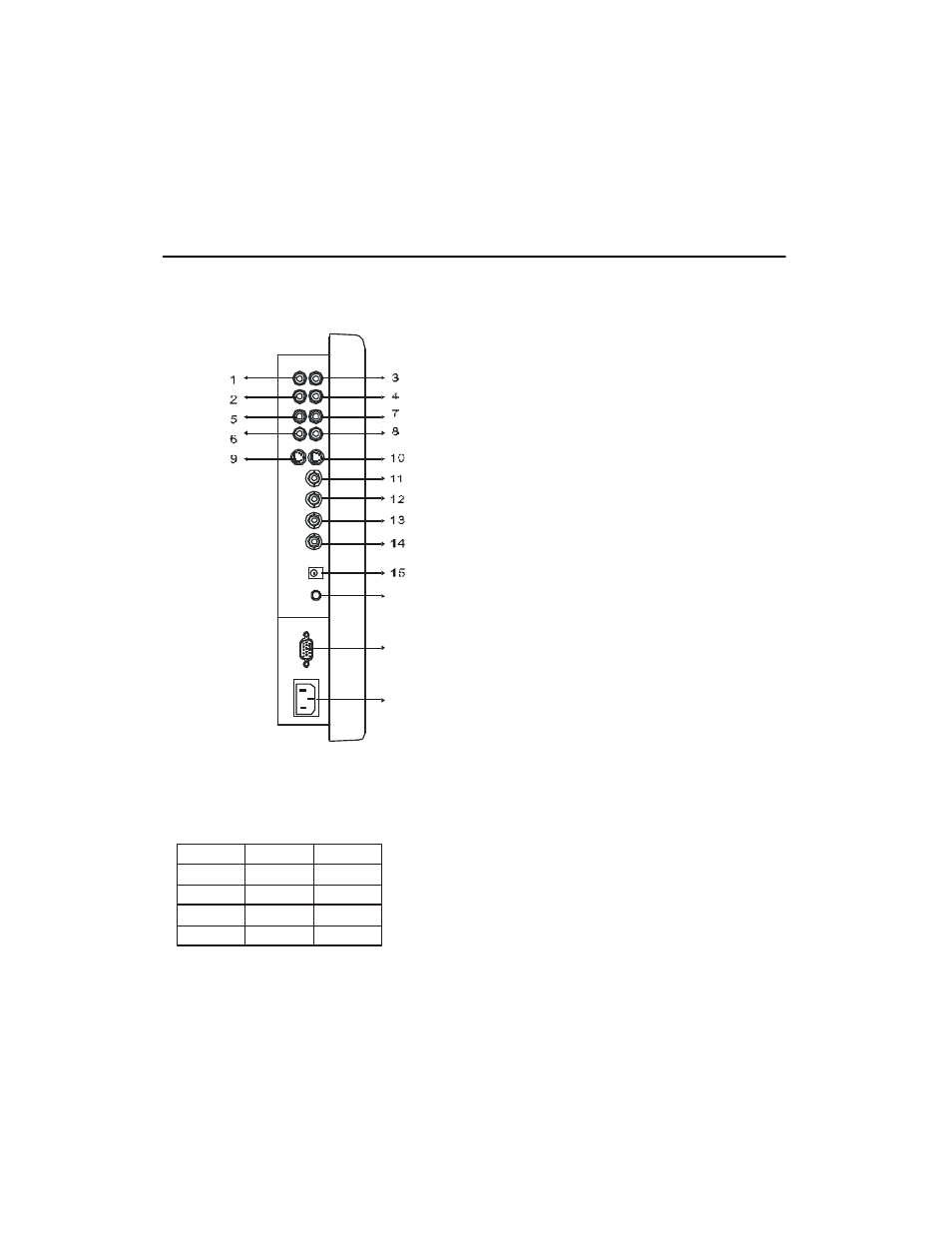

Backside Connections
A. BACK PANEL CONTROL
NOTE :
Audio Connections
PC
AV 1
AV 2
S-Video
Audio 1 Audio 2
V
V
V
V
16
17
18
1, 2 AUDIO 2 IN (L, R)
Stereo Audio Signal Input, this input is for
AV2 or PC (refer to Note below)
3, 4 AUDIO 2 OUT (L, R)
Audio looping outputs for AUDIO 2
5, 6 AUDIO 1 IN (L, R)
Stereo Audio Signal Input, this input is for
AV1 or Y/C (refer to Note below)
7, 8 AUDIO 1 OUT (L, R)
Audio looping outputs for AUDIO 1
9 Y/C IN (SVHS)
Y/C separated signal input
10 Y/C OUT (SVHS)
Y/C separated signal looping output
11 VIDEO 2 OUT
Video looping output for VIDEO 2
12 VIDEO 2 IN
Composite signal Input for VIDEO 2
13 VIDEO 1 OUT
Video looping output for VIDEO 1
14 VIDEO 1 IN
Composite signal Input for VIDEO 1
15 REGULATED DC12V POWER OUTPUT
(500mA)
16 AUDIO LIVE OUT
17 PC VGA IN
18. AC POWER CORD
