PC IN
SLOT1 SLOT2 SLOT3 SLOT3
OUT
IN
7
English
2 slots model Slot1, Slot2
3 slots model Slot1, Slot2 (Slot3 is not compatible)
Signal format
fV
(Hz)
Scanning
format
fH
(kHz)
Dot clock
(MHz)
Number of
active pixels
Total number
of pixels
Number of
active lines
Total number
of lines
1 1125 (1080) / 60i : 59.94i 60 2:1 Interlace 33.75 74.25 1920 2200 1080 1125
2 1125 (1080) / 50i 50 2:1 Interlace 28.125 74.25 1920 2640 1080 1125
3 750 (720) / 60p : 59.94p 60 Progressive 45 74.25 1280 1650 720 750
4 750 (720) /50p 50 Progressive 37.5 74.25 1280 1980 720 750
5 1125 (1080) / 24sF : 23.985sF 48 Progressive (sF) 27 74.25 1920 2750 1080 1125
6 1125 (1080) / 30p 30 Progressive 33.75 74.25 1920 2200 1080 1125
7 1125 (1080) / 25p 25 Progressive 28.125 74.25 1920 2640 1080 1125
8 1125 (1080) / 24p 24 Progressive 27 74.25 1920 2750 1080 1125
9 525 (480) / 59.94i 59.94 2:1 Interlace 15.734 27 1440 1716 486 525
10 625 (575) / 50i 50 2:1 Interlace 15.625 27 1440 1728 576 625

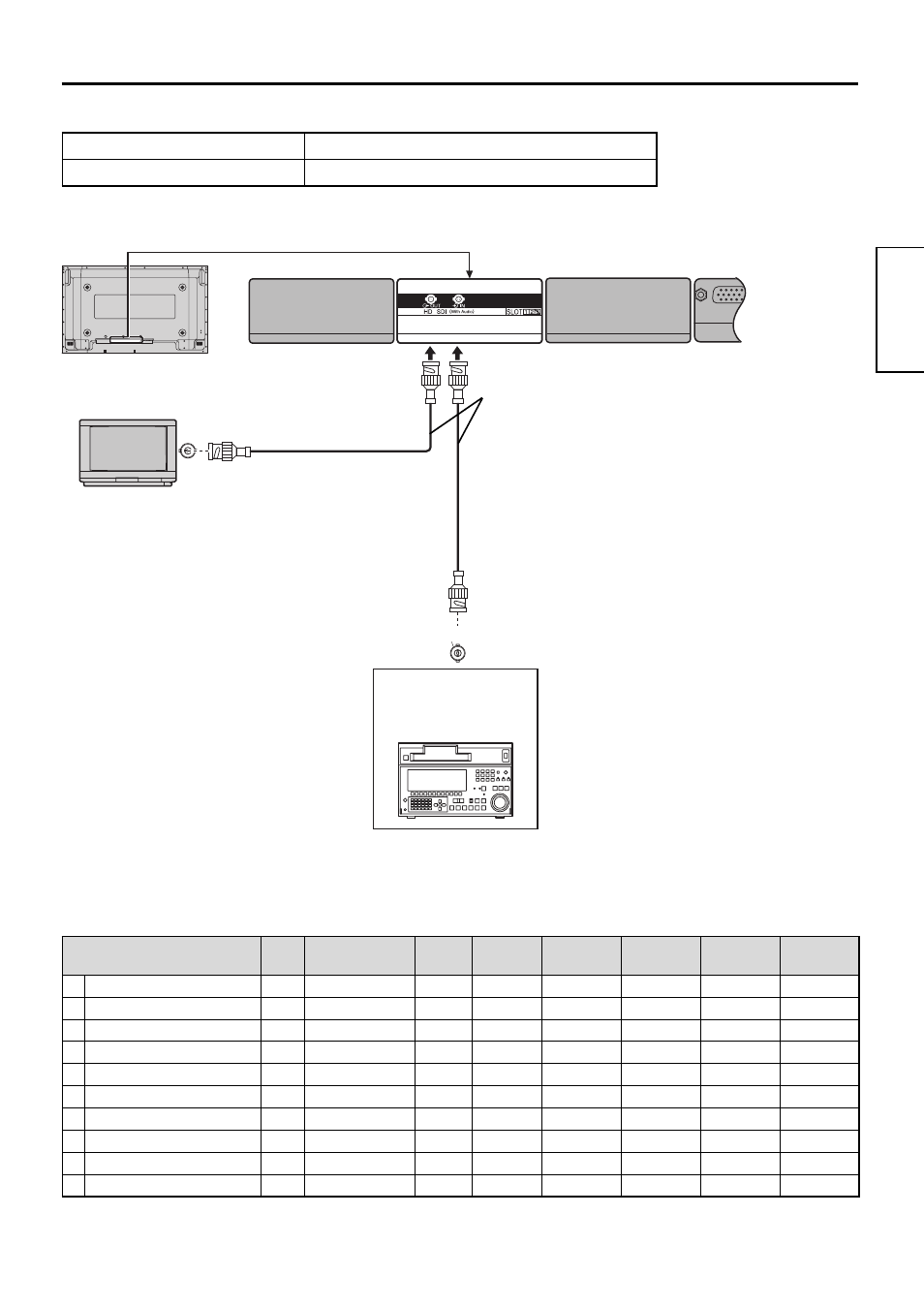

Connection
Slot Nos. of the display unit that are compatible with terminal board attachments
Video signals supported by the unit
Note:
• Additional equipment and cables shown are not supplied with this set.
Business digital
VCR
Back view of the Display
MONITOR
• Equipment with SD-SDI or HD-SDI
input capability
(Examples)
Professional-use or broadcast digital
VCRs, professional-use monitors
(CRT, LCD, PDP)
SD-SDI or HD-SDI
• Equipment with SD-SDI or HD-SDI output
capability
(Examples)
Professional-use or broadcast digital VCRs,
professional-use monitors (CRT, LCD,
PDP)
• This HD-SDI board can also receive SD-
SDI signals, and can perform on-board
discrimination automatically.
• Recommended cable
SD-SDI: 75 Ω coaxial cable 5C-2V
HD-SDI: 75 Ω coaxial cable 5C-FB
• Maximum extension length when using the above
recommended cable
SD-SDI: 200 m
HD-SDI: 100 m
* This terminal board supports the PF10 and subsequent series.
(It doesn’t support the PS10 / PH10 series.)
（ )
When using a cable with a length of less than
100 m and an attenuation of 10 dB at 135 MHz
（ )
When using a cable with a length of less than
100 m and an attenuation of 15 dB at 750 MHz
