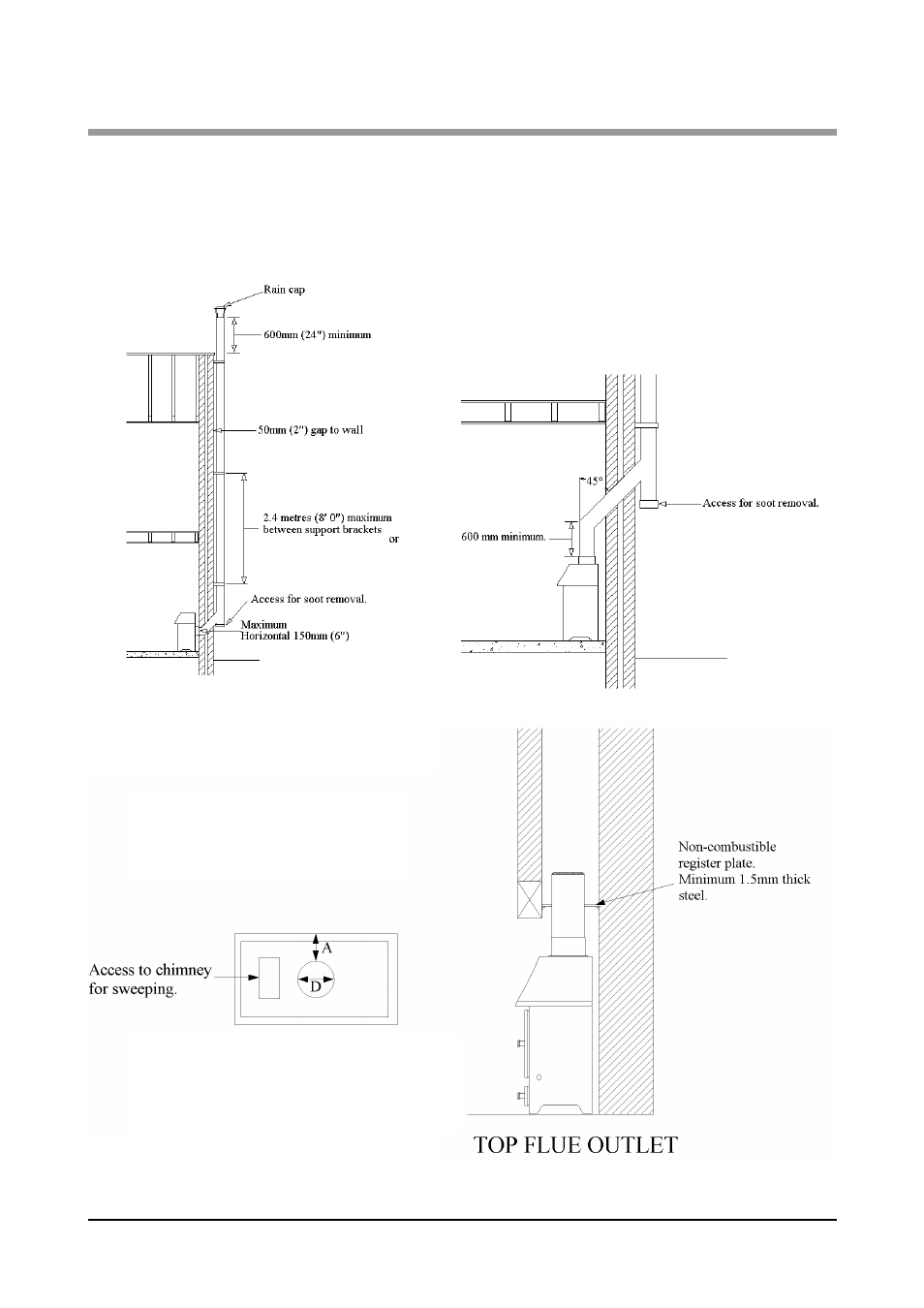

Sherborne Wood & Multifuel Stoves 23
INSTALLATION
P
LAN
V
IEW OF REGISTER PLATE AND
CLEARANCES FOR NON INSULATED
FLUES
T
YPICAL
M
ETAL
I
NSULATED
C
HIMNEY
S
YSTEM
T
O BE INSTALLED TO THE CHIMNEY MANUFACTURERS INSTRUCTIONS IN COMPLIANCE
WITH BUILDING REGULATIONS AND
BS7566 P
TS
1-4
A is minimum clearance for non-insulated flue =
1.5 x D to a non-combustible surface/material
or
3 x D to combustible surface/material
