Optional Equipment
41
Travis Industries 100-01140 4 051104

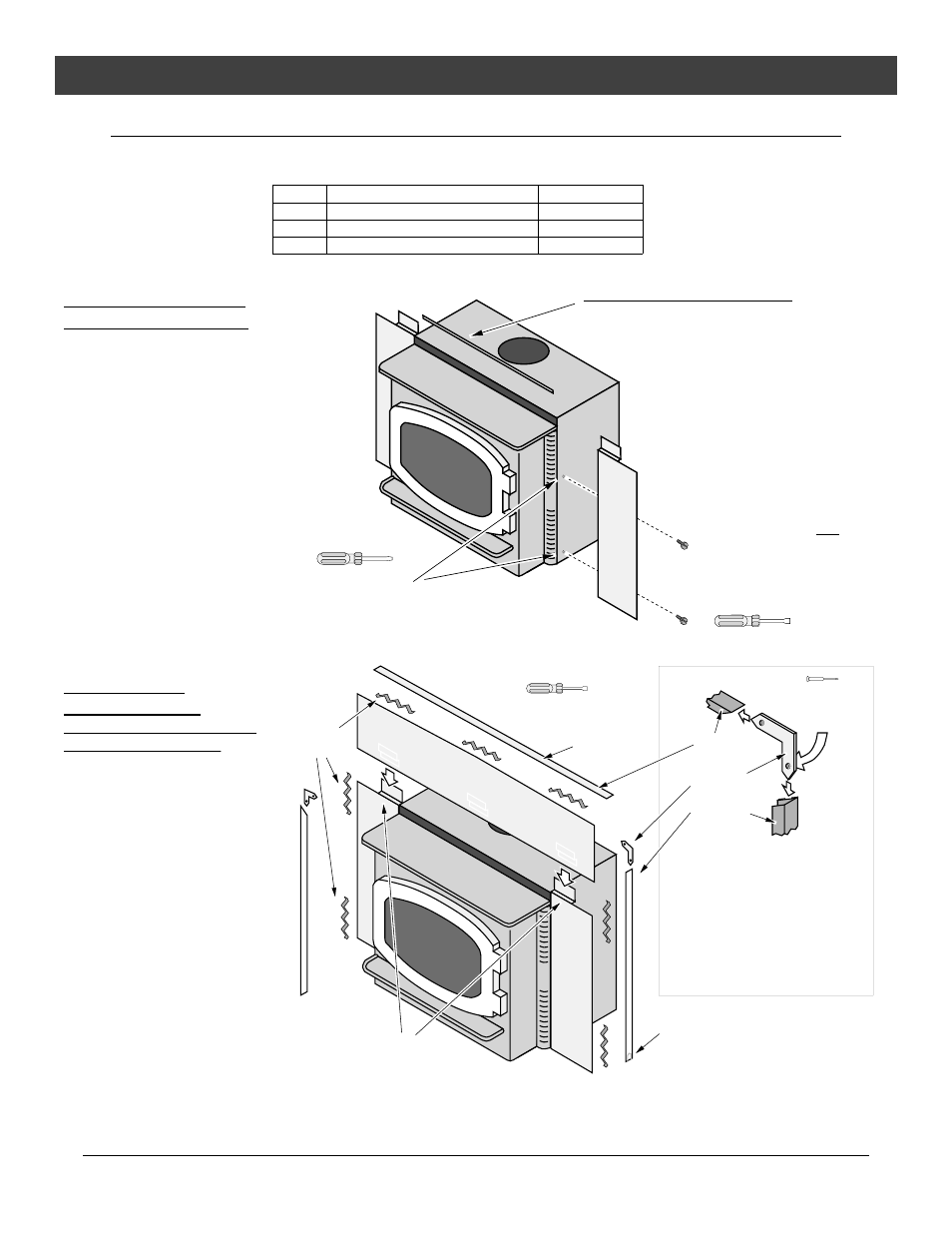

Surround Panels (see part #'s below)
PANEL SIZING
S i z e Size on Insert (w trim) PART #
8" 41 3/4" wide by 28 7/8" high 99300256
10" 45 3/4" wide by 30 7/8" high 99300257
12" 49 3/4" wide by 32 7/8" high 99300258
INSTALLATION
INSTRUCTIONS
1. With the insert 12” from the
fireplace, install the side
surround panels (see the
directions to the right).
2. Adjust the position of the
side panels so they are: 1)
aligned with the top of the
insert; 2) both the same
distance back from the front
of the insert; 3)
perpendicular to the floor
(use the top panel, if
necessary, to judge
alignment). Tighten the
screws that hold the side
panels in place.
3. Install the top panel and trim
following the directions to
the right.
In s u l a tio n
Installation
(required for face seal
installations only)
1. With the insert drawn 6"
from the fireplace, glue the
insulation strip included with
the surround panel kit to the
back of the panels using
RTV silicon or stove gasket
cement. The insulation
should be installed so it
overlaps the fireplace
opening to form a seal
between the panels and the
fireplace face. Let the
silicon or cement dry.
2. Push the insert into the
fireplace, allowing the
insulation to form a seal
between the panels and the
fireplace. Use a screwdriver
to tuck any exposed
insulation behind the panels.
Avalon Pendleton-45 and Rainier-45:
Remove the brass trim along the top of the stove.
Button Plugs
(pry out with a screwdriver)
Side
Panel
5/16" Nutdriver
Attach the side panels with
the included screws (hint:
pre-thread the holes prior
to installing the panels).
"L" Bracket
Right Side
Trim
Top Trim
Optional Trim Installation:
Insert one leg of each "L" bracket into the top
and side trim piece. Align the trim to form a
precise corner, then tighten the two set
screws with a small standard screwdriver.
Slide the trim over the panels. Place the
spring clips behind the panels at the locations
shown. This keeps the trim tight against the
panel.
Micro (1/16”)
Standard
Screwdriver
Install the top panel so the tabs insert
into the joggle clips on the top panel
Top
Panel
Spring
Clips Top Trim
Optional Knock-Out
An optional knock-out is provided on both
sides if the power cord is routed behind the
surround panel.
5/16" Nutdriver
