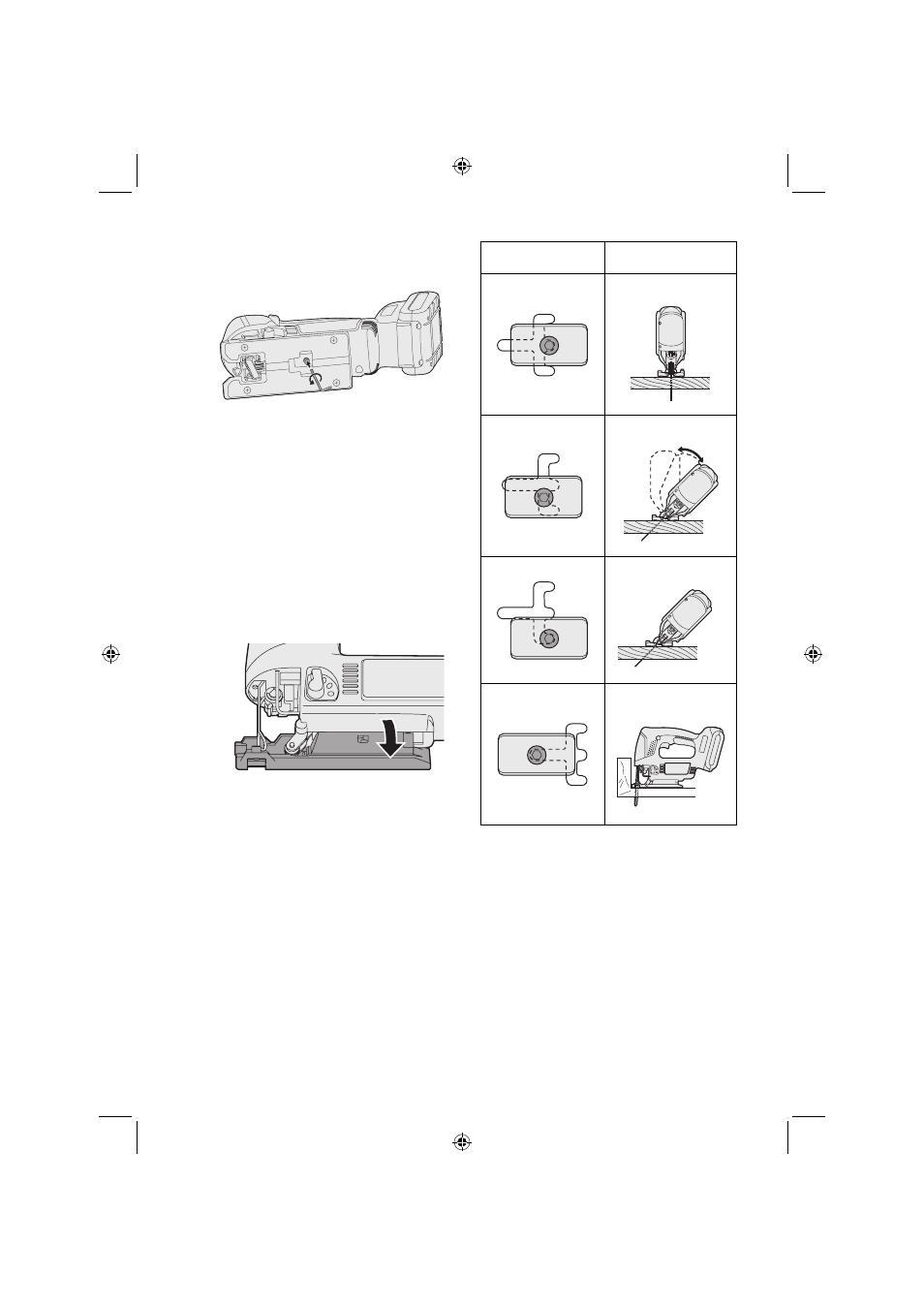

Adjusting the base
1. Use the hex wrench to loosen the
base fixing screw.
2. Move the base along the base ad-
justment hole to set its position. (See
the diagram at right.)
• The base can be adjusted to between
0° and 45° sideways and the for-
ward/back position can also be ad-
justed. If tilting the base sideways,
remove the dust cover first.
• Refer to the bevel index to determine
the angle.
• Rip fence fixing screw should be lo-
cated on the opposite side tool is bev-
eled.
3. Use the hex wrench to tighten the
base fixing screw.
Position of base and purpose of use
Base adjustment
hole position
Purpose of use
Normal right-angled
cutting
Cutting at an angle
between 0° and 45°
Cutting at an angle of
45°
Cutting close to the end
of a wall
NOTE:
This is only a rough guide. The ac-
tual angle of the cut will be affected
by factors such as the way the tool
is held against the surface.
3 2 1
0
