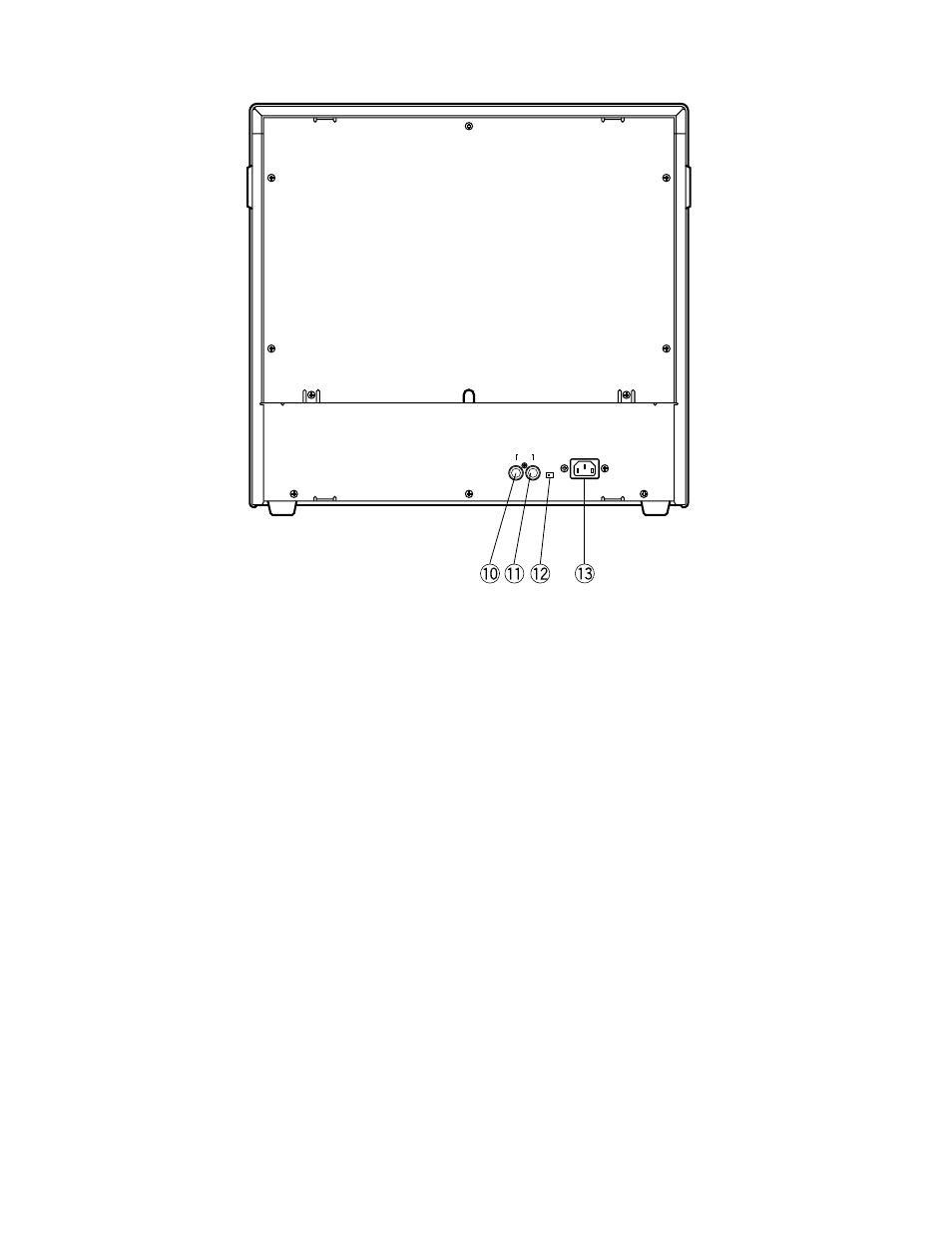

Rear view – Panasonic WVBM1910 User Manual
Page 5
-3-
10. Video Output Connector (VIDEO OUT)
This BNC type connector is used to provide the
video output signal of the source to an additional
monitor or video tape recorder.
11. Video Input Connector (VIDEO IN)
This BNC type connector is used for receiving the
video signal from a source to be monitored, such as
a VTR.
12. DC Restoration Switch (DC REST ON/OFF)
Select ON or OFF to restore background of picture
or not.
13. AC IN
■
REAR VIEW
AC IN
DC REST
OFF
IN
ON
OUT
VIDEO
