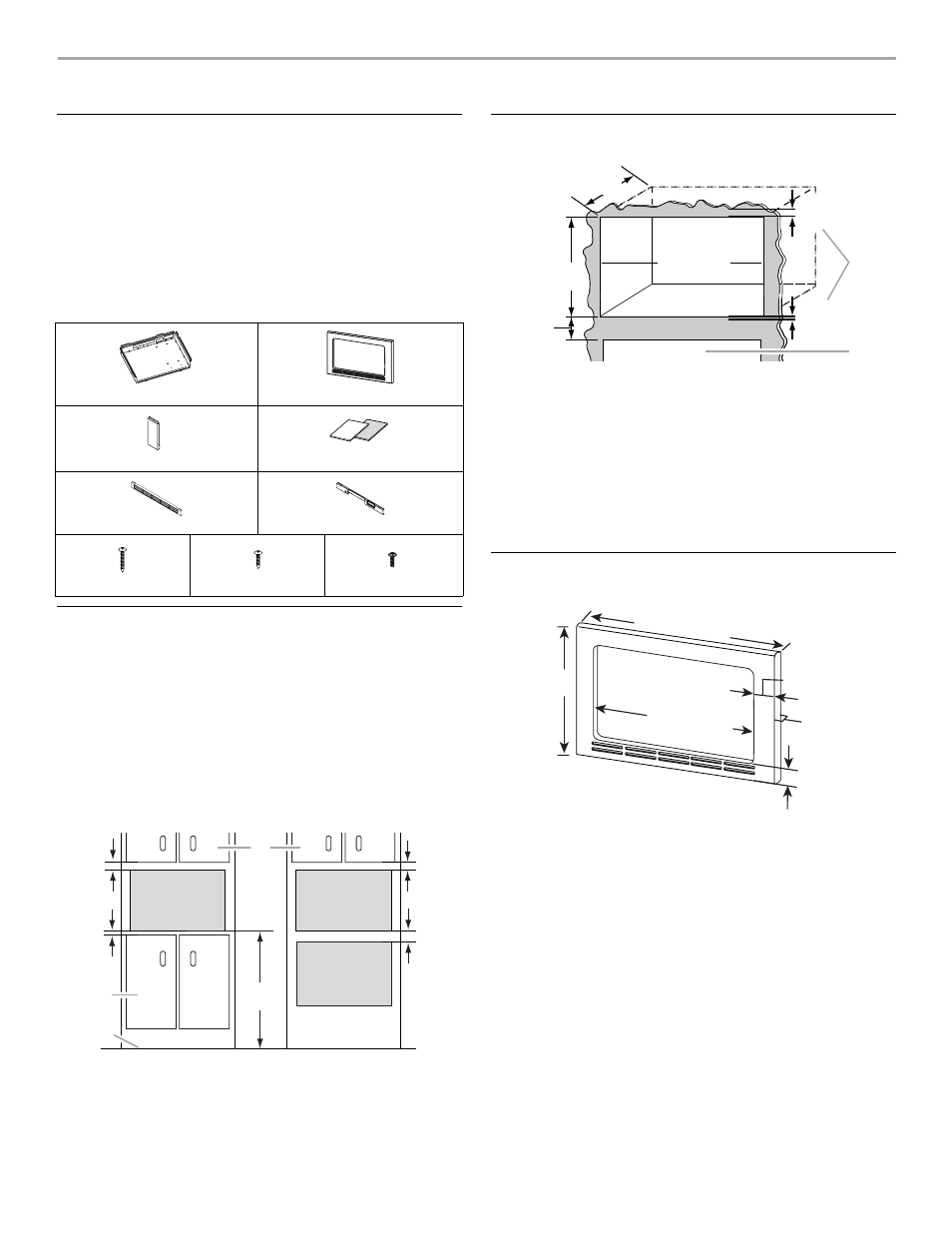

INSTALLATION INSTRUCTIONS
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Parts Supplied
Location Requirements
The microwave oven may be installed over a built-in oven. If
installing over a built-in oven, make sure there is a minimum of 3"
(7.6 cm) between the top of the lower oven cutout and the
microwave oven cutout floor.
The microwave oven may also be installed in a cabinet by itself
(without a built-in oven below). For best usability, we recommend a
minimum distance of 36" (91.4 cm) from the floor to the cutout floor.
Make sure the surrounding cabinetry has clearance to open and
close freely. Allow a clearance of at least 1" (2.5 cm) below the
cutout floor (3" [7.6 cm] for installation above a built-in oven), and
a clearance of at least 2" (5.1 cm) above the cutout opening.
Minimum Cutout Dimensions
NOTES:
■ Height, width and depth measurements have ±1/16" (2 mm)
tolerance.
■ 3" (7.6 cm) minimum dimension is from lower oven cutout
ceiling to microwave oven cutout floor.
■ Trim kit frame extends 11/16" (1.8 cm) below, and 1 ⁹⁄₁₆"
(4.0 cm) above the cutout opening.
Trim Kit Frame Dimensions
*27" (68.6 cm) trim kit
**30" (76.2 cm) trim kit
■ Measuring tape
■ Pencil
■ Phillips screwdriver
■ Drill
■ 7/64" drill bit
■ Tape
Duct base Trim kit frame
Left duct Templates 1 and 2
Bottom bracket Top bracket
13/16" screws (2) 9/16" screws (16) 1/2" screws (4 - painted)
A. Upper cabinet
B. Microwave oven cutout
C. Lower oven cutout
D. Lower cabinets
E. Floor
2 1
3"
(7.6 cm)
B B
D
36"
(91.4 cm)
C
2"
(5.1 cm)
2"
(5.1 cm)
1"
(2.5 cm)
A
E
A. Trim kit frame overhang
B. Cutout for lower oven
23
³⁄₄
"
(60.3 cm)
Width Width
16
⁷⁄₈
"
(42.9 cm)
25" (63.5 cm)
3"
(7.6 cm)
A
1
⁹⁄₁₆
"
(4.0 cm)
¹¹⁄₁₆
"
(1.8 cm)
B
19
¹⁄₈
"
(48.6 cm)
26 ⁷⁄₈
" (68.3 cm)*
29 ³⁄₄
" (75.6 cm)**
1⁷⁄₁₆
" (3.7 cm)*
2
⁷⁄₈
" (7.3 cm)**
24" (61.0 cm)
⁷⁄₈
"
(2.2 cm)
3" (7.6 cm)
