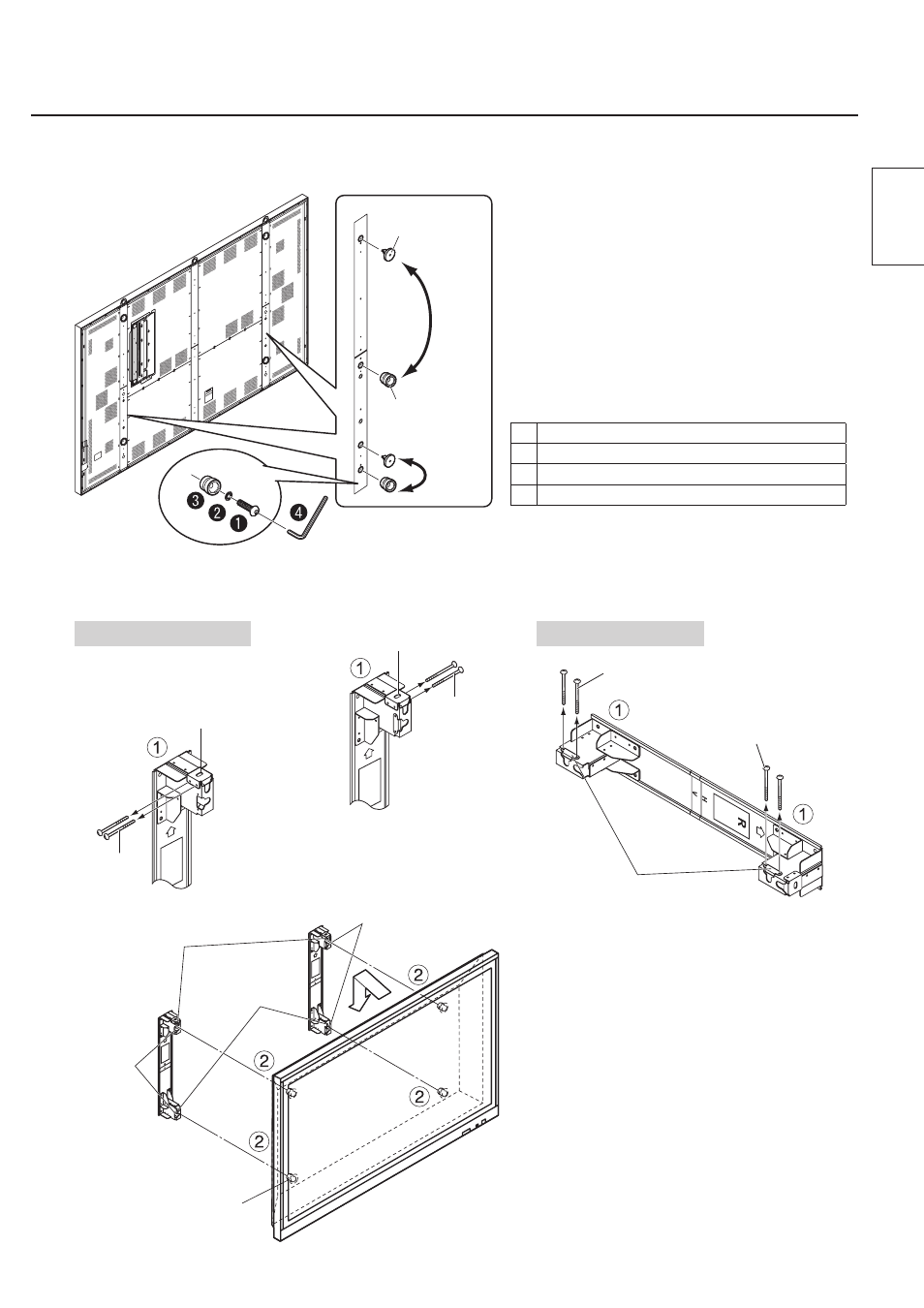

3. Prepare the Plasma Display.
 Hexagon socket head button bolt
 Spring washer
 Stand hook
 Allen key (provided with plasma display)
 Remove the eye-bolt caps (x ) at the left
and right of the rear panel.
 Attach the stand hooks wherever the eye-
bolt caps were removed.
 Attach the eye-bolt caps wherever the Stand
hooks were removed.
4. Install the display to the wall-hanging bracket.
 Remove the safety catch anchoring screw,
and remove the safety catch.
 Insert the stand hooks (x) on the display
into the notches of the wall-hanging
brackets, and lower the display straight
down.
Notches
(For horizontal
installation)
Notches
(For vertical installation)
Stand hook
Notches
(For horizontal
installation)
Notches
(For vertical
installation)
Horizontal installation Vertical installation
Safety catch
anchoring
screw
Safety catch
Safety catch
Safety catch
anchoring screw
Safety catch
anchoring screw
Safety catch
Safety catch
anchoring screw
English
(Bottom side)
Eye-bolt caps
Stand hook
