Installation
  Names and Functions of Parts
Magnet
Microphones
Tally Lamp
Lights red while the camera or microphone is active.
Camera Lens
Microphones
Stand

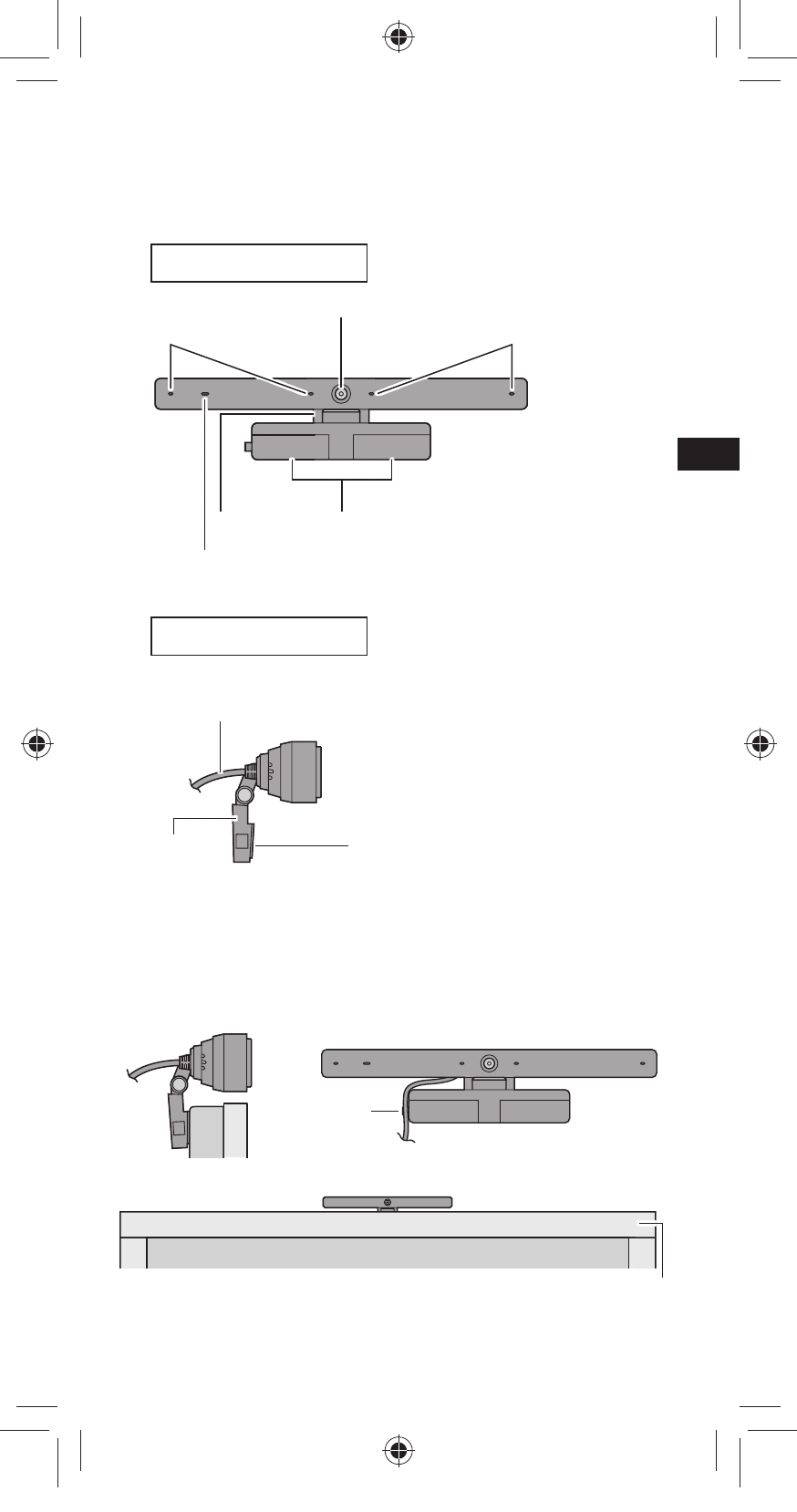

Camera Front View
USB Cable
Approx. 1.5 m (Approx. 4'11")
Stand Magnet
Camera Side View
  When installing the camera onto
the television
Attach magnets on the camera stand to the top of the rear of the TV.
If the rear of the TV doesn’t made from metal, please post the camera
stand with adhesive tapes.
Top of Display Panel
Cable
holder
(Example installation at centre of display panel)
