Assembling the pedestal
1
Place the stand base so that it is fl at.
To prevent damage to the stand base, place it on a
fl at fl oor or on a stand.
2
Attach and secure the stand pins.
(1) Insert the two stand pins into the top of the
stand base .
• The stand pins have a front and back.
(2) Firmly secure the stand pin fi xing screws
into bottom screw hole of the stand base .
A
G
A
D
D
Front
Bottom
screw hole
PROFESSIONAL INSTALLATION IS REQUIRED.
PANASONIC DISCLAIMS ANY PROPERTY DAMAGE AND/OR SERIOUS INJURY, INCLUDING DEATH
RESULTING FROM IMPROPER INSTALLATION OR INCORRECT HANDLING.

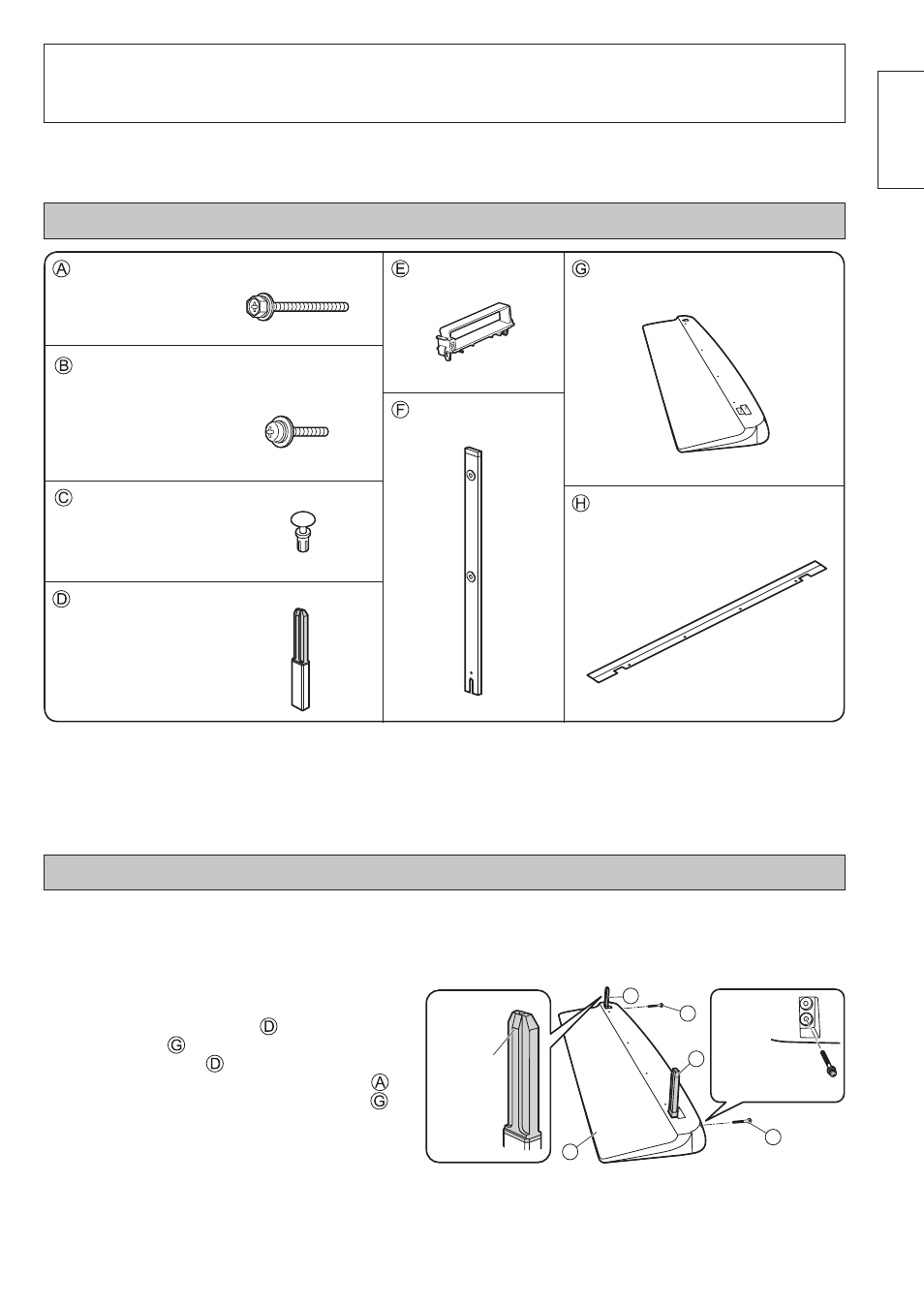

Parts for assembly
(Be sure to check the parts before assembling)
3
English
Stand pin fi xing screws (2)
M8 × 30
Stand pole fi xing screws (2)
Stand pole display fi xing screws (4)
Clampers (2)
Stand pins (2)
Stand poles (2)
Stand base (1)
Fixing pins (4)
Light-blocking panel (1)
M8 Ч 60
