15 GB
Ge
tting Star
te
d

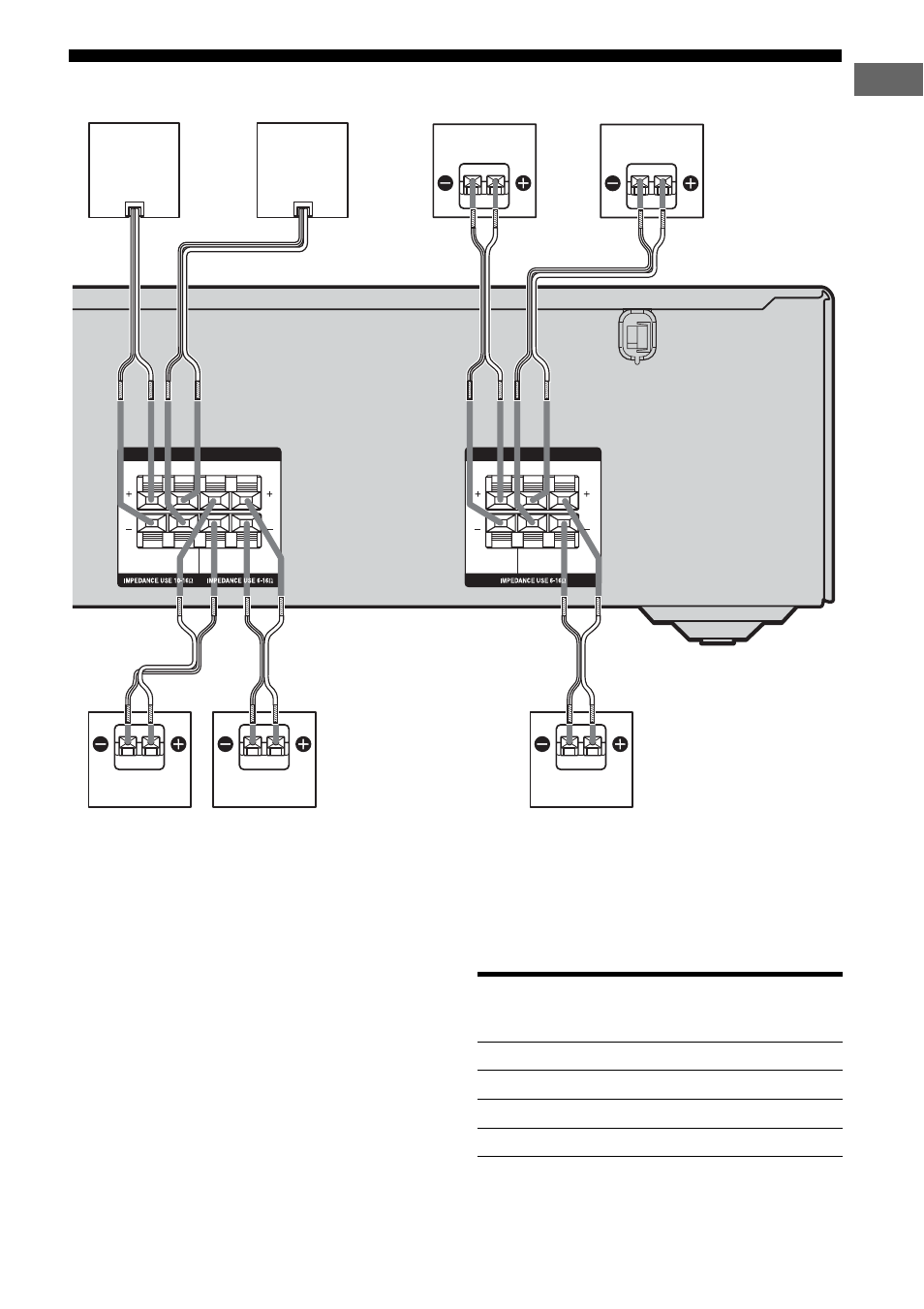

2: Connecting speakers
AFront speaker (L)
BFront speaker (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSub woofer
GSub woofer (HT-DDW685 only)
Tip
Use the supplied speakers to optimize the system’s
performance.
a)
Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
To connect the speakers
correctly
Check the speaker type by referring to the
speaker label* on the speaker.
* The sub woofer and center speaker does not have
the character on the speaker label.
L R
FRONT CENTER
L R
L R
SUB
WOOFER SURROUND
SPEAKERS SPEAKERS
L R
G B
A E D
C F
A Speaker cord (supplied)
a)
A A
A A A
Character
on speaker
label Speaker type Location of
speaker label
L Front left Bottom
R Front right Bottom
SL Surround left Bottom
SR Surround right Bottom
