Sample code strings

Sample Code Strings
Below are representative samples of code strings for the VPL-VW100. They can be used together with the
Protocol Manual to help insure that the correct protocol is being implemented in writing the strings. Included
are samples for Power ON and OFF and input selection commands, as well as additional information such as
Check Sum calculation and Port settings.
NOTE: Check Sum is arrived at by adding together bits 2-5 using OR
function.

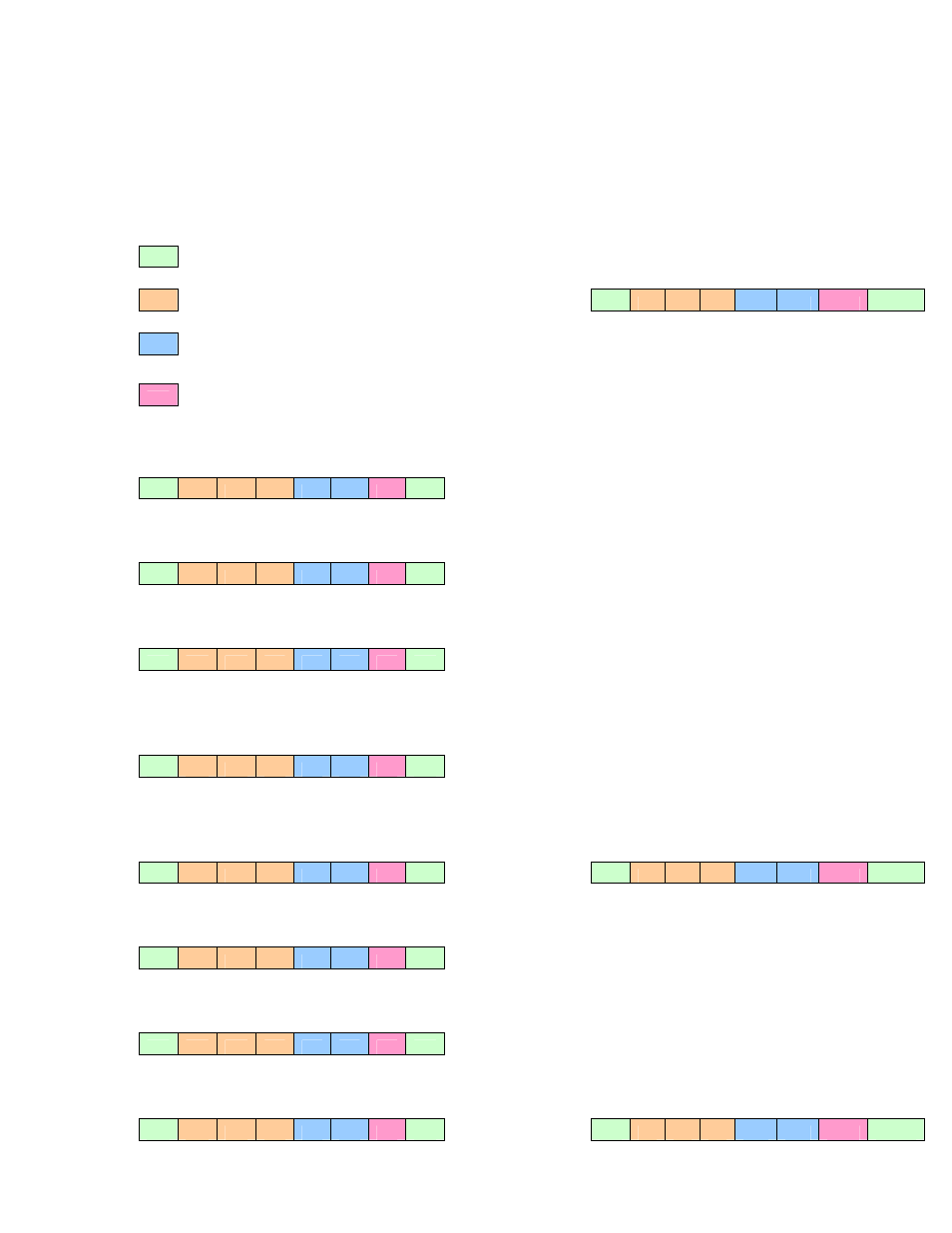

: Start Code / End Code
Power ON
: Command Category
Sample
A9
17
2E
00
00
00
3F
9A
0xA9,0x17,0x2E,0x00,0x00,0x00,0x3F,0x9A
: Data
Hex strings can be verified in Terminal program issued as numbers, not
ASCII, see above.
: Check Sum
Port setting is 38400, Parity even, stop bits 1, Hardware Flow control none,
send Hex bits
Power ON
Sample
A9
17
2E
00
00
00
3F
9A
Power OFF
Sample
A9
17
2F
00
00
00
3F
9A
Picture Mute ON
Sample
A9
00
30
00
00
01
31
9A
Red indicates verified string
Picture Mute OFF
Send
as
numbers
Sample
A9
00
30
00
00
00
30
9A
Input Video
Input DVI
Sample
A9
17
2A
00
00
00
3F
9A
Sample
A9
00
01
00
00
05
05
9A
Input SVideo
Sample
A9
17
5F
00
00
00
5F
9A
Input A
Sample
A9
17
2B
00
00
00
3F
9A
Input Component
Input HDMI
Sample
A9
17
2c
00
00
00
3f
9A
Sample
A9
00
01
00
00
04
05
9A
