9
+ - + -

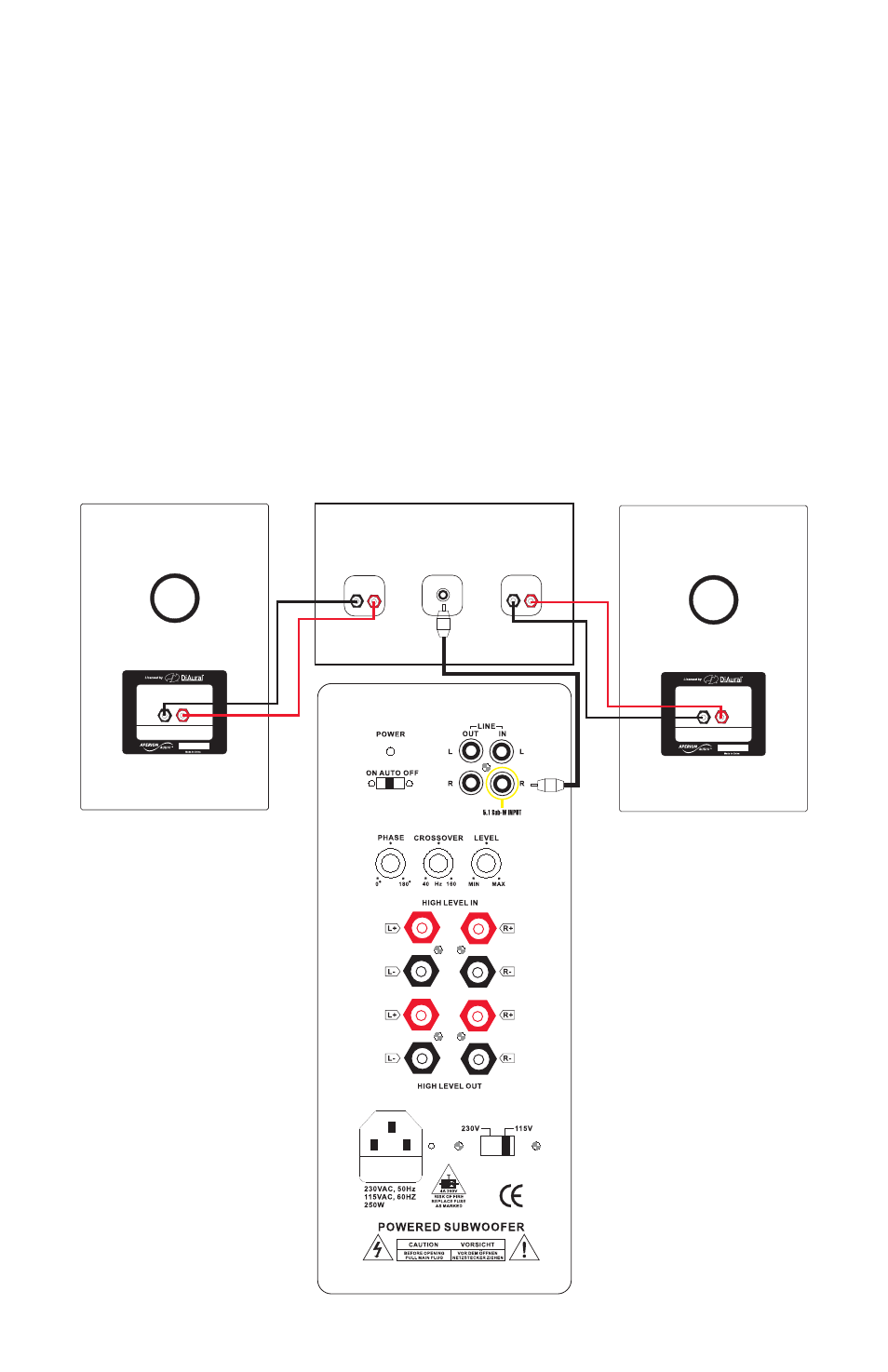

Left Front Right Front
Receiver
Processor/Amplifier
Left Right
- +
Sub Out
- +
SW-12 Amplifier Shown
Stereo Connection - Low Level Sub Output
This is the preferred connection method if your receiver has a
"Subwoofer Out" on its rear panel. Refer to your receiver or
amplifier owner's manual for specific hook-up information.
The powered subwoofer is connected to the receiver's subwoofer
output jack by a shielded audio signal cable with RCA plugs at
each end.
NOTE: Your subwoofer is supplied with two low-level inputs (L&R),
but if your receiver or processor has a single sub-out connector,
connect it to the input labeled “5.1 sub input” or you can use a
“y” plug to connect to both the left and right inputs. We recommend
use of a “y” plug which will give you a +3dB boost in output.
