Continued, Installing the exhaust kit – APC AP7003 User Manual
Page 14
10
Installing into
ceiling plenum,
continued
5. For permanent installation, cut five inches off the ceiling
tile so that the tile will lay flat in the grid.
6. For temporary installations, slide the ceiling tile tight
against the ceiling adapter.

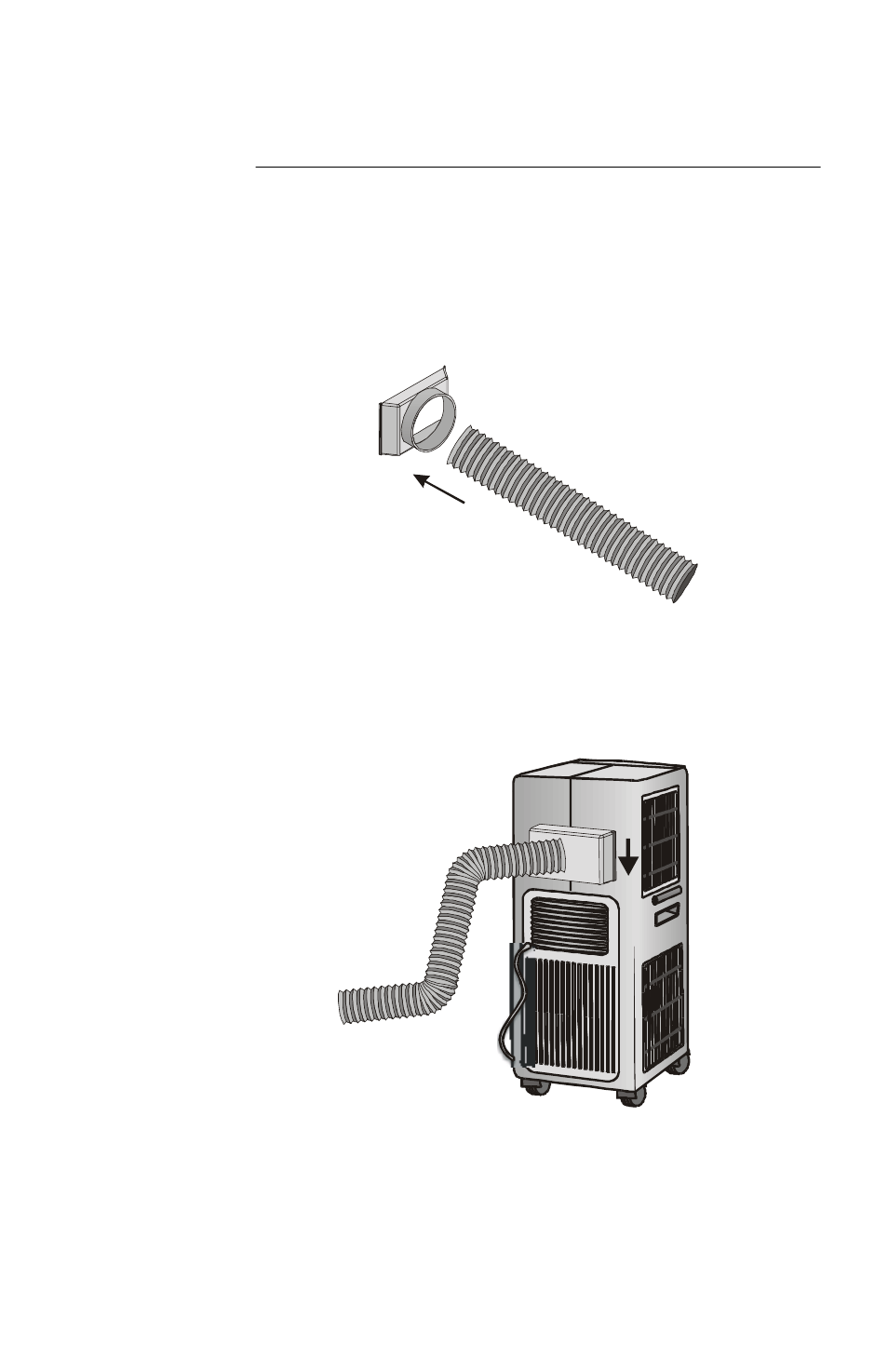

7. Screw the other end of the exhaust duct into the base flange
8. Slide the base flange onto the exhaust vent on the back of
the unit
