Sony KDL-42EX440 User Manual
Page 62
62
Step 5: Prepare the TV for wall mount installation
Follow the steps below to prepare for installing the TV.
1
Disconnect all the cables from the TV.
2
Detach the Table-Top Stand from the TV. For details, see page 58.
3

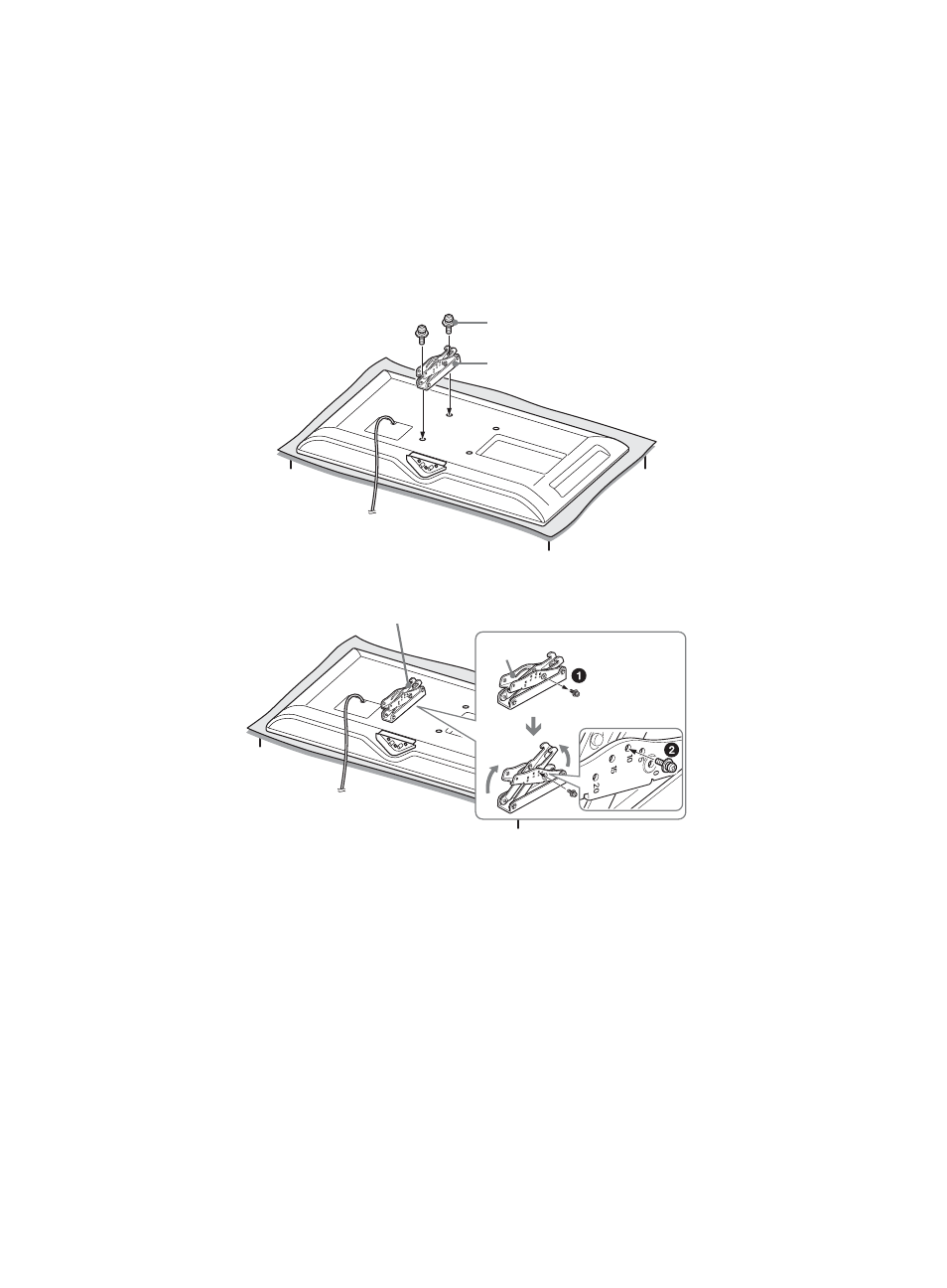

Align the holes on the left Mounting Hook with the corresponding holes on the rear of
the TV.
Secure them to the TV using two screws (supplied with SU-WL100).
4
Adjust the angle of the Mounting Hook.
Screw
(M4 × 12)
Mounting Hook
Mounting Hook
Arm
