KLV-S15G10
KLV-S20G10
2-630-165-11 (1)

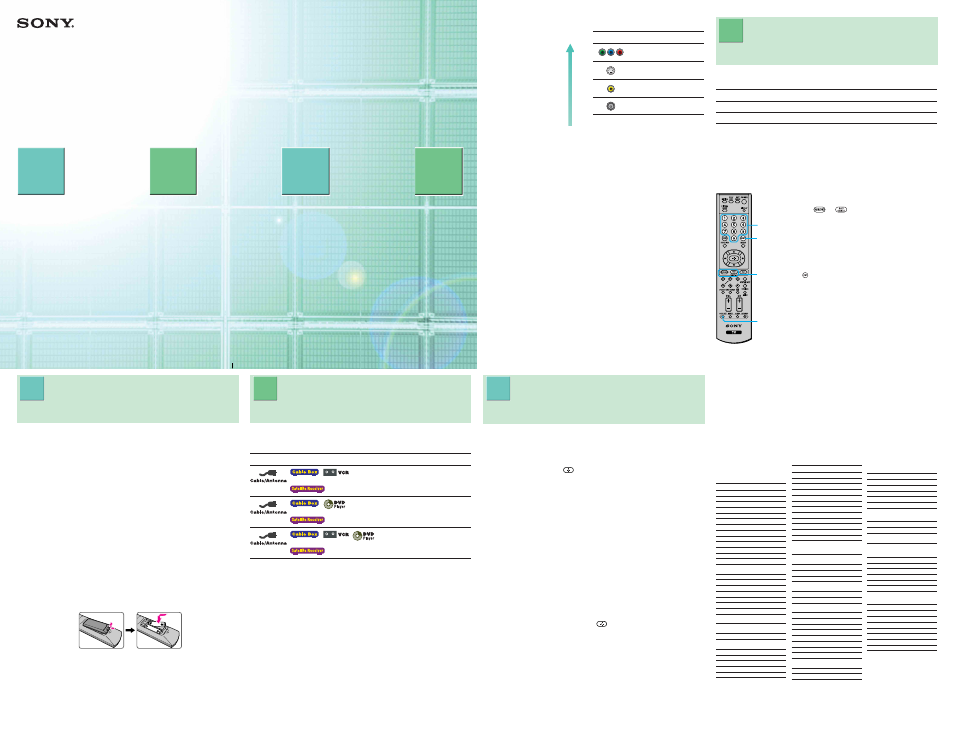

Quick Setup Guide
Sony Corporation © 2005 Printed in Taiwan
If your product is not working properly
DO NOT RETURN TO THE STORE.
For service and technical assistance
Call our Customer Information Service Center (Toll Free):
1-800-222-SONY (7669) for US residents.
1-877-899-SONY (7669) for Canadian residents.
Checking the
Supplied Accessories Programming
the Remote Control Connecting Your TV
(See reverse side) Running Initial
Setup
Please follow the steps to setup your TV:
zzzzzzzz zzzzzzzz zzzzzzzz
1 2 3 4
• Remote control (RM-Y1104) (1) and size AA batteries (2)
• 75-ohm coaxial cable (ferrite core attached) (1)
• AC power cord (1)
• AC power adaptor (1) (KLV-S15G10 only)
• VESA adaptor: bracket A (1), bracket B (1) and screws (2)
(KLV-S15G10 only)
• Operating Instructions
• Quick Setup Guide
• Leaflet (Installing the Wall-Mount Bracket to the TV,
KLV-S20G10 only) (1)
• Warranty Card
1 Checking the
Supplied Accessories
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the e and E on
the batteries to the diagram inside the remote control’s battery
compartment.
• See the “Cables Required” chart that appears with the diagram to
determine which cables you’ll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
• Turn off and unplug all components before making connections.
• If you are connecting a digital cable box, you’ll need a special bi-
directional splitter that’s compatible with your cable box. Contact
your cable provider for details.
• Review the following chart to determine which diagram to use to
connect the components in your system:
2 Connecting Your TV 3 Running Initial Setup
1 Press POWER to turn on the TV.
The Initial Setup screen appears.
2
Press V or v on the remote control to select the on-screen display
language. Then press .
The message “First please connect cable/antenna” appears.
Note
By default, Auto Program is set to scan cable TV channels.
3 Press CH+ to start Auto Program.
Auto Program automatically creates a list of receivable channels.
When finished, the lowest numbered channel is displayed. When all
the receivable channels are stored, the “Show/Hide Channels” menu
appears.
To scan available VHF/UHF antenna channels instead of the cable
TV channels
1 Press MENU, then go to Channels menu.
2
Set Cable to Off.
3 Start Auto Program by pressing .
To perform Auto Program again, follow the above instructions.
Depending on your signal source, be sure to set Cable to On or Off
accordingly (see Operating Instructions).
Note
The Initial Setup menu will appear each time the TV is turned on until you complete the
scanning for the available channels.
Making Video Connections
Your TV includes
several types of video
inputs. Use the inputs
that are available on
your components that
provide the best
video performance, as
shown in the table on
the right.
Additional Connections
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you’ll need to connect the satellite antenna. If you
have an A/V receiver, you’ll need to connect speakers.
Note
The connection diagrams shown on the reverse side are recommendations only; other
possible solutions may exist. Connections that include an A/V receiver can often be very
complex, so check your A/V receiver’s instruction manual for additional details.
Best Video
Performance
* Support 480i, 480p
Connector type
Component video*
S VIDEO
Composite video
RF/Coaxial
3
4
2
1
4 Programming the
Remote Control
The remote control is preset to operate Sony brand video equipment.
Sony Equipment Programmable Code Number
VCR/DVD 301 (Sony VCR)
SAT/CABLE 801 (Sony Sattellite Receiver)
Follow the steps below to program your TV’s remote control to
operate non-Sony video equipment.
Using the code list below, find the three-digit code number for the
manufacturer of your equipment. (If more than one code number is
listed, use the number listed first.)
1 Press CODE SET.
2 Press the or FUNCTION button you want
to program on the remote control. The selected
FUNCTION button (VCR/DVD or SAT/CABLE)
will flash.
3 Enter the three-digit manufacturer’s code number
using the --9 buttons while the button is lit
(approximately 10 seconds).
4 Press button.
When the programming is correct, the selected
FUNCTION button will flash twice slowly, and
when not, flashes five times quickly.
To check if the code works
Aim your TV’s remote control at the equipment, and
press the VCR/DVD and/or SAT/CABLE (POWER)
button that corresponds with the equipment. If the
equipment responds, the programming is completed.
If not, try the next code listed.
Notes
• If you enter a new code number, the code number you previously
entered at that setting is erased.
• If no code is input within the above specified time, or an invalid or
incorrect code number is input, the remote control automatically
goes back to the previous setting.
• In some cases, you may not be able to program your remote control
to operate other equipment. In such cases, use the equipment’s own
remote control.
• Dead batteries or removing the batteries may cause the
programmable codes to be lost and revert back to factory settings.
Reprogramming the codes may be necessary.
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303, 348
Admiral (M. Ward) 327
Aiwa * 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
314, 336, 337
JVC 314, 336, 337, 345,
346, 347
Kenwood 314, 336, 332, 337
LXI (Sears) 332, 305, 330, 335,
338
LG 332
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Manufacturer Code
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309,
311, 312, 313, 310,
329
Realistic 309, 330, 328, 335,
324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321, 335,
323, 324, 325, 326
Sharp 327, 328
Shintom 315
Signature 2000 338, 327
(M. Ward)
SV2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335, 331,
332
Yamaha 314, 330, 336, 337
Zenith 331
DVD Players
Manufacturer Code
Sony 751
Panasonic 753
Pioneer 752
RCA 755
Toshiba 754
Cable Boxes
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224, 225,
226
Jerrold/G. I./ 201, 202, 203, 204,
Motorola 205, 206, 207, 208,
218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Satellite Receivers
Manufacturer Code
Sony 801
General Electric 802
Hitachi 805
Hughes 804
Panasonic 803
RCA/PROSCAN 802, 808
Toshiba 806, 807
For these components See reverse side
or
or
or
A
B
C
* If an Aiwa VCR does not
work even though you enter
the code for Aiwa, enter the
code for Sony instead.
