Sony KV-36FS320 - Manual

KV-36FS320
MODEL:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT: POWER
REQUIREMENTS:
POWER
CONSUMPTION: 36" Wega
®
Monitor/Receiver
40 1/4 " x 30" x 25 1/4"
223 lbs
120VAC
60Hz
200w
1w(stby)
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

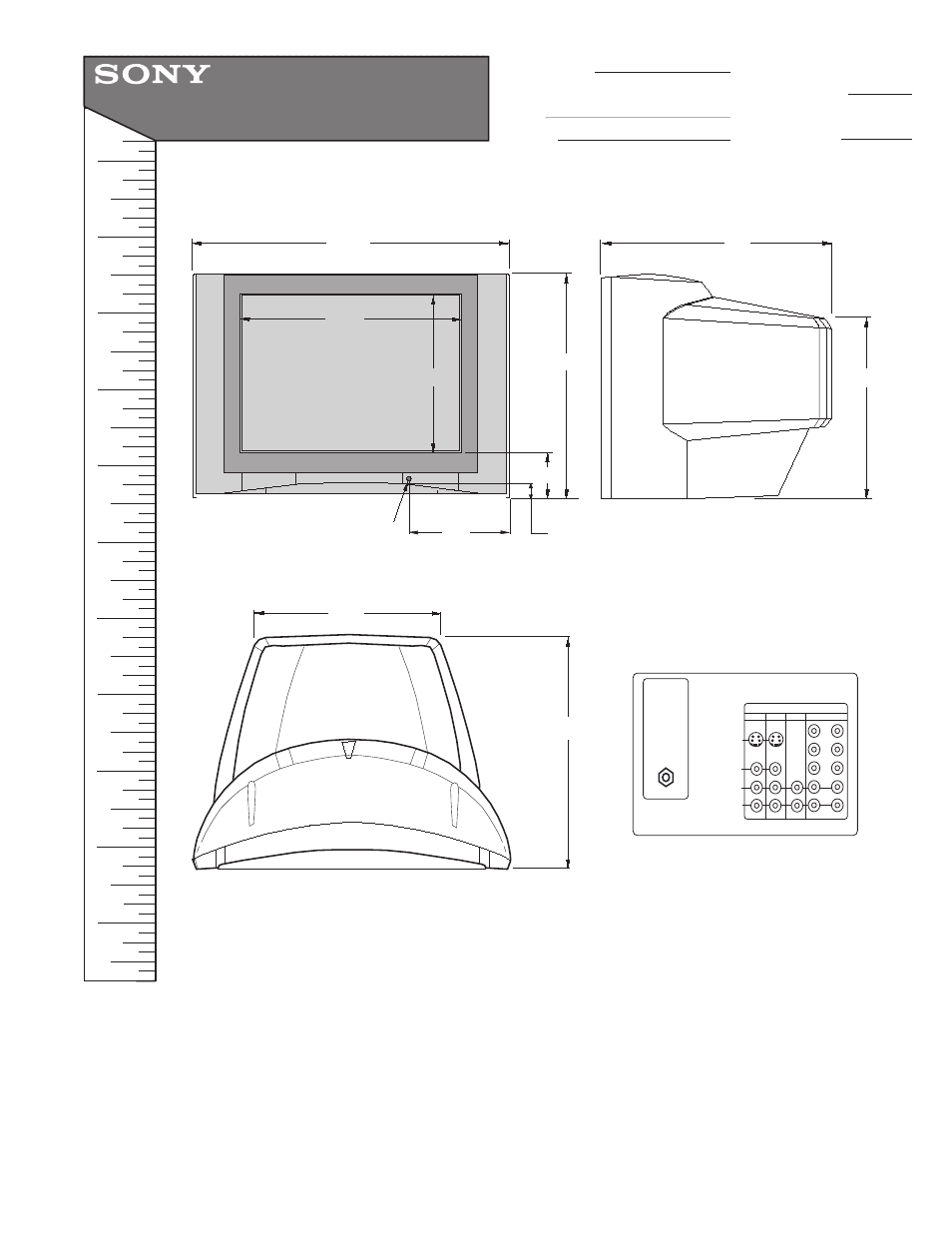

FRONT VIEW
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
RM-Y180 REMOTE CONTROL
40 1/4"
30"
SIDE VIEW
TOP VIEW
IR RECEIVER
4 3/4"
29 1/4"
22 1/2" 20 1/2"
25 1/4"
25 1/4"
JACK PACK
S
P
E
A
K
E
R
S
S
P
E
A
K
E
R
S
13 1/8" 1 1/2"
25 1/4"
Video
VIDEO IN
Audio
L MONO
R
S Video
1 MONITOR
OUT COMPONENT IN
Y
Pb
Pr
3
VHF/UHF
VIEWING
AREA
