Installing and Connecting the TV
US

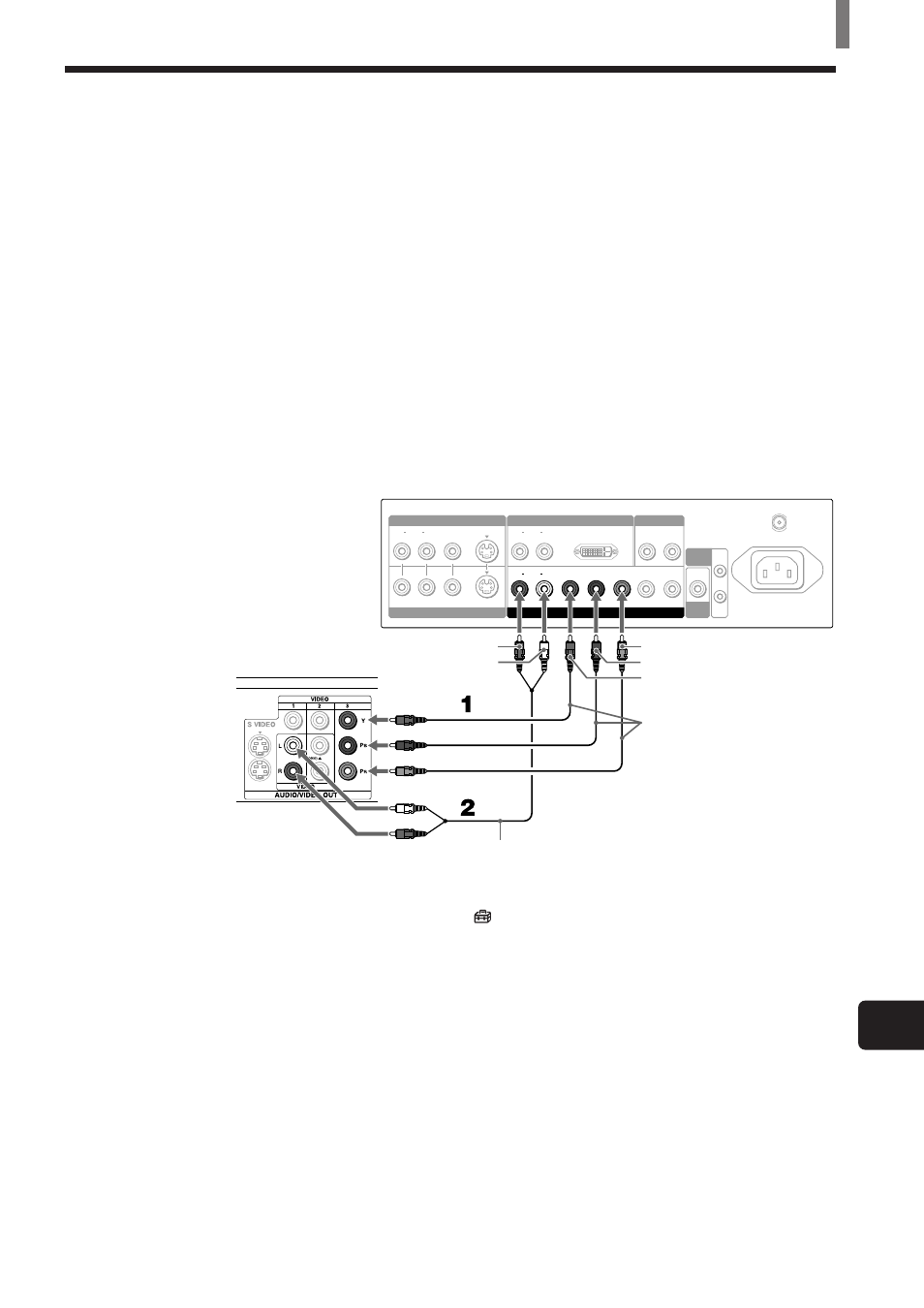

Connecting a Digital TV Receiver
Disconnect all power sources before making any connections.
1
Using three separate component video cables, connect the Digital TV
Set-top box’s Y, P
B
and P
R
jacks to the Y/G, P
B
/B and P
R
/R jacks on the
TV. Use the VIDEO IN 4 connection.
Note
DVI-HDTV connection or component video (Y, P
B
, P
R
) connection is necessary to view 480p,
720p, and 1080i formats. Note that this TV displays all format types of picture in a resolution
of 852 dots
× 1024 lines (KE-32TS2U), or 1024 × 1024 (KE-42TS2U).
2
Using an AUDIO cable, connect the Digital TV Set-top box’s Audio
OUT jacks to the TV’s AUDIO IN jacks.
Note
The Y, P
B
and P
R
jacks do not provide audio, so audio cables must be connected to provide
sound.
Note
Select “Video 4 Mode” in the (Initial Setup) menu, then select “Y/PB/PR” or “RGB”
depending on the Digital TV Set-top box you connect (see page 32).
HD VD
IN
OUT
P B /B Y/G P R /R L R AUDIO
L R
VHF/UHF
AC IN
AUDIO OUT
VIDEO IN 4
SUB
WOOFER
CONTROL
S
VIDEO L R AUDIO L R AUDIO S VIDEO
VIDEO IN 1 VIDEO IN 3
VIDEO IN 2
DVI-HDTV
VMC-10HG (not supplied)
AUDIO-L (white)
AUDIO-R (red)
Digital TV Set-top box
RK-74A (not supplied)
Rear of TV
P
R
/R
P
B
/B
Y/G
