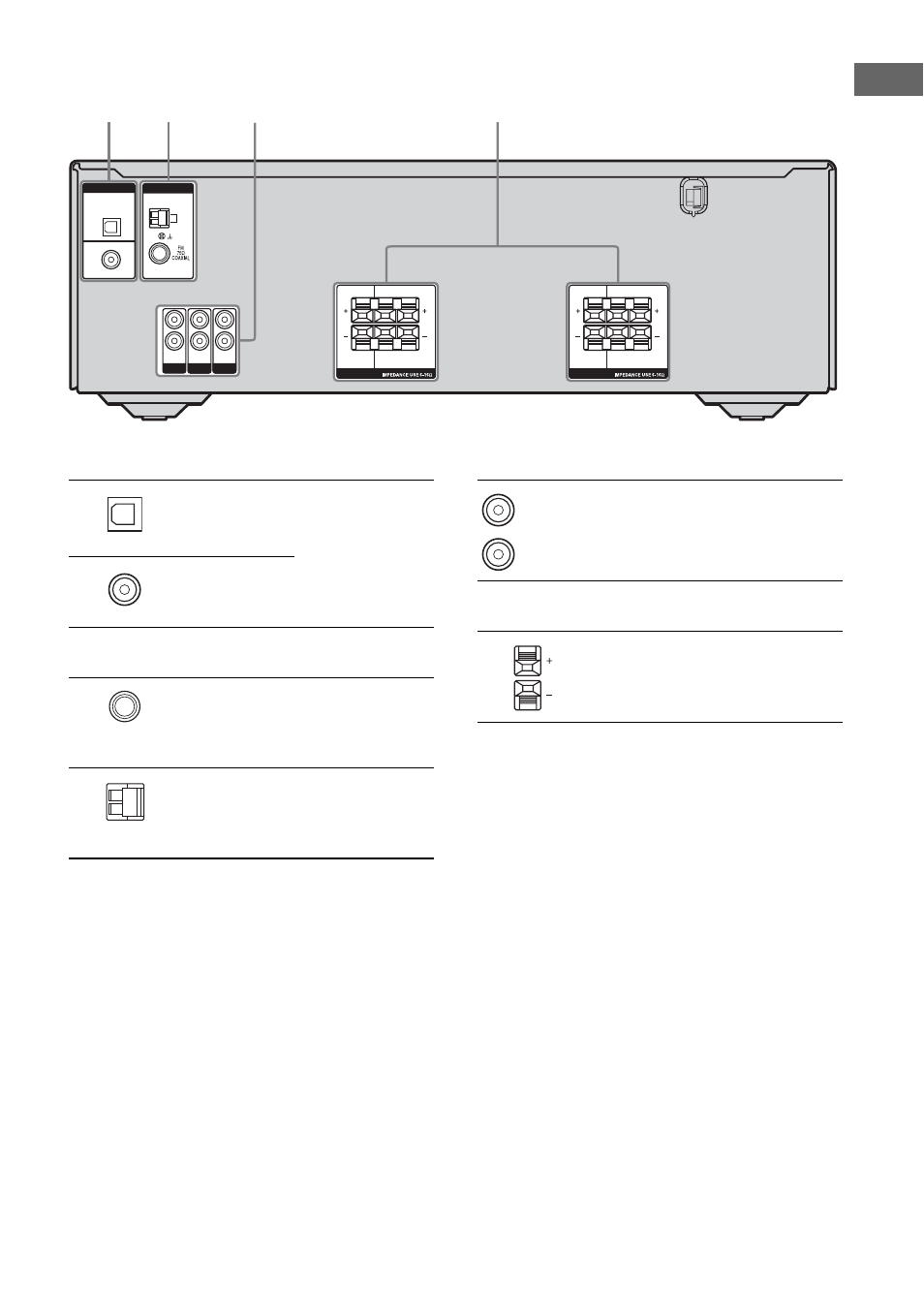

Rear panel
1 2 4 3
SUB
WOOFER
DVD
IN
DIGITAL
OPTICAL
VIDEO 2/
BD IN
COAXIAL
ANTENNA
AM
SA-CD/CD
L
R
AUDIO IN
TV
AUDIO IN
SAT
AUDIO IN
FRONT CENTER
L R
L R
SPEAKERS
SURROUND
L R
L R
SPEAKERS
A DIGITAL INPUT section
OPTICAL
IN jack Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 17).
COAXIAL IN
jack
B ANTENNA section
FM
ANTENNA
jack Connects to the
FM wire antenna
supplied with this
receiver (page 19).
AM
ANTENNA
terminals Connects to the
AM loop antenna
supplied with this
receiver (page 19).
C AUDIO INPUT section
AUDIO IN
jacks Connects to a CD
player, etc. (page
15).
D SPEAKERS section
Connects to the
speakers and sub
woofer (page 13).
White (L)
Red (R)
