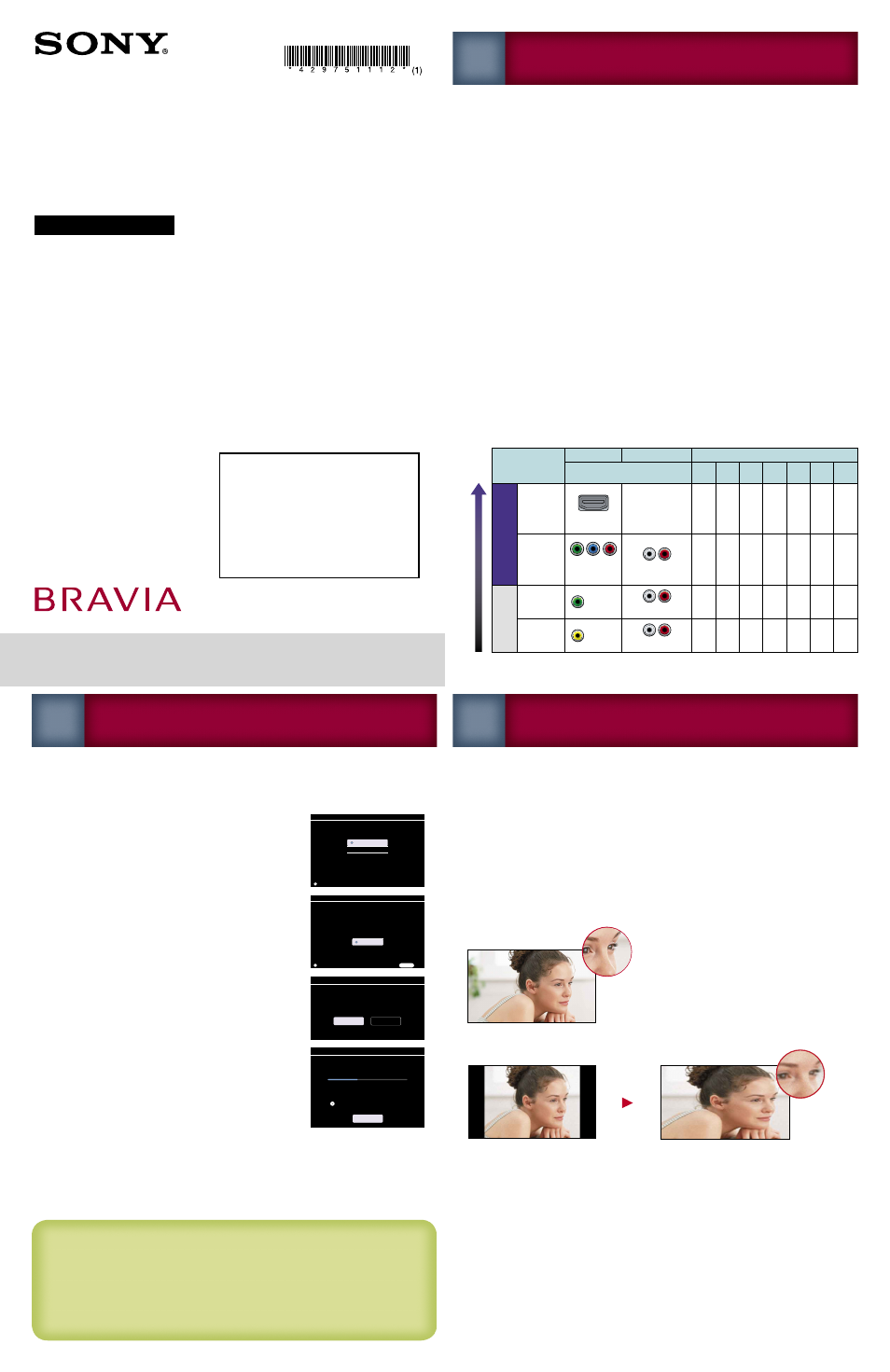

Sony KDL-55BX520 - Manual

KDL-55BX520
4-297-511-12(1)
Initial Setup instructions are displayed on the screen when your BRAVIA is powered on
for the first time.
1
Select the language for the OSD (on screen display).
2
Select the type of use.
3
Connect either cable or antenna to your TV. You can
connect both using an A-B RF switch (not supplied).
If you are not using the CABLE/ANTENNA connection to TV
(for example, if using a cable or satellite box), you can cancel the
Auto Program by selecting Cancel.
4
Channels of the signal source (cable or antenna)
connected in step 3 are automatically scanned and
detected.
If you did not follow the Initial Setup screen the first time
you turned on your TV, refer to your Operating Instructions
Manual.
To change the signal source setting (cable to antenna or vice
versa), press HOME and select Settings, Channel, Signal
Type to select signal source type, and then perform Auto
Program.
~
•
Select Your Content Source
Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or Blu-ray
Disc; or connecting to your PC, you need to choose the correct input using your remote
control:
Press the INPUT button repeatedly until your selection is highlighted on-screen.
Adjust Screen Shape and Aspect Ratio
High Definition and Standard Definition signals are transmitted with different aspect
ratios (the width-to-height ratio of the image).
The 16:9 aspect ratio (common to most HD signals) looks perfect on your BRAVIA.
The boxy 4:3 aspect ratio (common to most SD signals) must be adjusted to fill the screen.
Press the WIDE button on your remote control to display the Wide Mode setting of
your preference.
Customize Sound and Picture Quality
You can choose optimum sound and picture settings to match the content you are
displaying on your TV:
Press the remote control’s HOME button, then select the Picture and Sound settings to
adjust the picture and sound quality of your content.
Refer to your Operating Instructions Manual for more information on adjusting or
customizing your settings.
■
■
■
Watching Your TV 3 Running Initial Setup 2
Your New
BRAVIA®
LCD HDTV
Congratulations! Your new BRAVIA® TV opens the door to the “Stunning HD Experience”.
This guide will explain how to get the most from your new High Definition TV.
Please take these steps before you power up your BRAVIA:
Register online at: http://productregistration.sony.com (from U.S.A.)
http://www.SonyStyle.ca/registration (from Canada)
Make sure you’ve removed all accessory contents from packaging.
Install 2 AA batteries (supplied separately) in your remote control.
Determine whether you will mount your TV on a wall or place it on the Table-Top
Stand. Sony wall-mounting brackets are designed to provide the best fit.
Give your TV 2 3 /
8
inches (6 cm) of space behind it to properly ventilate.
You must get HD programming to experience the
stunning detail of HDTV.
The quality of the image you see on your BRAVIA can only be as high as the quality of
the signal it is receiving.
Contact your cable, satellite or HD Service provider to upgrade your service to HD.
Receive over-the-air HD broadcasts with an HD-quality antenna (www.antennaweb.org)
and discover the wealth of entertainment now available on super-high-resolution Blu-
ray Disc™.
To learn more about HDTV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.SonyStyle.ca/hd
Connecting to Your TV
Your BRAVIA TV must be properly connected to components such as sound system and
cable or satellite box.
Turn off and unplug all components before making connections.
Do not turn on the TV until connection setup is completed.
See reverse side of this poster for sample connection diagrams.
Audio/V
ideo P
er
for
manc
e
INPUT
Connector
VIDEO AUDIO High or Standard Definition Quality
Connection
1080/
24p
1080p 1080i 720p 480p 480i PC
HD
HDMI 1
HDMI 2
HDMI connection*
HDMI cable carries both
video and audio signals.
(*When HDMI is connected to
DVI with an adapter, a separate
audio L/R is necessary.)
z z z z z z z
COMPONENT
Component
connection Audio L/R
z z z z z
SD
VIDEO 1
Composite
video
connection Audio L/R
z
VIDEO 2
Composite
video
connection Audio L/R
z
■
■
■
■
■
■
■
■
■
■
1
To Do List
When the Initial Setup is completed, consider carrying out these items:
Set Closed Captions (CC) Label Video Inputs
Set Parental Lock Set Speakers
Show/Hide Channels
For details, refer to your BRAVIA Operating Instructions Manual.
4-297-511- 12(1)
Printed in Mexico
Sony Customer Support
U.S.A.: www.sony.com/tvsupport
Canada: www.sony.ca/support
United States
1.800.222.SONY Canada
1.877.899.SONY
Please Do Not Return
the Product to the Store
LCD
Digital Color TV
Quick Setup Guide
© 2011 Sony Corporation
Confirm Confirm
Please select your language:
English
Español
Français
Initial Setup
OK Cancel
Initial Setup
First please connect cable or antenna.
Allow 50+ minutes for completion.
Start auto program now?
Cancel
Initial Setup
Analog Channels Found: 106
Digital Chennels Found: 24
Searching...
Please wait. Allow 50+ minutes for completion.
Press to cancel.
KDL-55BX520
Please select the type of use for this TV.
"Retail" optimizes the picture for store display. "Home"
optimizes the picture for normal home use.
Retail
Home
Initial Setup
Confirm Confirm RETURN Back
