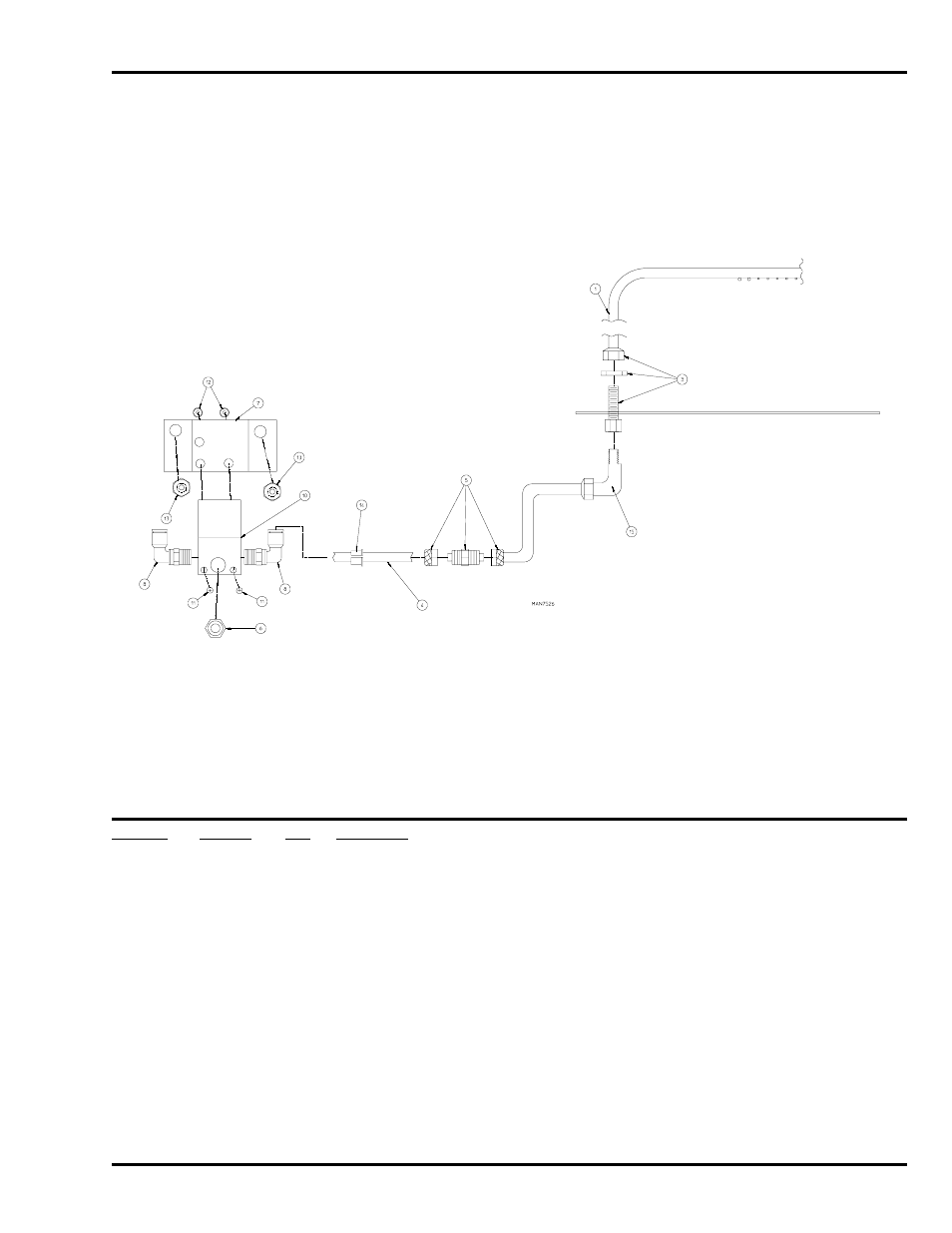

Air Jet Assembly
For Models Mfd. as of April 2, 2004
Illus. No. Part No. Qty. Description
1 859401 1 Air Jet Tubing II
2
3
143259 1 Bulkhead Fitting, 1/4 Tube x 1/8 F.P.T.
4 143115 4’ 1/4” Dia Poly-Flo Tube
5 143154 1 1/4 Poly Union
6 143250 1 1/8 M.P.T. Brass Plug
7 330987 1 Bracket
8 143149 2 1/4 Poly x 1/8 M.P.T. 90° Elbow
9
10
822734 1 Air Jet Solenoid
11 150002 2 #6-32 x 1 Phillips RH MS PLTD
12 151000 2 #6-32 Pal Nut Plated
13 152014 2 1/4-20 with 3/4 Free Spin Wash Nut
14 121300 1 Open / Closed Bushing
15 143277 1 1/4 x 1/8 M.P.T. Elbow
