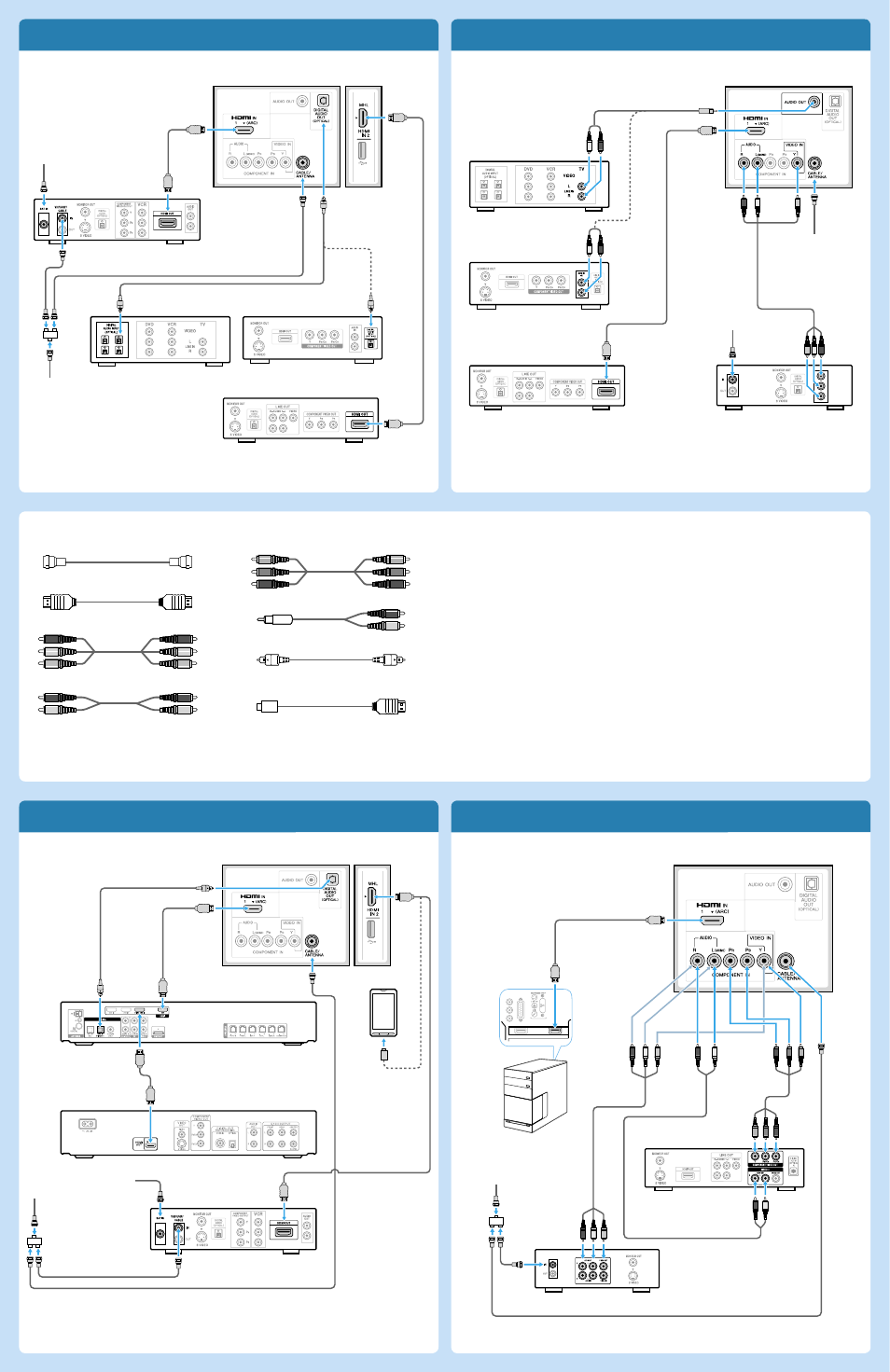

Basic Connection with HD Cable Box
Rear of TV
Cable/
Antenna
SAT (dish)
Splitter
HD Cable Box
or HD Satellite Receiver
Home Theater System A/V Receiver
Blu-ray Disc/DVD
Side Panel
Basic Connection with SD Cable Box
HD Antenna
Rear of TV
A/V Receiver
Home Theater System
Blu-ray Disc/DVD
Cable/SAT (dish)
SD Cable Box or
SD Satellite Receiver
yellow
plug to
VIDEO IN
HD BRAVIA® Sync™ Basic Connection
Rear of TV Side Panel
SAT (dish)
Cable/Antenna
Splitter
HD Cable Box or
HD Satellite Receiver
* 1 A/V Receiver
* 1 Blu-ray Disc
MHL Device
* 2
PC Connection with SD VCR/DVD
Rear of TV
Splitter
PC
Cable/Antenna
VCR
yellow
plug to
VIDEO IN
DVD
Required Cable Types for Connection
HDMI
Composite
Audio (L/R)
Component
Mini-Pin-to-Audio (L/R)
MHL
Coaxial
Digital Optical Audio
Notes on Connection:
Your TV is equipped with multiple HDMI inputs; connect your incoming signal
source (HD Cable Box, HD Satellite Box, or DVD) with HDMI/MHL or
component video for the best possible picture quality.
Connecting a PC to Your BRAVIA® TV
Press PC’s FUNCTION Key + Select Output to transmit to TV.
Refer to your BRAVIA® Operating Instructions Manual for more information.
■
■
■
* 1 Signifies a BRAVIA Sync capable device.
* 2 The optical connection is only needed for A/V receivers that do not support ARC
(Audio Return Channel).
