Sony KDL-42XBR950 - Manual

MODEL:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
KDL- 42 XBR 950
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT: POWER
REQUIREMENTS:
POWER
CONSUMPTION: 42" Flat Panel
LCD TV
53 1/8 " x 27 3/8 " x 4 1/8 "
Approx 67 lbs
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • www.sony.com/dn
120V AC
60Hz

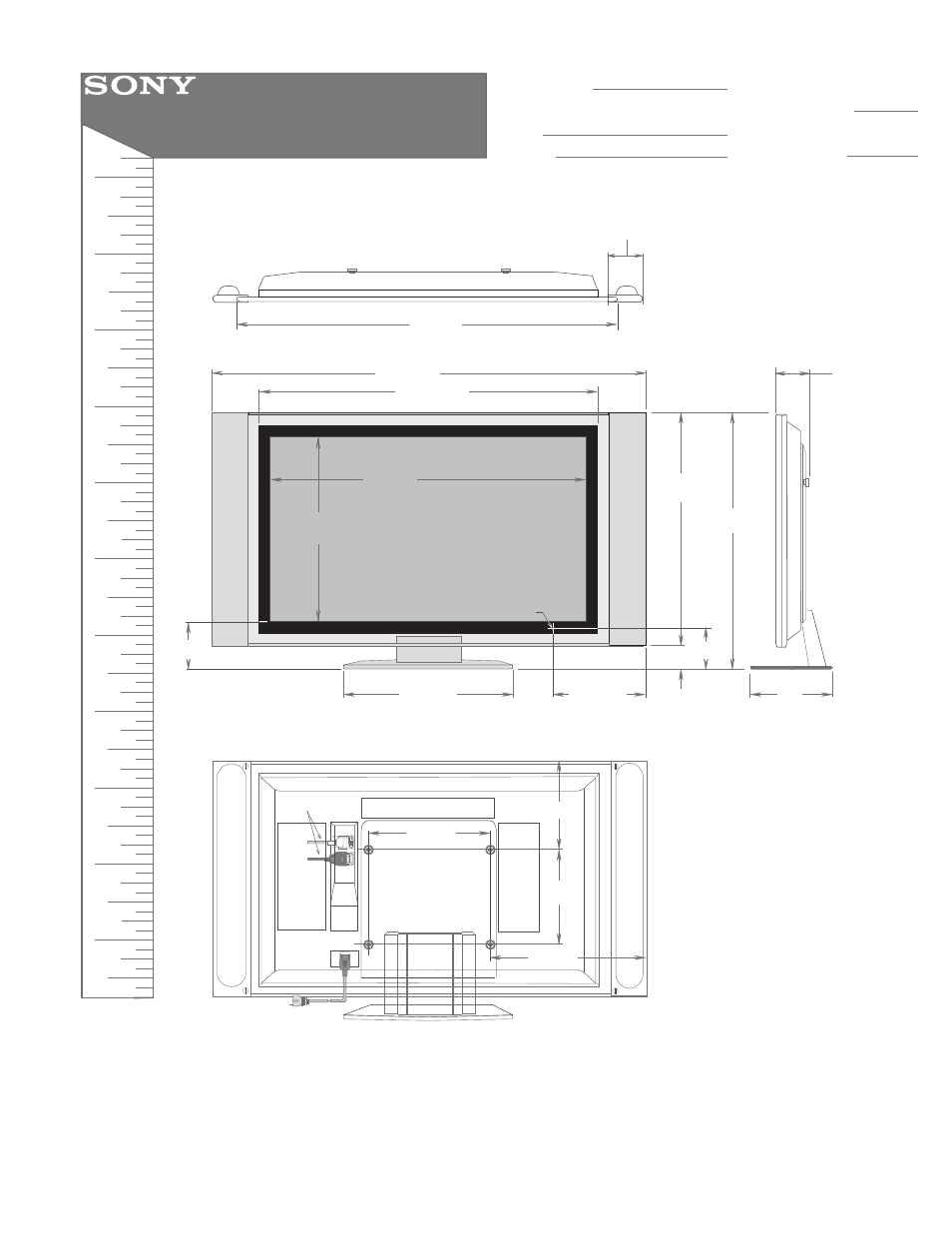

TOP VIEW
SIDE VIEW FRONT VIEW
53 1/8"
27 3/8"
RMY- 914 REMOTE CONTROL
w/supplied MDB-XBR 950
36 3/4"
20 3/4"
S
P
E
A
K
E
R
S
240 w
1.5w stby
3 1/8"
40 5/8"
15 1/2"
MOUNTING HOOKS
12 1/4"
13 3/8"
AC
IN
8"
S
P
E
A
K
E
R
S
4 7/8"
4 1/8 "
9"
30 1/2"
BACK VIEW
IR RECEIVER
VENTILATION
6 1/2"
12 3/8"
5 3/8"
To Media Box
VENTILATION VENTILATION
VIEWING
AREA
45 1/2"
Width of panel w/speakers detached
19 7/8"
