38
For SU-WL500
Step 1: Checking the parts required for the installation
Open the Wall-Mount Bracket package and check the contents for all required parts along with the
Instructions.
Step 2: Deciding on the installation location
Decide where you want to install your TV. Refer to the TV installation dimensions table.
Refer to the Instructions for SU-WL500.

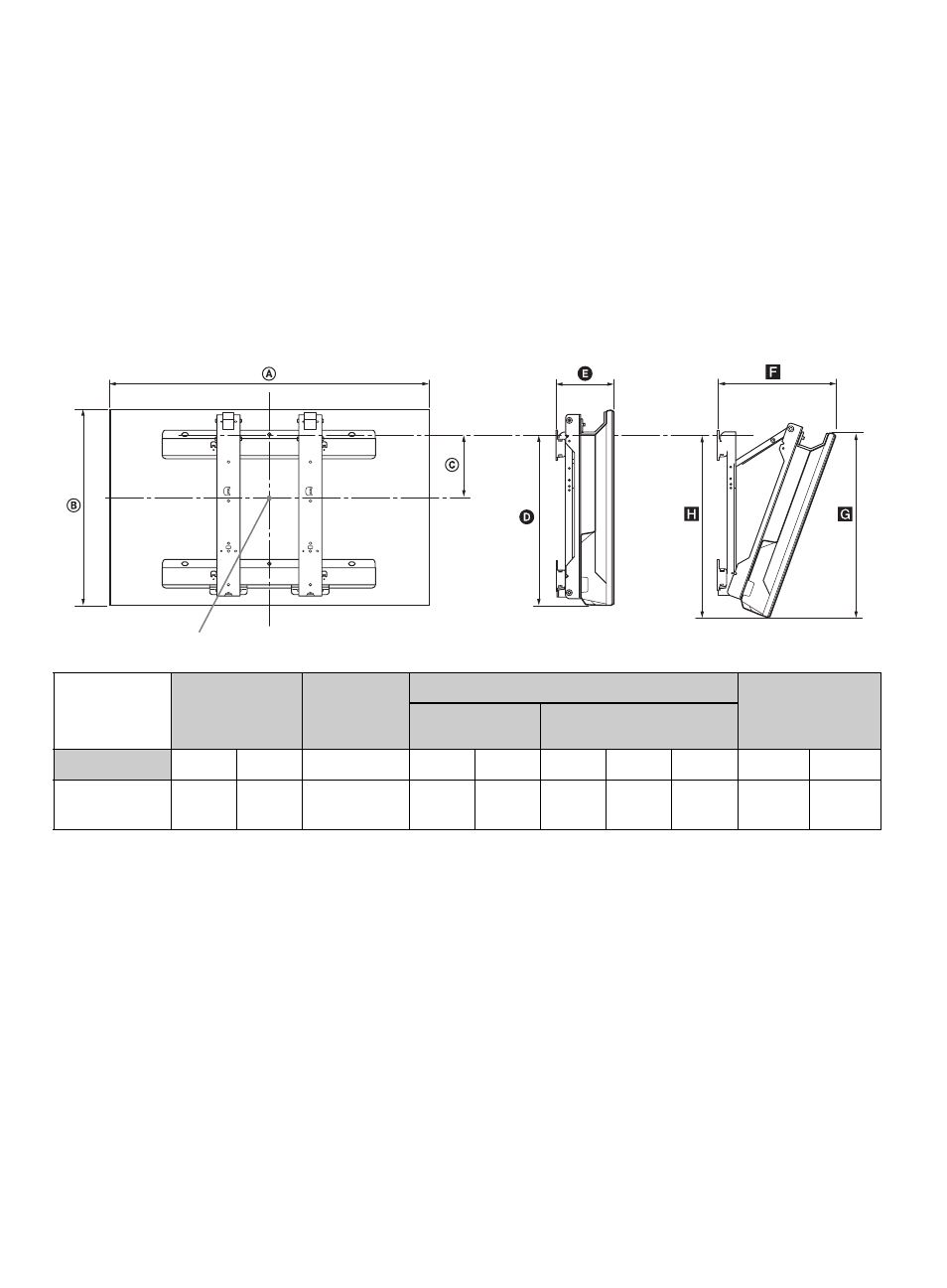

Dimension Table
Figures in the above table may differ slightly depending on the installation.
CAUTION
The wall that the TV will be installed on should be capable of supporting a weight of at least four
times that of the TV. Refer to your TV’s operating instructions for its weight.
Step 3: Installing the Base Bracket on the wall
Refer to the Instructions for SU-WL500.
Unit: mm
(inches) TV
Dimensions Screen
center
dimensions Length for each mounting angle Weight
Angle (0°) Angle (20°)
TV Model A B C D E F G H TV ×4
KDL-32BX330/
KDL-32BX331 772
(30 1 / 2 )
484
(19 1 / 8 )
166
(6 5 / 8 )
419
(16 1 / 2 )
142
(5 5 / 8 )
287
(11 3 / 8 )
457
(18)
453
(17 7 / 8 )
5.8 kg
(12.8 lb.)
23.2 kg
(51.2 lb.)
Screen center point
