10 Stratford Tf & Ti Multifuel Boiler Stoves
OPERATING INSTRUCTIONS
Step 4 Remove the glass completely. Store glass-
retaining clips and white gasket (if sound) safely
for re-use.
Step 5 Follow this procedure in reverse to fit
replacement door glass or gasket.

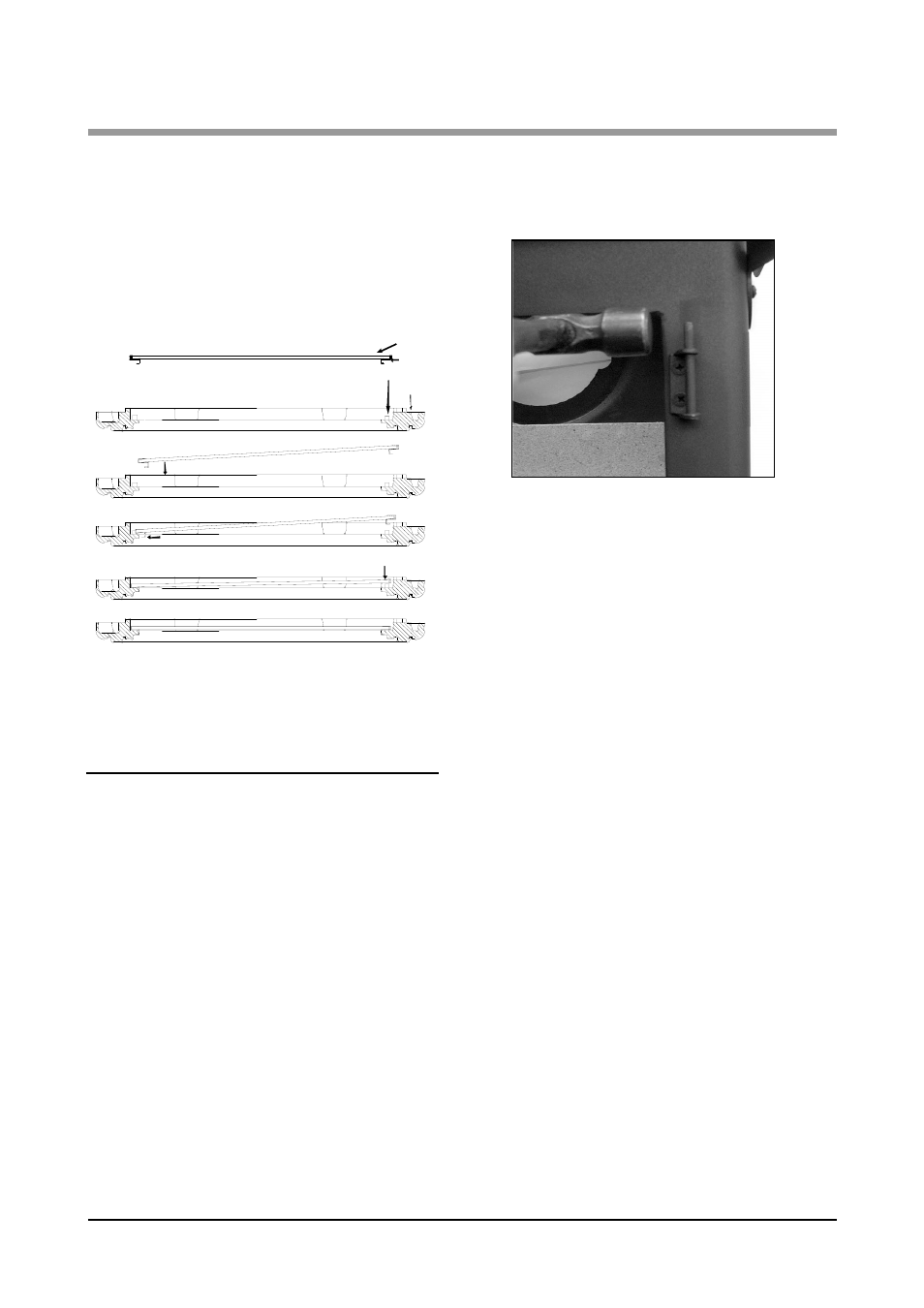

Fig. 6
DOOR ADJUSTMENT
The catch can be adjusted by sharply tapping the
catch on the inside of the door.
Once the appliance has been under fire for a period
of time the fire door may appear to have moved out
of alignment with relation to the door aperture or
catch on the door interlock mechanism. This is
quite normal and due to the settling of the casing.
The fire door can be re-aligned by the user as
follows:
•When the appliance is cold, open the fire door so
that it is at a right angle to the front face of the fire.
•Lift the fire door up off the hinges.
•Gently tap the two hinge pins in a direction to
compensate for the misalignment.(fig 7)
Fig. 7
•Refit the door and check to ensure it now sits
square to the body; if not repeat above steps.
Raising the door as follows:
•When the appliance is cold, open the fire door so
that it is at a right angle to the front.
•Lift the fire door up off the hinges.
•Drop one washer on the top and bottom hinge pin.
•Refit the door and check to ensure door is free of
the interlock. If not remove and repeat fitting
second washer.
FUEL RETAINER BARS
Fuel retainer bars are supplied with the fires.
For wood burning, 1 fuel retainer bar is used,
affording a better view of the fire. Slide and lift the
bar until it is clear of the guides at each side, and
remove through the fire door opening.
The bars are symmetrical and of even lengths
making incorrect fitting impossible.
Note: This operation should only be carried out
when the appliance is unlit and cold.
GASK ET
FIRE DOOR
GLASS
GL ASS CLIP
