HT-C800DP 4-247-292-11(1)
14 GB

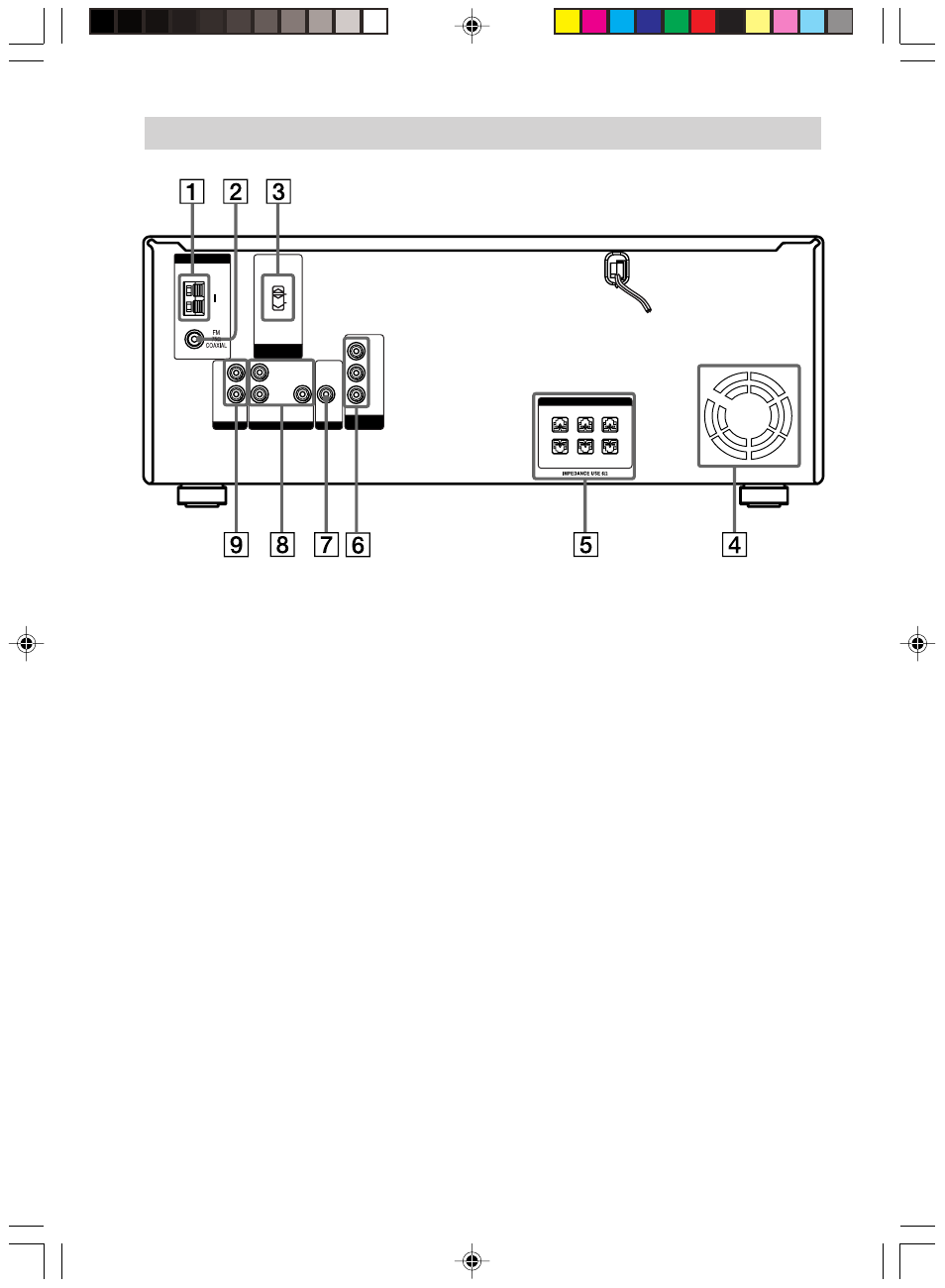

Rear Panel
L
R
y
AM
AUDIO IN VIDEO IN
FRONT R
SURR R SUB WOOFER SURR L
– + – + – +
+ – + – + –
FRONT L CENTER
SPEAKERS
VOLTAGE
SELECTOR
Y
TV
ANTENNA
120V
220V
L
R
AUDIO IN
VIDEO MONITOR
COMPONENT
VIDEO OUT
VIDEO OUT
P R /C R
P B /C B
1 AM antenna terminals (22)
2 FM 75
Ω
COAXIAL antenna jack (22)
3 VOLTAGE SELECTOR (only for
equipped models) (25)
4 Ventilation holes (fan) (74)
5 SPEAKERS jacks (20)
6 COMPONENT VIDEO OUT jacks (24)
7 MONITOR (VIDEO OUT) jack (24)
8 VIDEO (AUDIO L/R IN/VIDEO IN)
jacks (24)
9 TV (AUDIO L/R IN) jacks (24)
