Getting started
11
Installation options

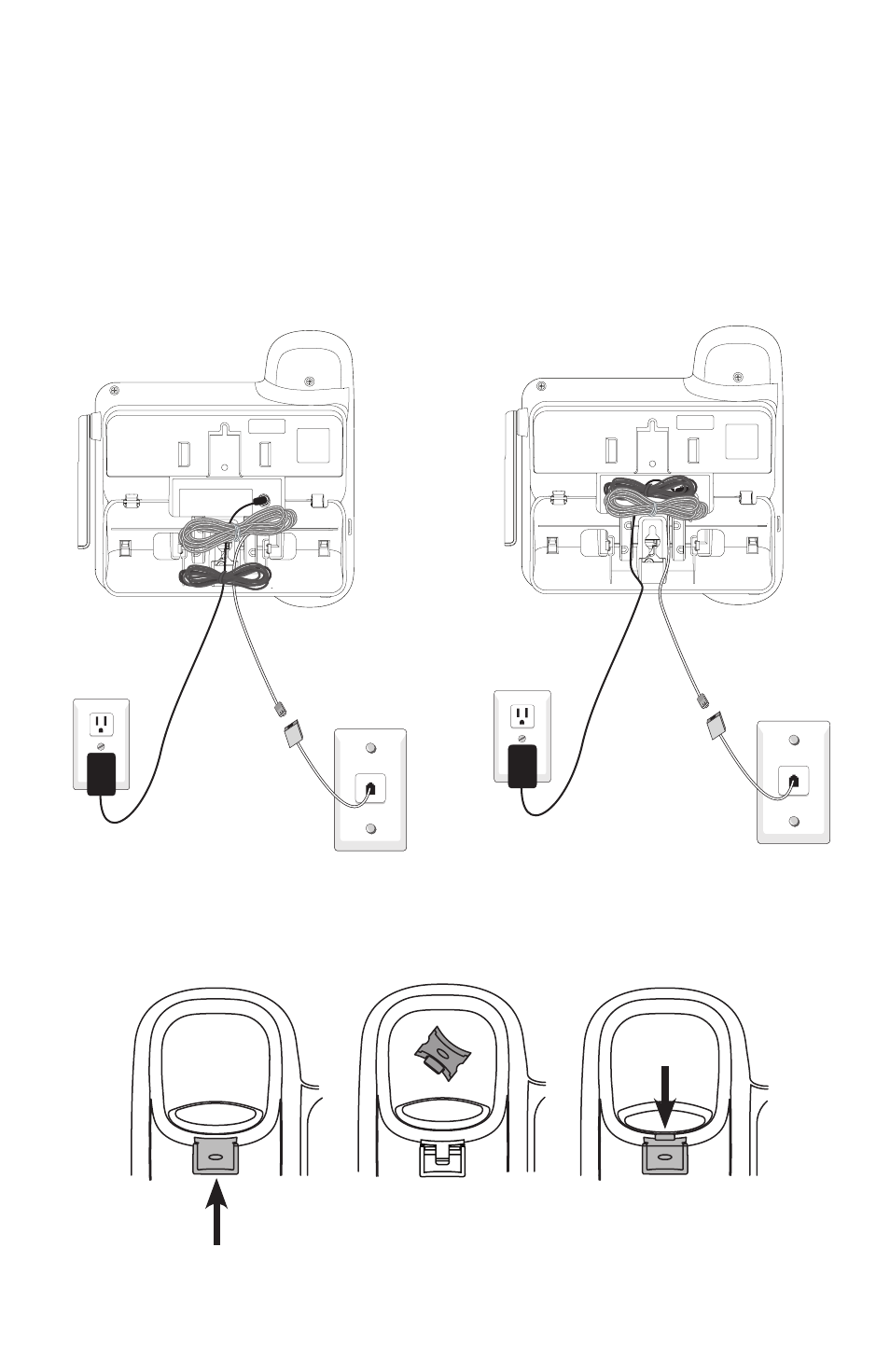

2. Connect the telephone line cord and
power adapter cord to the jacks on
the bottom of the telephone base.
Bundle the telephone cord and power
adapter cord, and secure them with a
twist tie. Plug the power adapter and
telephone line into the wall outlets.
3. Place the bundled telephone line
cord and power adapter cord into
the cavity under the telephone
base as shown below. Align the
mounting studs on the telephone
outlet plate with the mounting
holes on the bracket.
4. Remove the corded telephone handset tab from the telephone base, rotate
and replace it to hold the corded handset securely in place when telephone
base is mounted on the wall.
