Sony KP-53V90 - Manual

DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
KP-53V90
46 3/8" x 55 7/8" x 24 7/8

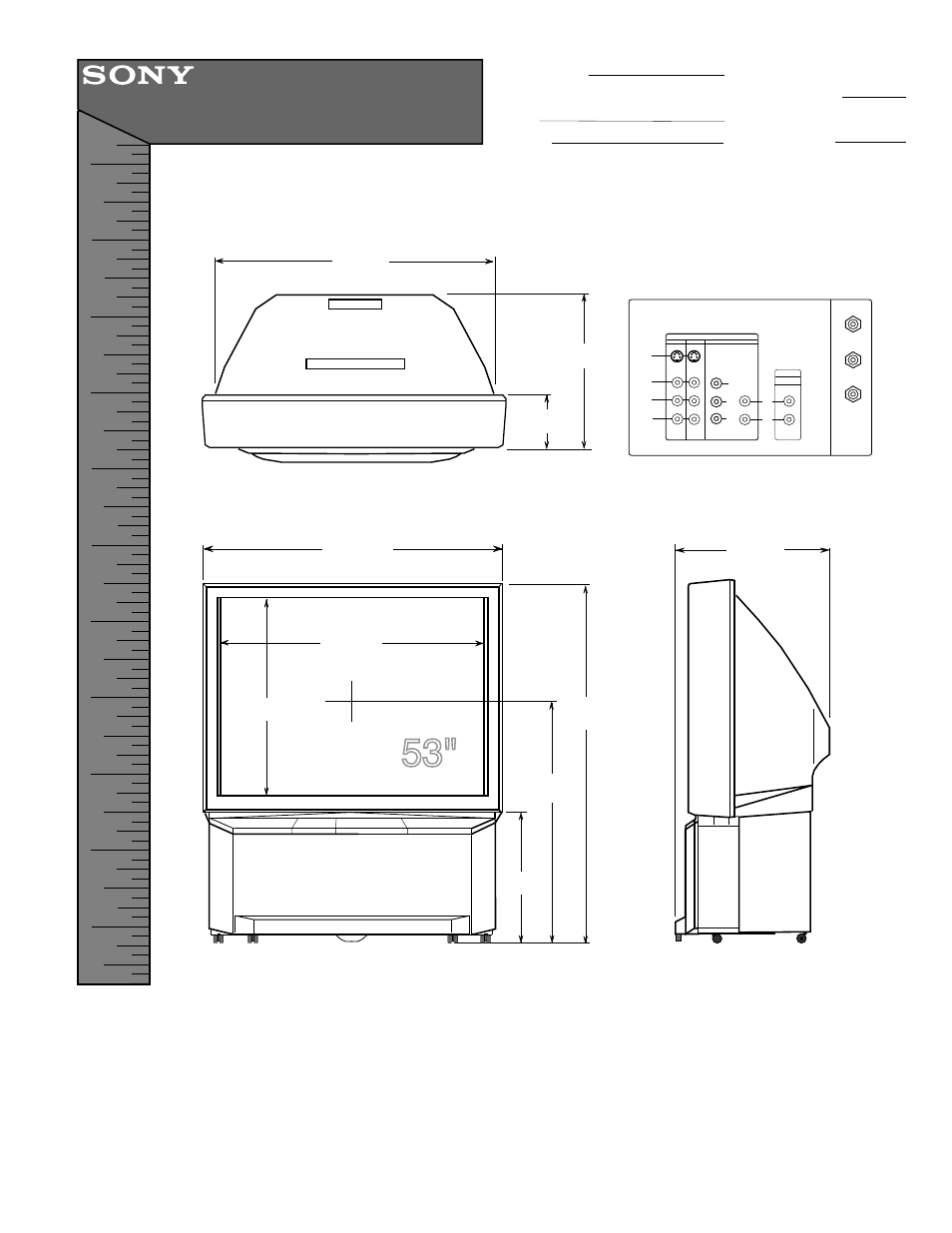

FRONT VIEW
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
120V AC
60Hz
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
53" Projection TV
145 Lbs (approx.) 170w(max)
1w(stby)
TOP VIEW
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
55 7/8
20"
42 1/8 "
31 5/8"
44 1/8 "
21 7/8"
46 3/8
37 3/4"
53"
24 7/8"
6"
JACK PACK
